Product Details:
|
| Name: | Laboratory 300L Wet Granulation Machine Wet Granulation Equipment Stainless Steel | Dimension: | 2420×1060×2150mm |
|---|---|---|---|
| Volume: | 300L | Mixing Speed: | 50-3000RPM |
| Mixing Power: | 18.5KW | Granulation Power: | 5.5Kw |
| Material: | Stainless Steel | Key Wprd: | Powder Granulator Machine |
| Highlight: | granulator machine for pharmaceuticals,pharmaceutical granulation equipments |
||
Product Description of Powder Granulator Machine
The powder raw material and adhesive in a cylinder are mixed fully at the bottom to turn into a humid soft material.Then it is cru-hed at a high speed and become uniform granules.
Product Parameters of Powder Granulator Machine
| Volume | 300L |
| Output | 30-120kgs/batch |
| Operating time | Mixing:2min Granulation:7-14min/batch |
| Size of the finished granule | Φ0.14-Φ1.5mm(12mesh-100mesh) |
| Mixing Speed | 30-220rpm |
| Mixing power | 18.5kw |
| Air compressor | 0.5m³ 0.7Mpa (prepared by buyer) |
| Dimension | 2420×1060×2150mm |
| Weight | 1650kg |
Advantages of Powder Granulator Machine
* All machine adopt Horizontal Barrel(cone) structure.
* The inner surface no dead corner,it works at sealed state and conforms to the requirement.
* Short granulating time, high efficiency and energy saving.
* Final granule uniform and the fluidization is very good. It provided ideal granule material to tablet pressing procedure.
* Compared with traditionalprocess, it can reduce 25% of binder and shorten drying time too.
* Each batch needs 2 minutes todry mixing and 1~4minutes to granulate.Compared with traditional process, its efficiency can raise 4~5times.
* It can mix uniformly even when the gravity difference between main materialand excipient is very big, without the phenomenon of delamination

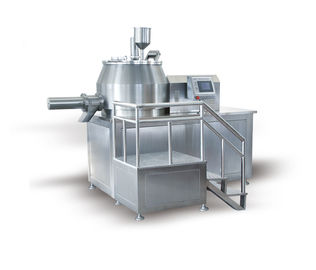

Products Show of Powder Granulator Machine
