High Efficiency Full Automatic Powder Granulator Stainless Steel Material Runs Stably

High Efficiency Full Automatic Powder Granulator Stainless Steel Material Runs Stably
High Efficiency Full Automatic Powder Granulator Stainless Steel Material Runs Stably High Efficiency Full Automatic Powder Granulator Stainless Steel Material Runs Stably

Large Image :  High Efficiency Full Automatic Powder Granulator Stainless Steel Material Runs Stably

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-FL-12
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 30 Sets per month
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 40 working days after receiving the deposit

High Efficiency Full Automatic Powder Granulator Stainless Steel Material Runs Stably

Description
Name: High Efficiency Full Automatic Powder Granulator Stainless Steel Material Runs Stably Model: SED-FL-12
Capacity: 1.5~2.0ton/h Granule Diameter: 3~8mm
Material Moisture: 1~3% Granule Intensity: ≥10~11N
Motor Power: 18.5kw Overall Dimension: 1560*800*1500mm
Material: Stainless Steel Key Word: Powder Granulator Machine
High Light:

granulator machine for pharmaceuticals

,

pharmaceutical granulation equipments

High Efficiency Full Automatic Powder Granulator Stainless Steel Material Runs Stably

Product Description of Powder Granulator Machine​

Extrusion granulation is a relatively new process for dry granulation to produce compound fertilizers. Extrusion granulation was applied to the granulation of potassium chloride in the early stage of the fertilizer field, and the granular (1-4 mm) potassium chloride required for blending the fertilizer (BB fertilizer) was basically produced by extrusion.

In recent years, extrusion granulation has been developed rapidly in China for the production of compound fertilizers.
The form of extrusion granulation can be two types of roll type and rim type. For roll type extrusion, it is first pressed into large pieces and then broken into particles, so that the device has large capacity, high particle strength and low energy consumption. Roller extrusion is widely used abroad.

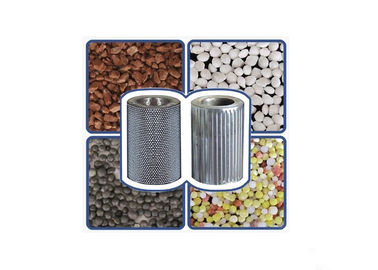

The rim type is directly formed into a shape of a groove type on the surface of the roll, and is extruded into a molded particle at a time. A lower strength of the product sometimes requires the addition of a binder. Suitable for granular fertilizers such as organic fertilizers and compound fertilizers.





Product Parameters of Powder Granulator Machine

Model SED-FL-12
Capacity 1.5~2.0ton/h
Granule Diameter 3~8mm
Material Moisture 1~3%
Granule Intensity ≥10~11N
Motor Power 18.5kw
Overall Dimension 1560*800*1500mm
remarks To make machines according to customer request available.



Feature of Powder Granulator Machine


high-platform wet granulator can technological requirements of solid preparations production. It is made of high quality Austenite stainless steel, equipped with operation platform, staircase and safety guard rail.

It adopts PLC control and variable frequency speed regulation. Technological parameters of all operation can be automatically set according to the requirements of users, and can be printed automatically to keep authentic original records.

The discharge hole of wet mixing granulator is connected to the material chamber of boiling dryer, conforming to GMP requirements of medicine production.

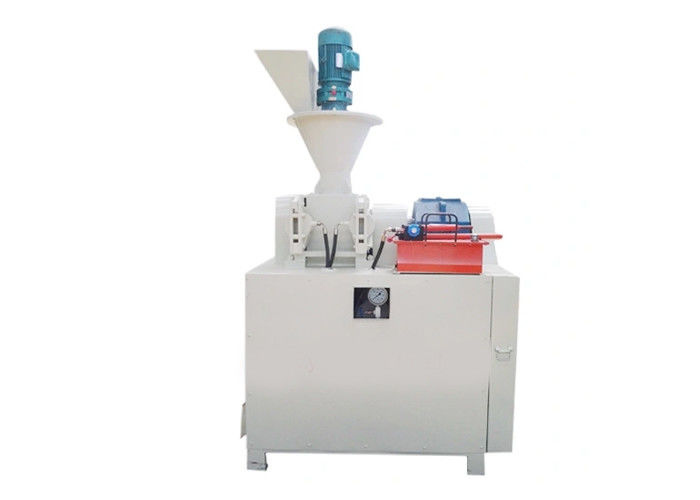

Products Show of Powder Granulator Machine
High Efficiency Full Automatic Powder Granulator Stainless Steel Material Runs Stably 0


Other Products We Manufacture:
1.Automatic Labeling Machine

2.Capsule Counting Machine

3.Pharmaceutical Machinery Equipment

4.Automatic Cartoning Machine

5.Powder Mixer Machine

6.Freeze Dry Machine

7.Automatic Packing Machine

8.Capsule Filling Machine

9.Tablet Press Machine


10.Liquid Filling Machine

High Efficiency Full Automatic Powder Granulator Stainless Steel Material Runs Stably 1High Efficiency Full Automatic Powder Granulator Stainless Steel Material Runs Stably 2High Efficiency Full Automatic Powder Granulator Stainless Steel Material Runs Stably 3High Efficiency Full Automatic Powder Granulator Stainless Steel Material Runs Stably 4High Efficiency Full Automatic Powder Granulator Stainless Steel Material Runs Stably 5


FAQ

Q1:Are You A Factory or A Trading Company
A: We Provided Perfect OEM and After-sale Service.
Q2:Where is Your Factory? How Can I Visit Your Factory?
A:Our Factory is Located on HangZhou Zhejiang Province. We Are Warmly Welcom You Visit Our Factory if You Have a Travel Plan
Q3:Can You Send Me the Video To Show The Machine Works?
A:Certainly, We Have Made Video of Every Machine
Q4:How Can I Know Your Machine Is Designed For My Product
A:You Can Send Us Samples of Your Product and We Test It On Machine
Q5:How Can I Pay My Order?
A:Usually We Accept L/C, D/A, D/P, T/T, , MoneyGram,Cash Paying Methods
Q6:Do you Have a Ce Certificate?
A:For Every Model of Machine, It Has a CE Certificated
Q7:What about install?
A. Our engineers will be sent according to your project.However,the customer will pay the economic air tickets round trip and arrange the accommodation for them.
