PLC Control 400L Powder Granulator Machine For Medicine Food Industry

Certification
China Hangzhou SED Pharmaceutical Machinery Co.,Ltd. certification
China Hangzhou SED Pharmaceutical Machinery Co.,Ltd. certification
Customer Reviews
 I would like to thank you for all your efforts to choose the correct atomizer for our spray dryer,High speed drying. The surface area of Raw Material liquid increased a lot after atomization through nebulizer, 95%-98% of moisture will be evaporated in high temperature airflow in a flash, only needs seconds time.

—— Fatih BÜYÜKEGEN

I really don't know how to thank you, you are my angel, Thank you very much. Super Fine Pulverizing this one is faster than other same power machine and is easy to operate and repaired.

——  Hamid Doroudian

I'm Online Chat Now

PLC Control 400L Powder Granulator Machine For Medicine Food Industry

PLC Control 400L Powder Granulator Machine For Medicine Food Industry
PLC Control 400L Powder Granulator Machine For Medicine Food Industry PLC Control 400L Powder Granulator Machine For Medicine Food Industry

Large Image :  PLC Control 400L Powder Granulator Machine For Medicine Food Industry

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-400SZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 30 Sets per month
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 40 working days after receiving the deposit

PLC Control 400L Powder Granulator Machine For Medicine Food Industry

Description
Name: PLC Control 400L Powder Granulator Machine For Medicine Food Industry Dimension: 2420×1060×2150mm
Weight: 1900kgs Volume: 400L
Mixing Power: 22KW Key Word: Powder Granulator Machine​
High Light:

granulator machine for pharmaceuticals

,

pharmaceutical granulation equipments

PLC Control 400L Powder Granulator Machine For Medicine Food Industry



Product Description of Powder Granulator Machine



Because of powder granulating, the uidity can be improved and the powder dust can be reduced.


Because of powder granulating, the solubility is improved


The procedures of mixing, granulating and drying can be finished in one step(granulating through one step)


Because the atomizer for adhesive adapts multi-uid spray lance, the particle is uniform and the percent of pass of finished products is raised greatly .


There is no dead corner in equipment. It is quick and convenient to feeding and discharge.


The equipment is clean through washing.





Product Parameters of Powder Granulator Machine​

Volume 400L
Output 50-150kgs/batch
Operating time Mixing:2min Granulation:7-14min/batch
Size of the finished granule Φ0.14-Φ1.5mm(12mesh-100mesh)
Mixing Speed 25-220rpm
Mixing power 22kw
Granulation Speed 50-3000rpm
Granulation power 7.5kw
Air compressor 0.5m³ 0.7Mpa (prepared by buyer)
Inlet of cooling water and compressed air Φ10mm
Height of the output 985mm
Dimension 2420×1060×2150mm
Weight 1900kg







Advantages of Powder Granulator Machine​



high-platform wet granulator can technological requirements of solid preparations production. It is made of high quality Austenite stainless steel, equipped with operation platform, staircase and safety guard rail.



It adopts PLC control and variable frequency speed regulation. Technological parameters of all operation can be automatically set according to the requirements of users, and can be printed automatically to keep authentic original records.



The discharge hole of wet mixing granulator is connected to the material chamber of boiling dryer, conforming to GMP requirements of medicine production.

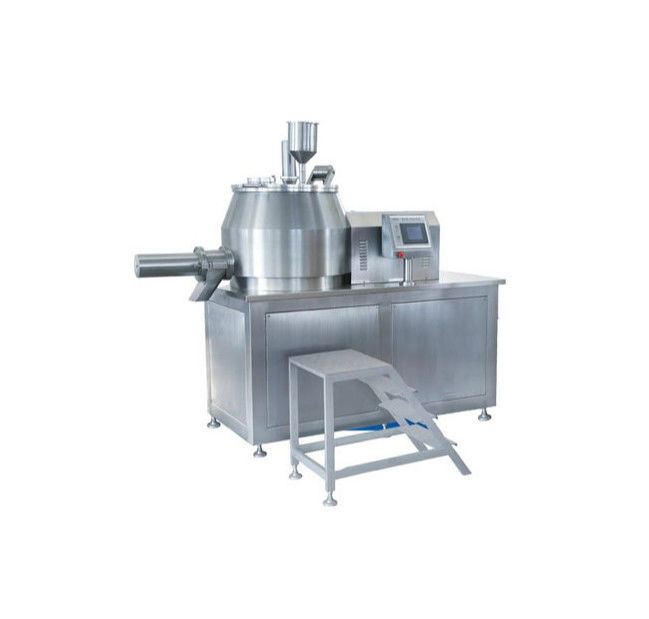

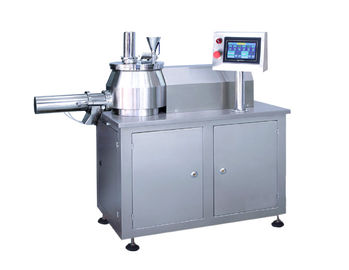

Products Show of Powder Granulator Machine

PLC Control 400L Powder Granulator Machine For Medicine Food Industry 0

Other Products We Manufacture:

1.Automatic Labeling Machine



2.Capsule Counting Machine



3.Pharmaceutical Machinery Equipment



4.Automatic Cartoning Machine



5.Powder Mixer Machine



6.Freeze Dry Machine



7.Automatic Packing Machine



8.Capsule Filling Machine



9.Tablet Press Machine



10.Liquid Filling Machine





PLC Control 400L Powder Granulator Machine For Medicine Food Industry 1PLC Control 400L Powder Granulator Machine For Medicine Food Industry 2PLC Control 400L Powder Granulator Machine For Medicine Food Industry 3PLC Control 400L Powder Granulator Machine For Medicine Food Industry 4PLC Control 400L Powder Granulator Machine For Medicine Food Industry 5


FAQ

Q1:Are You A Factory or A Trading Company

A: We Provided Perfect OEM and After-sale Service.

Q2:Where is Your Factory? How Can I Visit Your Factory?

A:Our Factory is Located on HangZhou Zhejiang Province. We Are Warmly Welcom You Visit Our Factory if You Have a Travel Plan

Q3:Can You Send Me the Video To Show The Machine Works?

A:Certainly, We Have Made Video of Every Machine

Q4:How Can I Know Your Machine Is Designed For My Product

A:You Can Send Us Samples of Your Product and We Test It On Machine


Q5:How Can I Pay My Order?

A:Usually We Accept L/C, D/A, D/P, T/T, , MoneyGram,Cash Paying Methods

Q6:Do you Have a Ce Certificate?

A:For Every Model of Machine, It Has a CE Certificated

Q7:What about install?

A. Our engineers will be sent according to your project.However,the customer will pay the economic air tickets round trip and arrange the accommodation for them.
