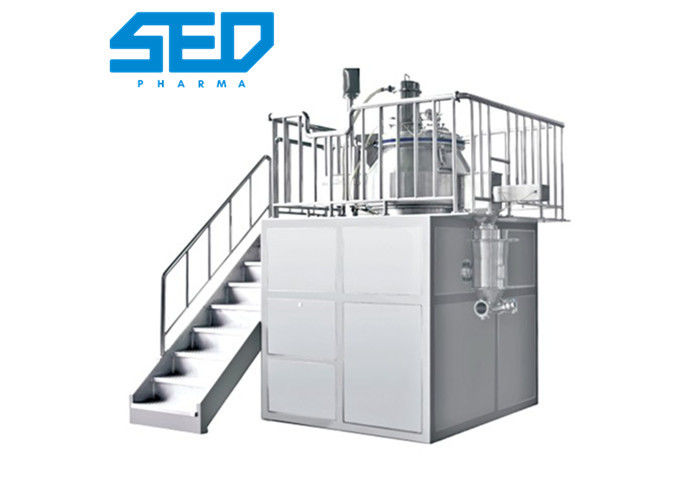

Touch Screen Pharmaceutical Granulation Equipments Wet Powder Rapid Mixer Granulator

Touch Screen Pharmaceutical Granulation Equipments Wet Powder Rapid Mixer Granulator
Touch Screen Pharmaceutical Granulation Equipments Wet Powder Rapid Mixer Granulator Touch Screen Pharmaceutical Granulation Equipments Wet Powder Rapid Mixer Granulator

Large Image :  Touch Screen Pharmaceutical Granulation Equipments Wet Powder Rapid Mixer Granulator

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-600SZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 35 Days after receiving the deposit
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 25 Sets per Month

Touch Screen Pharmaceutical Granulation Equipments Wet Powder Rapid Mixer Granulator

Description
Name: Touch Screen Pharmaceutical Granulation Equipments Wet Powder Rapid Mixer Granulator Total Volume: 600L
Raw Material Input Volume: 150-440L Raw Material Input Capacity: 75-220kgs Per Batch (material Density 0.5g)
Operating Time: Mixing 8 Minutes Granulation: 15-20min/batch Mixing Speed: 20-200rpm
Dimension: 2980×1200×2500mm Weight: 2200kgs
Key Word: Mixer Granulator Machine​ Material: Stainless Steel
High Light:

pharmaceutical granulation equipments

,

dry granulation equipment

Touch Screen Pharmaceutical Granulation Equipments Wet Powder Rapid Mixer Granulator



Products Parameters of Mixer Granulator Machine​

Total Volume 600L
Raw Material Input Volume 150-440L
Raw Material Input Capacity 75-220kgs/batch(material density 0.5g)
Operating time Mixing:8min Granulation:15-20min/batch
Size of the finished granule Φ0.14-Φ1.5mm(12mesh-100mesh)
Mixing Speed 20-200rpm
Mixing power 30kw
Granulation Speed 50-3000rpm
Granulation power 11kw
Air compressor 0.5m³ 0.7Mpa (prepared by buyer)
Inlet of cooling water and compressed air Φ10mm
Height of the output 1150mm
Dimension 2980×1200×2500mm
Weight 2200kg





Working Principles of Mixer Granulator Machine



In the cylinder (conical) container, powder materials and binder will be mixed into moist soft materials by the mixed paddles at the bottom. Then they will be cutted into uniform wet-particles by the side high-speed smash paddles



Purpose of Mixer Granulator Machine



The granulator of wet particles of powder injection binder is in the fields of pharmacy, food, chemical industry, etc.



Feature and simple introduce:

  • It is the structure of horizontal cylinder (cone).
  • Full sealed driving shaft, to use water when cleaning.
  • Fluidization granulation, the finished granules are similar to roundness with good liquidity.
  • Compared with traditional process, it can reduce 25% binder and the dry time can be shortened.
  • Each batch of materials will be dry-mixed for 2 minutes and be granulated for 1-4 minutes. Compared with traditional process, it has improved by 4-5 times.
  • All the processes of dry-mixing & wet-mixing & granulating are finished in a closed vessel. So that it has reduced the process and also compiles with GMP standard.
  • Whole operation has the strict safety precautions.

Products Show of Mixer Granulator Machine

Touch Screen Pharmaceutical Granulation Equipments Wet Powder Rapid Mixer Granulator 0



Application of Mixer Granulator Machine

High-speed mixing granulator is an efficient equipment that can mix different powder materials and granulate granules in one program. Widely used in medicine, food, chemical and other industries.





Touch Screen Pharmaceutical Granulation Equipments Wet Powder Rapid Mixer Granulator 1



Touch Screen Pharmaceutical Granulation Equipments Wet Powder Rapid Mixer Granulator 2

Touch Screen Pharmaceutical Granulation Equipments Wet Powder Rapid Mixer Granulator 3Touch Screen Pharmaceutical Granulation Equipments Wet Powder Rapid Mixer Granulator 4Touch Screen Pharmaceutical Granulation Equipments Wet Powder Rapid Mixer Granulator 5Touch Screen Pharmaceutical Granulation Equipments Wet Powder Rapid Mixer Granulator 6Touch Screen Pharmaceutical Granulation Equipments Wet Powder Rapid Mixer Granulator 7
