Laboratory Use Single Punch Tablet Press Equipment For Small Batch Production

Laboratory Use Single Punch Tablet Press Equipment For Small Batch Production
Laboratory Use Single Punch Tablet Press Equipment For Small Batch Production Laboratory Use Single Punch Tablet Press Equipment For Small Batch Production Laboratory Use Single Punch Tablet Press Equipment For Small Batch Production Laboratory Use Single Punch Tablet Press Equipment For Small Batch Production Laboratory Use Single Punch Tablet Press Equipment For Small Batch Production

Large Image :  Laboratory Use Single Punch Tablet Press Equipment For Small Batch Production

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-5DY
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 30 Days after receiving the deposit
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 30 Sets Per Month

Laboratory Use Single Punch Tablet Press Equipment For Small Batch Production

Description
Name: Laboratory Use Single Punch Tablet Press Equipment For Small Batch Production Max Compression: 50KN
Power: 750W Weight: 125kg
Condition: New Dimension: 700*400*800mm
Capacity: 4500 Tablets Per Hour Max Diameter: 20mm
Material: Stainless Steel Key Word: Tablet Press Machine
Highlight:

tablet press equipment

,

tablet compression machine

Laboratory Use Single Punch Tablet Press Equipment For Small Batch Production



Performance of Tablet Press Machine



Single Punch Tablet Pressing Machine is a simple mechanical machine that can be used to compress powder into tablets that are uniform in size, shape and weight. The machine is used for a wide range of applications from cosmetics and pharmaceuticals to cleaning products. There is one upper and lower punch and die set, and filling depth of material and thickness of pressed tablet can be adjusted. Different products can be pressed by changing different molds.



Product Parameters of Tablet Press Machine​

Model SED-5DY
Max. Pressure 50KN
Max. Dia. Round: Φ20
Max. Filling Depth 18mm
Max. Thickness 7.5mm
Capacity 4500pcs/hour
Motor Power 750W.1400r/min 110V 50Hz
Overall Dimension

700*400*800mm

Weight 125kg

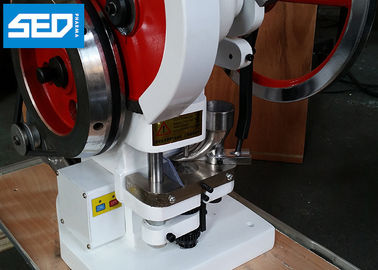

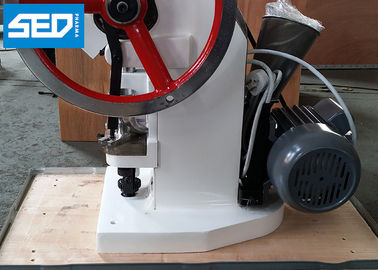

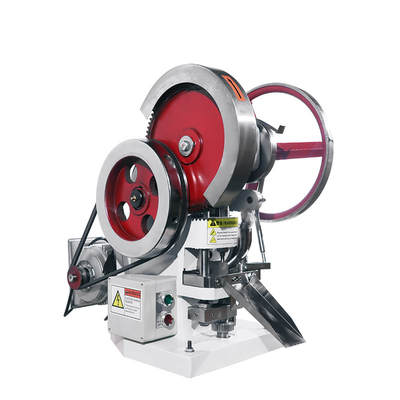

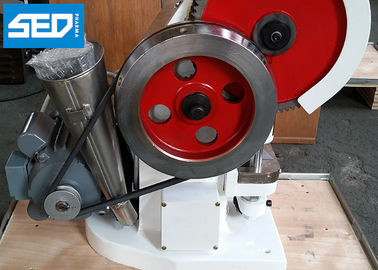

Show of Tablet Press Machine

Laboratory Use Single Punch Tablet Press Equipment For Small Batch Production 0



Application of Tablet Press Machine

Suitable for laboratories and small tablet production and processing industries. It is a small desktop micro-motion continuous press. The machine comes with a die, and by changing the die, tablets of different shapes and sizes can be pressed. Material filling depth and tablet thickness can be adjusted.

Laboratory Use Single Punch Tablet Press Equipment For Small Batch Production 1
