PLC Control Fully Automatic Capsule Filling Machine With Germany Siemens Brand Touch Screen

PLC Control Fully Automatic Capsule Filling Machine With Germany Siemens Brand Touch Screen

  • High Light

    capsule filling device

    ,

    automatic capsule filler

  • Name
    PLC Control Fully Automatic Capsule Filling Machine With Germany Siemens Brand Touch Screen
  • Application
    Powder
  • Suit For Capsule Size
    00#-5#and Safety Capsule A-B
  • Max. Speed
    2000 Capsules Per Minute
  • Weight
    2200kgs
  • Quantity Of Mould Bores
    18 Pcs
  • Filling Accuracy
    Higher Than 99%
  • Control Mode
    PLC Control
  • Place of Origin
    China
  • Brand Name
    SED Pharma
  • Certification
    CE
  • Model Number
    SED-2000J
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Wooden Case
  • Delivery Time
    40 Working days after receiving advanced payment or original L/C
  • Payment Terms
    T/T,L/C, MoneyGram,Cash
  • Supply Ability
    30 Sets Per Month

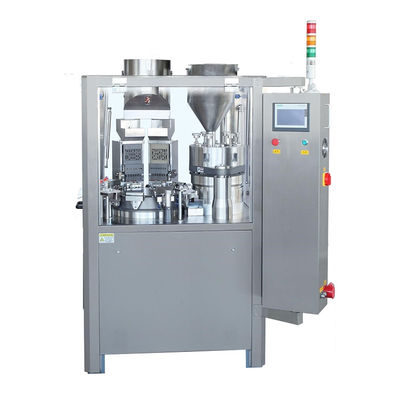

PLC Control Fully Automatic Capsule Filling Machine With Germany Siemens Brand Touch Screen

PLC Control Fully Automatic Capsule Filling Machine With Germany Siemens Brand Touch Screen



Detailed Parameters of Capsule Filling Machine ​



Model: SED-2000
Capacity: 2000capsules/minute
Manchine suitable for: Capsule Size#00 to 5
Power supply: 380V 50Hz (it can be changed depend on your requirement)
Power consume: 11kw
Noise standard: ≤75dB(A)
Weight: 2200kgs
Overail dimension: 1170*1120*2200mm



Product Description of Capsule Filling Machine



SED-2000J automatic capsule filler processes the products for optimal productivity up to 200,000 capsules per hour, featuring low-maintenance operation, minimal downtime, and overall dependable production. Powder dosing uses the 5 stage tamping technology for an enhanced accuracy. Filling of pellets is available.



Capsules from the bunker are fed into the orienting device along the vertical guide.


Then they are transferred into special cells on the rotor. Here the capsule is separated, after what the bottom part comes to the filling position.



After filling the bottom part with the material, on next positions the non-separated capsules are rejected, and the filled bottom parts are joined with top parts, counted and taken away into the receiving box.



Working Principle of Capsule Filling Machine



The working principle of the automatic capsule filling machine is divided into two parts, which are the movement of the capsule and the filling of the medicine:


1. Movement of the capsule
During the filling process of the intermittent capsule filling machine, the movement of the capsule depends on the indexing box for intermittent and discontinuous rotation. The filling volume of the capsule is mainly determined by the volume of the metering



disc hole. The hollow capsule is in the capsule hopper, the main board moves up and down, the capsule enters the capsule guide groove by its own gravity, and then the horizontal fork and the vertical plug make the capsule cap upward and the



capsule body downward into the upper and lower modules. The capsule body and capsule cap are separated under the action of the device, and then the module enters the powder filling station.


2. Drug filling
The sensor in the powder holding ring controls the screw feeding rod above it, and the medicine is continuously added to make the height of the powder in the powder holding ring constant. position, push the drug column into the capsule body. After that, it



enters into the capsule rejection, capsule locking, finished capsule discharge, module cleaning station in turn, and then enters a new round of station cycle, and the cycle begins again and again.



Main Features of Capsule Filling Machine



1. Function for filling powder, pellet, granule, pellet into capsule.


2. Automatic detect and diagnosis of lack of material, capsule and mechanical trouble, make alarm and stop automatically.


3. Displaying in-time speed and accumulative output.


4. Available for electronic signature and recording, and Industrial ethernet.



Product Show of Capsule Filling Machine

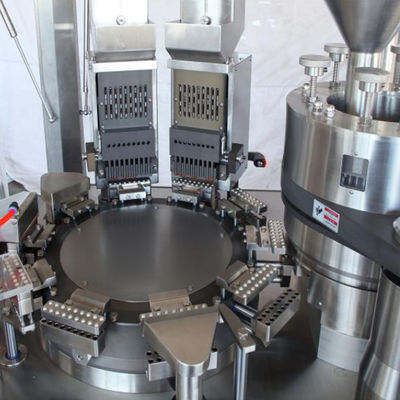

PLC Control Fully Automatic Capsule Filling Machine With Germany Siemens Brand Touch Screen 0

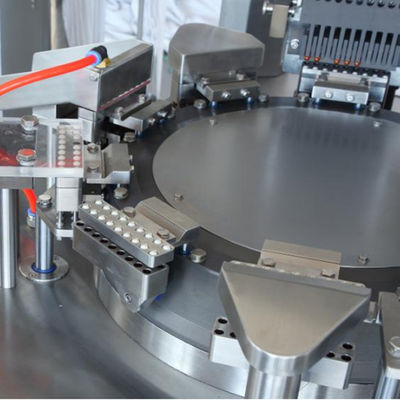

PLC Control Fully Automatic Capsule Filling Machine With Germany Siemens Brand Touch Screen 1



Application of Capsule Filling Machine

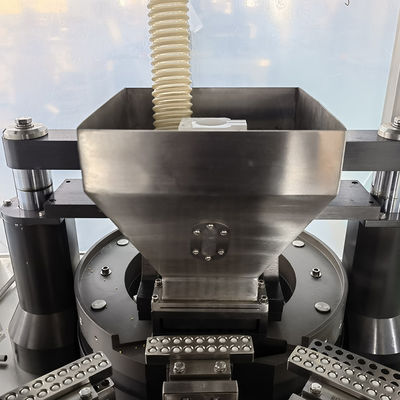

PLC Control Fully Automatic Capsule Filling Machine With Germany Siemens Brand Touch Screen 2
