Product Details:
|
| Name: | Medium Speed Type Candy Tablet Press Machine With Touch Screen | Model No: | SED-525-29Y-D |
|---|---|---|---|
| Number Of Punch Die: | 33 | Max. Thickness Of Tablet: | 6mm |
| Max Diameter: | 13mm | Max Pressure: | 80KN |
| Max Filling Depth: | 15mm | Capacity: | 130000 Pcs/h |
| Material: | Stainless Steel | Key Word: | Tablet Press Machine |
| Highlight: | tablet press equipment,tablet compression machine |
||
Medium Speed Type Candy Tablet Press Machine With Touch Screen
Performance of Candy Tablet Press Machine
SED-420-33Y-B Automatic Rotary Tablet Press is a double-press multifunctional automatic rotary continuous tablet press machine, which presses granular raw materials into tablets. It is mainly used in the production of the pharmaceutical industry, and is also used in chemical, food, electronics and other industrial sectors. It can press special-shaped tablets, double-layer tablets, circular tablets, etc. according to customer requirements.
Product Parameters of Candy Tablet Press Machine
| Number of Punch Die | 33 |
| Capacity | 130000 pcs/h |
| Max. Working Pressure | 80KN |
| Max. Diameter of Tablet | 13mm |
| Max. Thickness of Tablet | 6mm |
| Max. Filling Depth | 15mm |
| Turret Speed | 14-37rpm |
| Motor Power | 4KW |
| Net Weight | 1700kg |
| Overall Dimension | 1240*980*1690mm |
Main Features of Candy Tablet Press Machine
The outer casing is fully enclosed, and the material is made of stainless steel. The inner table is also made of stainless steel, which can maintain the surface gloss and prevent cross-contamination, in line with GMP requirements.
Equipped with plexiglass perspective window which could help to observe the status of tablet pressing. The transparent protective cover could be fully opened, easy to clean and maintain.
All monitors and operating components are in good order.
Applying with frequency changing, speed regulating apparatus to do electricity regulation. The convenient operation and smooth revolving are safe and correct.
Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically.
Equipped with touch screen, easy to operate.
Transmitting system is sealed in the oil box under the main machine which is a separate component .No pollution and easy to send out heat and resist grinding.
Powder-absorbing apparatus could absorb the powder in the tablet-pressing room.

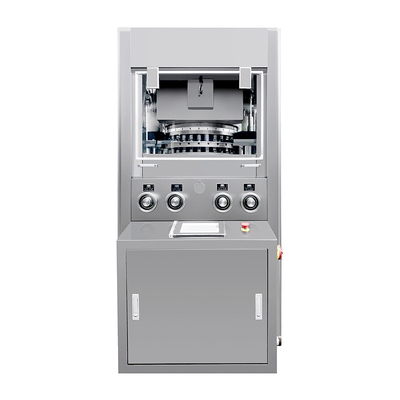

Show of Candy Tablet Press Machine
Application of Candy Tablet Press Machine
Mainly used in the pharmaceutical industry and chemical, food, electronics and other industries.
