Product Details:
|
| Name: | Automatic Powder Capsule Filling Machine With Stainless Steel 120000 Pcs/h | Model: | SED-2000J-S |
|---|---|---|---|
| Output(pcs/min): | 120000pcs/h | Size Of Capsule: | 00#-4# |
| Total Power: | 8KW | Vacuum Degree: | -0.02～-0.06MPa |
| Overall Dimensions: | 1400*1370*2000mm | Key Word: | Capsule Filling Machine，Automatic Capsule Filling Machine |
| Weight(kg): | 1350kg | Capsule Filling Accuracy: | ≥99.9% |
| Highlight: | Automatic Powder Capsule Filling Machine,120000 Pcs/h Capsule Filling Machine,Stainless Steel Capsule Filling Machine |
||

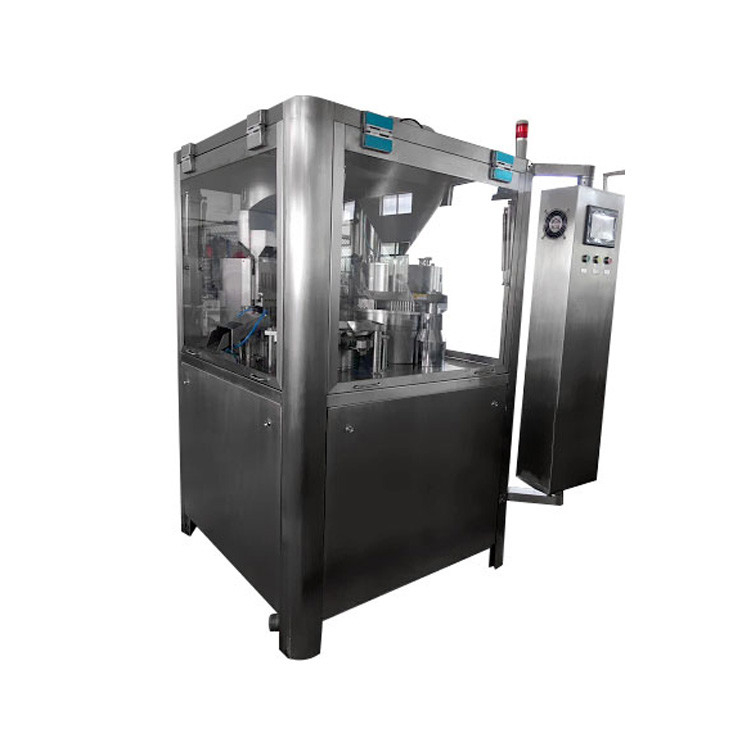

Automatic Powder Capsule Filling Machine With Stainless Steel 120000 Pcs/h
Product Description of Capsule Filling Machine
SED-2000J-S automatic capsule filling machine is a device for filling powder, granules or small pieces into empty capsules. The equipment adopts hole plug filling, intermittent operation, frequency conversion speed regulation, suitable for powder or pellet capsule medicines.
It can automatically complete the work of sowing, dividing, filling, locking (removing waste), and outputting finished products. The production process fully complies with the GMP specification.
Parameter of Capsule Filling Machine
| MODEL |
SED-2000J-S |
| Filling Dosage | Powder, Pellets, Tablet |
| Capsule Size |
00#-4# |
| Max Output (capsules/hour) |
120000pcs/h |
| Power | 380V 50Hz 8KW |
| Noise Index |
≤75dBA |
| Overall Dimension (mm) |
1400*1370*2000mm |
| Weight (kg) |
1350kg |
Working Principle of Capsule Filling Machine
The working principle of the automatic capsule filling machine is divided into two parts, which are the movement of the capsule and the filling of the medicine:
1. Movement of the capsule
During the filling process of the intermittent capsule filling machine, the movement of the capsule depends on the indexing box for intermittent and discontinuous rotation. The filling volume of the capsule is mainly determined by the volume of the metering
disc hole. The hollow capsule is in the capsule hopper, the main board moves up and down, the capsule enters the capsule guide groove by its own gravity, and then the horizontal fork and the vertical plug are used to make the capsule cap upward and
the capsule body downward into the upper and lower modules. The capsule body and capsule cap are separated under the action of the device, and then the module enters the powder filling station.
2. Drug filling
The sensor in the powder holding ring controls the screw feeding rod above it, and the medicine is continuously added to make the height of the powder in the powder holding ring constant. position, push the drug column into the capsule body. After that, it
enters into the capsule rejection, capsule locking, finished capsule discharge, and module cleaning stations in turn, and then enters a new round of station cycle, and the cycle begins again and again.
Trait of Capsule Filling Machine
1. The lower cam design is adopted to increase the pressure atomizing oil pump to keep the lubrication in the cam groove, reduce wear and prolong the service life of components.
2. Adopt touch screen control display, stepless frequency conversion speed regulation, digital display to achieve convenient operation, eye-catching and intuitive.
3. All parts in contact with medicines are made of stainless steel accessories, plexiglass fully enclosed workbench, with dust collector.
4. Based on the lower plane of the metering plate, the three-dimensional adjustment mechanism has a uniform gap, which ensures the difference of the filling amount, the measurement is accurate, and the control is within ±3.5%.
5. Added design of capsule control switch (control outside the body, safer and more convenient).
Product Show of Capsule Filling Machine
Product Details of Capsule Filling Machine
Application of Capsule Filling Machine
