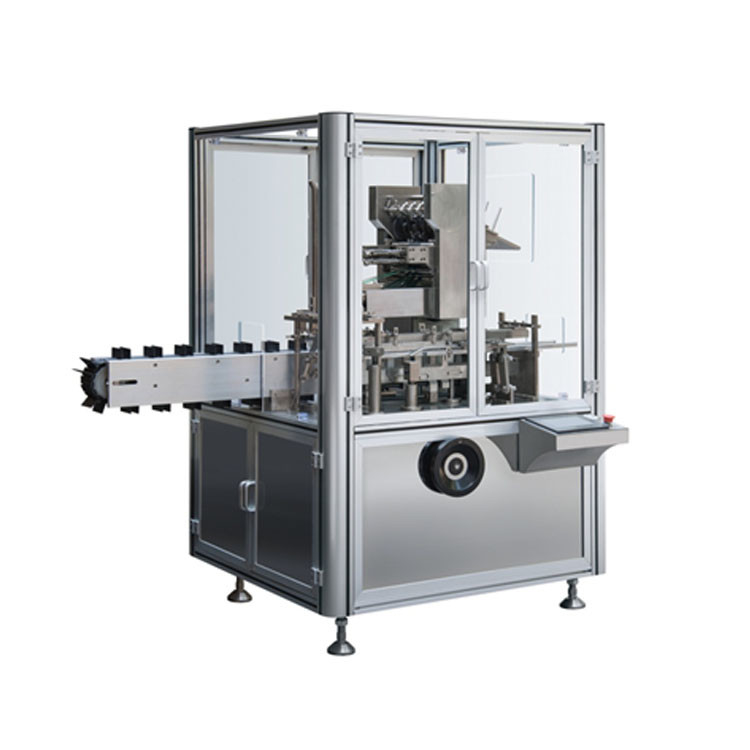

Product Details:
|
| Name: | Stainless Steel Vertical Automatic Cartoning Machine 60-80 Boxes /min | Power: | 380V 50HZ |
|---|---|---|---|
| Motor Power: | 1.5kw | Machine Dimension(L×W×H): | 1200㎜×990㎜×1700㎜ |
| Machine Weight: | 1100kg | Air Consumption: | 120-160L/min |
| Working Pressure: | ≥0.6mpa | Key Word: | Automatic Cartoning Machine,Vertical Automatic Cartoning Machine |
| Highlight: | Vertical Automatic Cartoning Machine,80 Boxes / min Automatic Cartoning Machine,60 Boxes / min Automatic Cartoning Machine |
||
Product Introduction of Cartoning Machine
SED-80LZH-C automatic cartoning machine is a high-tech product integrating light, electricity, gas and machine, which greatly improves the performance and work efficiency of the equipment, realizes the requirements of fast cartoning, and still maintain a stable and reliable state when working fast.
This model is suitable for automatic feeding and packing of various types and specifications of items (it can also be bottled or packed with aluminum-plastic panels). The feeding mechanism is easy to adjust, and the number of editions to be boxed can be arbitrarily by touch screen operation. The whole process is completed automatically such as online material transportation and testing, manual folding (1 to 4 folding and transmission), material into the box, stamping batch number, paper tongue sealing at both ends of the carton (also applicable to hot melt glue), missing material removal and finished product output, etc.
Machine Parameters of Cartoning Machine
| Model | SED-80LZH-C | |
| Encasing speed | 60-80 boxes /min | |
| Box | Quality requirement | 250-350g/㎡【Base on carton size】 |
| Dimension range(L×W×H) | (65-150)mm×(30-85)mm×(12-45)mm | |
| Leaflet | Quality requirement | 60-70g/㎡ |
| Unfolded leaflet specification | 130㎜× 90㎜ | |
| Fold range | 【1-4】Fold | |
| Compressed air | Working pressure | ≥0.6mpa |
| Air consumption | 120-160L/min | |
| Power supply | 380V 50HZ | |
| Main motor power | 1.5kw | |
| Machine dimension(L×W×H) | 1200㎜×990㎜×1700㎜ | |
| Machine weight | 1100kg | |
Show of Cartoning Machine
Features of Cartoning Machine
1. International famous brand of electrical component such as PLC, touch screen and frequency inverters, etc.
2. Adopt human-machine operation system.
3. Automatically stop when machine is overload.
4. Automatically reject lacking of package product and leaflet.
5. Automatically display trouble, alarm and count finished products.
6. Stable performance, operation is easy.
Application of Cartoning Machine
The automatic cartoning machine is suitable for the packaging of blisters, bottles, vials, pillow bags, toothpaste, etc. in the industries of medicine, food, daily chemicals, hardware and electrical appliances.
