Small Experimental Spray Pharmaceutical Dryers With High Efficiency

Certification
China Hangzhou SED Pharmaceutical Machinery Co.,Ltd. certification
China Hangzhou SED Pharmaceutical Machinery Co.,Ltd. certification
Customer Reviews
 I would like to thank you for all your efforts to choose the correct atomizer for our spray dryer,High speed drying. The surface area of Raw Material liquid increased a lot after atomization through nebulizer, 95%-98% of moisture will be evaporated in high temperature airflow in a flash, only needs seconds time.

—— Fatih BÜYÜKEGEN

I really don't know how to thank you, you are my angel, Thank you very much. Super Fine Pulverizing this one is faster than other same power machine and is easy to operate and repaired.

——  Hamid Doroudian

I'm Online Chat Now

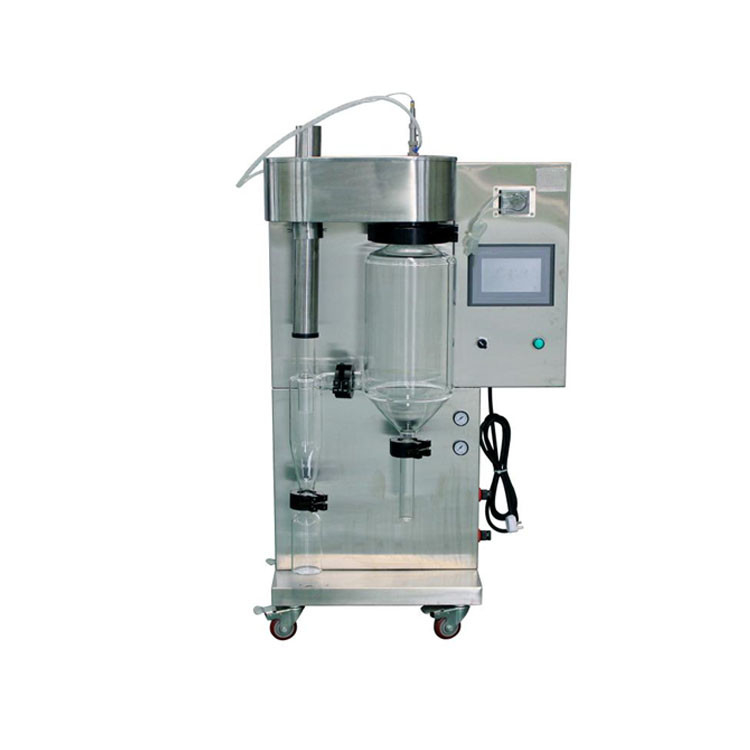

Small Experimental Spray Pharmaceutical Dryers With High Efficiency

Small Experimental Spray Pharmaceutical Dryers With High Efficiency
Small Experimental Spray Pharmaceutical Dryers With High Efficiency

Large Image :  Small Experimental Spray Pharmaceutical Dryers With High Efficiency

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-2PG-Z
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 50-60 Days after receiving the deposit
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 30 Sets per month

Small Experimental Spray Pharmaceutical Dryers With High Efficiency

Description
Name: Small Experimental Spray Pharmaceutical Dryers With High Efficiency Maximum Processing Capacity: 1500ML-2000ML
Electricity (kw): 4Kw Diameter Of Drying Chamber(mm): 220
Dimension(mm)(L×W×H): 800×600×1300 Power Supply   : 220V
Installation Weight (reference): 100Kg Key Word: Spraying Drying Machine, Benchtop Spray Dryer
High Light:

Experimental Spray Pharmaceutical Dryers

,

spraying drying machine

,

benchtop spray dryer

Small Experimental Spray Pharmaceutical Dryers With High Efficiency​





Product Description of Spraying Drying Machine



Experimental spray dryer main application in universities, research institutes and food, pharmaceutical and chemical enterprises laboratory production of micro-particle powder, for all solutions such as emulsions, suspensions with broad-spectrum applicability, for the drying of heat-sensitive substances such as biological products, biological pesticides, enzyme preparations, etc



because the sprayed material is only sprayed into a mist size particles when the high temperature, so Only instant heat, can keep these active materials in the dry still maintain its active ingredients are not destroyed.





Product Parameters of Spraying Drying Machine

name Small Experimental Spray Pharmaceutical Dryers With High Efficiency

Experimental Spray Dryer

SED-2PG-Z

Maximum processing capacity

1500ML-2000ML

Min. feed volume

80ml

Diameter of drying chamber(mm)

220

Electricity (kw)

4Kw

Dimension(mm)(L×W×H)

800×600×1300

Installation weight (reference)

100Kg



Advantages of Spraying Drying Machine

1) Refined nozzle, high efficiency.



2) Color LCD touch screen parameter display: inlet temperature/outlet temperature/peristaltic pump speed/air volume/through-needle frequency.



3) Full-automatic control: one key to turn on the machine, after setting the spraying process parameters, the temperature reaches the predetermined temperature, the peristaltic pump starts by itself, the running animation is displayed on the touch screen, and the running process is clearly shown; when shutting down the machine, just press the stop button, and the machine is automatically and safely shut down.



4) Manual control: If you need to adjust the process parameters in the experimental process, you can easily switch to the manual state, the entire experimental process color touch screen dynamic display (animation).



5) With nozzle cleaner (through the needle), in the nozzle is blocked, will automatically clear, the frequency of the needle can be automatically adjusted.



6) Shutdown protection function: shutdown simply by pressing the stop button, the machine in addition to the fan immediately stop running, to ensure that the equipment will not be mistakenly operated (forced to shut down the fan) and cause the heating part to burn out.



7) Spraying, drying and collecting system is made of transparent high quality high borosilicate heat-resistant glass material, which makes the drying process in a pollution-free environment.



8) Built-in imported full oil-free air compressor, the particle size of the spray powder is normally distributed, very good fluidity, very low noise, less than 60db.



9) The atomization structure of two-fluid spray, the whole machine is made of high quality stainless steel material, compact design, no need for accessory equipment.



10) The design of drying temperature control adopts real-time regulation PID thermostat control technology, so that the whole temperature zone temperature control is accurate, heating temperature control accuracy ± 1 ℃.



11) In order to keep the sample pure, it is equipped with inlet air filter.



12) The feeding volume can be adjusted by feeding peristaltic pump, and the minimum sample volume can reach 80ml.



13) The finished dry powder after drying has a more uniform granularity, more than 95% of the dry powder is in the same granularity range.



14) For viscous materials, there is a nozzle cleaner (through-needle), which will automatically clear the nozzle when it is blocked, and the frequency of through-needle can be adjusted automatically.



15) The upgraded atomization system effectively solves the problem of adhesion of certain sticky materials in the cyclone. It causes the material to accumulate in the cyclone separator for a long time.



Products Show of Spraying Drying Machine

Small Experimental Spray Pharmaceutical Dryers With High Efficiency 0
