Laboratory Suppository Filling And Sealing Machine 3000—3600 Pcs/H

Certification
China Hangzhou SED Pharmaceutical Machinery Co.,Ltd. certification
China Hangzhou SED Pharmaceutical Machinery Co.,Ltd. certification
Customer Reviews
 I would like to thank you for all your efforts to choose the correct atomizer for our spray dryer,High speed drying. The surface area of Raw Material liquid increased a lot after atomization through nebulizer, 95%-98% of moisture will be evaporated in high temperature airflow in a flash, only needs seconds time.

—— Fatih BÜYÜKEGEN

I really don't know how to thank you, you are my angel, Thank you very much. Super Fine Pulverizing this one is faster than other same power machine and is easy to operate and repaired.

——  Hamid Doroudian

I'm Online Chat Now

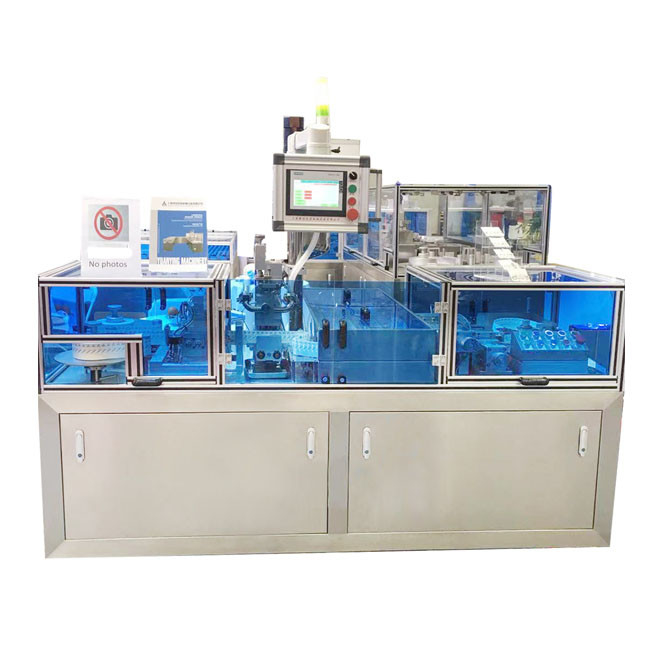

Laboratory Suppository Filling And Sealing Machine 3000—3600 Pcs/H

Laboratory Suppository Filling And Sealing Machine 3000—3600 Pcs/H
Laboratory Suppository Filling And Sealing Machine 3000—3600 Pcs/H

Large Image :  Laboratory Suppository Filling And Sealing Machine 3000—3600 Pcs/H

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-2QSJ -A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 50-60 Days after receiving the deposit
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 30 Sets per month

Laboratory Suppository Filling And Sealing Machine 3000—3600 Pcs/H

Description
Name: Laboratory Suppository Filling And Sealing Machine With Automatic Commodity: Suppository Line
Model: SED-2QSJ -A Capacity: 3,000—3,600 Pcs/h
Volume: 0.5-5g Deviation: <±2%
Film: PVC\PE (thickness0.15mm) Tank Volume: 20L
Overall Dimensions: L:2270mmxW:2000mXH:1760mm Working Power: 3 Phase 380V
High Light:

Laboratory Suppository Filling And Sealing Machine

,

3600 Pcs/H Suppository Filling And Sealing Machine

,

3000 Pcs/H Suppository Filling And Sealing Machine

Full Automatic Laboratory Suppository Filling And Sealing Machine



Machine Parameters of Suppository Filling Machine

Commodity

Automatic suppository production line

Output

3,000—3,600 pcs/h

Dosage allowed

<±2%

Stirring tank capacity

30L

Working voltage

3 phase 380V

total power

4.5KW

Machine Weight

1000kg

Overall dimensions

L:2270mmxW:2000mXH:1760mm



Product Description of Suppository Filling Machine

SED-2QSJ -A Automatic Suppository Production Line is suitable for the products of special shape such as bullet head, torpedo shape and duck bill. (Also can customize according to your specifications).





Advantages of Suppository Filling Machine​

The equipment adopts PLC programmable control and man-machine interface operation, easy operation, convenient adjustment, accurate temperature control and smooth operation.


The temperature sensor and microcomputer control system are used to realize high precision thermostatic control.


The liquid storage tank is made of 316L stainless steel, with proper volume, heat preservation and heating function, and accurate temperature control; the tank is equipped with a mixing device to ensure the homogeneity of the liquid in the VAT at any time.



The reservoir can be connected with the filling mechanism through the pipe, and the liquid can be kept in circulation to ensure the fluidity of the liquid and satisfy the demand of filling.


The insertion type linear perfusion mechanism can be used to locate accurate, not dropping, and not hanging wall; The single-grain measurement is 0.5-5ml and the filling error is ±2%.


Continuous cooling design, the post-infusion suppository shell can be fully cooled and the liquid solid transformation is realized.
Continuous strip, continuous sealing, sealing process batch number self-printing; The seal should be well sealed, with neat appearance and good value of not less than 99.99%.



Products Show of Suppository Filling Machine​

Laboratory Suppository Filling And Sealing Machine 3000—3600 Pcs/H 0

Laboratory Suppository Filling And Sealing Machine 3000—3600 Pcs/H 1
