Products Description of Capsule Filling Machine

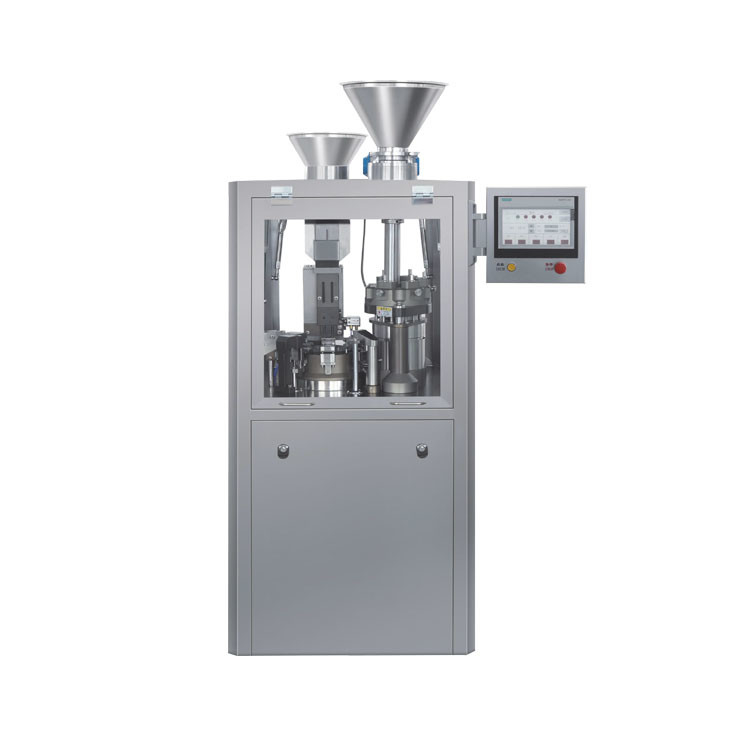

The SED-200J-B automatic capsule filling machine, as a perfect upgrading alternative for semi-automatic capsule filling machine, has been widely used in hospitals, university, pharmaceutical research institutes and labs of big pharmaceutical enterprises.

Detailed Parameters of Capsule Filling Machine

Feature of Capsule Filling Machine

1. Small in size, light in weight, energy savings, easy to operate and clean.


2. Opening and locking of capsule can be controlled automatically, which is safe and convenient.

3. Equipped with jog control system, which makes it easy and convenient for cleaning, loading and unloading of upper and lower dies.


4.Equiped with gate control security system and mechanical failure security system, which provides functions of automatic alarm and shutdown.

5.Automatic alarm and shutdown will be activated when lacks empty capsules or powder.


6.Rich functions designed on the HMI, including counting and displaying functions during the production, and it is able to link with printer if needed, for printing information including date of production, lot number, quantity, etc.

7. The plane cams are running in the mode of double rails, where the two axes run out separately. It can improve the operation accuracy, and meanwhile eliminate the possibility of collision between the lower die and the dosage disc.

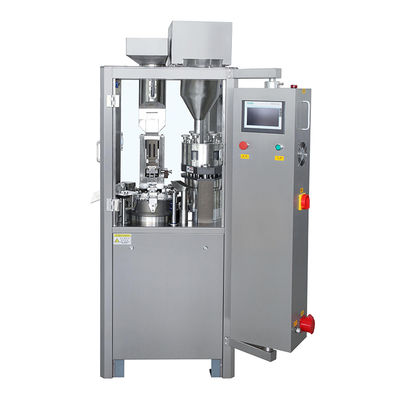

Products Show of Capsule Filling Machine

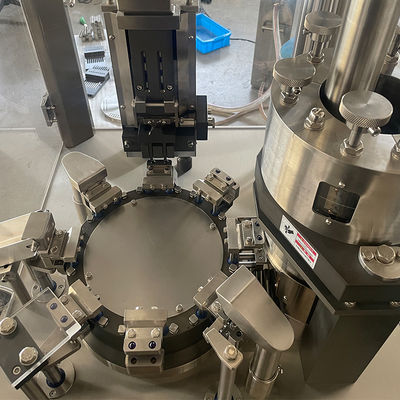

Product Details of Capsule Filling Machine

How to Operate

1. Press the green button in the power switch of the capsule filling machine, and the power is turned on;


2. Slowly adjust the vibration intensity adjustment knob clockwise. At this time, the sorting tray integrated with the vibration bracket begins to vibrate and adjust to a suitable vibration

3. Put the capsule shell into the capsule shell sorting tray, and put the capsule cap into the capsule cap sorting tray, and the number is equal. Generally speaking, the sorting tray is drilled with many round holes in the shape of a large upper and a lower

small funnel. The diameter of the round hole corresponds to the diameter of the capsule, and the capsule shell on the vibration table moves slowly back and forth, so that the capsule shell enters the hole on the platen;


4. The capsule shell and the cap of the capsule fall into the round hole with the opening facing upwards. When the opening is facing downwards, the capsule cap can be gently pressed downward, and then the capsule can be pulled out;


5. Hold the capsule shell connecting plate horizontally, and push it gently in the lower part of the sorting tray, and the powder capsule shell in the sorting tray will be removed. It will drop down into the round hole of the connecting plate, and then take out the connecting plate. In the same way, take out the capsule cap with the capsule cap cover plate of the capsule filling machine.

Precautions For Use

1. It is a vibration machine, and the tightening of each part of the screw should be checked frequently. If it is loose, it should be tightened in time to prevent failure and damage.


2. The plexiglass parts (worktable, medicine board) should avoid direct sunlight and close to high temperature, and heavy objects should not be placed. The medicine board must be placed vertically or flat to avoid deformation and damage.


3. The electrical enclosure and body must be grounded to ensure safety, and the power supply is cut off after work.


4. After working every day, the residual medicine on the machine and in the mold hole should be cleaned to keep the whole machine clean and hygienic, and avoid washing the host with water. If the mold on the machine needs to be cleaned, the fixing screw can be loosened, and it can be taken down, which is convenient for installation.
