Small Fruit And Vegetable Freeze Drying Machine With Automatic Vacuum

Small Fruit And Vegetable Freeze Drying Machine With Automatic Vacuum

  • High Light

    Freeze Drying Machine

    ,

    15Pa Freeze Drying Machine

    ,

    1200W Freeze Dry Machine

  • Name
    Small Fruit And Vegetable Freeze Drying Machine With Automatic Vacuum
  • Overall Size WxDxH
    205X385MM
  • Energy Consumption
    1200W
  • Power Supply
    220V 50HZ
  • Cold Trap Temperature
    -45℃
  • Total Weight
    3kg
  • Shelf Area
    0.3㎡
  • Ultimate Vacuum
    15Pa
  • Place of Origin
    China
  • Brand Name
    SED Pharma
  • Certification
    CE
  • Model Number
    SED-0.3XDG
  • Minimum Order Quantity
    1Set/Sets
  • Price
    Negotiable
  • Packaging Details
    Wooden Case
  • Delivery Time
    30 Sets per month
  • Payment Terms
    T/T,L/C, MoneyGram,Cash
  • Supply Ability
    40 working days after receiving the deposit

Small Fruit And Vegetable Freeze Drying Machine With Automatic Vacuum

Small Fruit And Vegetable Freeze Drying Machine With Automatic Vacuum



Products Description of Freeze Drying Machine


It has the function of in-situ freeze-drying, which is easy to operate and get rid of the cumbersome manual operation of traditional small freeze-drying machines. Suitable for pet food, fruits and vegetables, meat, Chinesemedicinal materials, health products and other fields.



Machine Parameters of Freeze Drying Machine



name
SED-0.3XDG Small Fruit Freeze Drying Machine
Appearance size
205X385MM
Energy consumption
1200W
Power supply
220-240V 50/60HZ
Shelf area
0.3㎡
Cold trap temperature
-45℃
Ultimate vacuum
15Pa
Processing capacity
3kg
Trays distance
40mm





Feature of Freeze Drying Machine



* Many heat-sensitive substances do not denature or inactivate.



* When drying at low temperature, some volatile components in the material are lost very little.



* During the freeze-drying process, the growth of microorganisms and the action of enzymes cannot proceed, so the original properties can be maintained.



* Since it is dried in a frozen state, the volume is almost unchanged, the original structure is maintained, and no concentration phenomenon occurs.



* Since the water in the material exists in the form of ice crystals after pre-freezing, the dissolved inorganic salts originally dissolved in water are evenly distributed in the material. During sublimation, the dissolved substances dissolved in water are precipitated, which avoids the phenomenon of surface hardening caused by the precipitation of inorganic salts carried by the migration of moisture from the material to the surface in the general drying method.



* After drying, the material is loose and porous, and it is sponge-like. After adding water, it dissolves rapidly and completely, and restores its original shape almost immediately.



* Since drying is carried out under vacuum with very little oxygen, some oxidizable substances are protected.



* Drying can remove more than 95% to 99% of the moisture, so that the dried product can be stored for a long time without deterioration.



* Because the material is in a frozen state and the temperature is very low, the temperature of the heat source for heating is not high, and a heater with normal temperature or low temperature can meet the requirements. If the freezing chamber and the drying chamber are separated, the drying chamber does not need to be insulated, and there will not be a lot of heat loss, so the utilization of thermal energy is very economical.

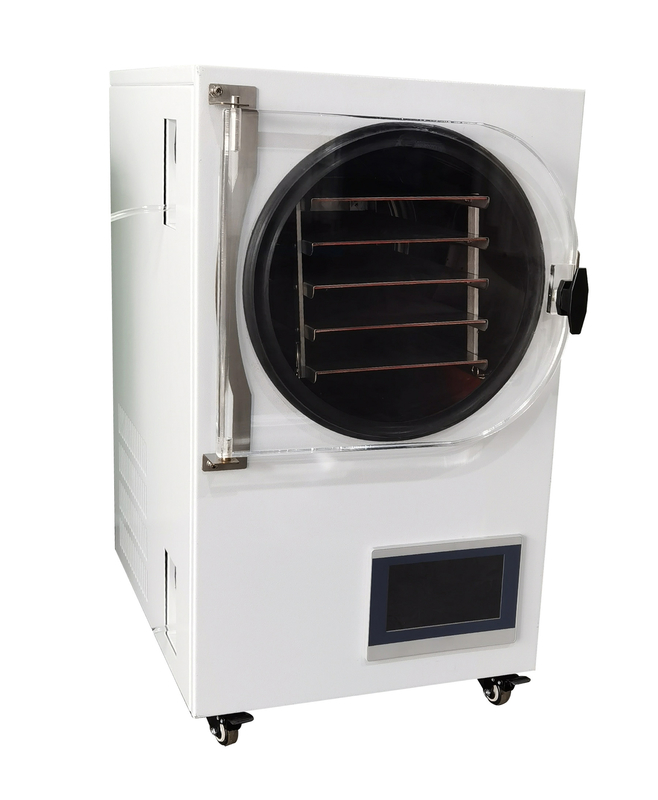

Products Show of Freeze Drying Machine



Small Fruit And Vegetable Freeze Drying Machine With Automatic Vacuum 0





Application of Freeze Drying Machine
