Automatic 10 Filling Head Plastic Ampoule Liquid Filling Machine

Automatic 10 Filling Head Plastic Ampoule Liquid Filling Machine

  • High Light

    100ml Liquid Filling Machine

    ,

    Ampoule Liquid Filling Machine

    ,

    300pcs/min Liquid Filling Machine

  • Name
    Automatic 10 Filling Head Plastic Ampoule Liquid Filling Machine
  • Weight
    3000kg
  • Dimension
    7300*1050*1800mm
  • Motor Power
    30kw
  • Power Supplye
    380V 50HZ Three Phase
  • Capacity
    200-300 Pcs/min
  • The Filling Volume
    1-100ml
  • Packaging Materials
    PET/PE PVC/PE PVC/EVOH
  • Place of Origin
    China
  • Brand Name
    SED Pharma
  • Certification
    CE
  • Model Number
    SED-360SP-F
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Wooden Case
  • Delivery Time
    40 Days after receiving the advance payment
  • Payment Terms
    T/T,L/C, MoneyGram,Cash
  • Supply Ability
    30 Sets per month

Automatic 10 Filling Head Plastic Ampoule Liquid Filling Machine

Automatic 10 Filling Head Plastic Ampoule Liquid Filling Machine



Machine Parameters of Liquid Filling Machine​



Weight 3000kg
Dimension 7300*1050*1800mm
Motor Power 30kw
Power supply 380V 50HZ Three phase
Capacity 200-300 pcs/min
The filling volume 1-100ml



Product Overview of Liquid Filling Machine​



This machine can be widely used for all kinds of liquid and pasty fluids including medical fluids, drinks, health products, food, pesticide, perfume, cosmetics, oil, E-liquid, jam dairy products, etc.



Feature of Liquid Filling Machine





1. Imported electrical components are used on the basis of the original 240 model, makes the machine running more stably.



2. With the rocker-arm operating interface, you can operate easily in any position of the machine.



3. It adopts high-speed and high-precision motion controller, stepless frequency conversion speed control. And the film pulling device is controlled by servo motor.



4. Human-machine interface makes the operation simple.



5. Automatic unwinding and film slitting. It has photoelectric positive and negative pattern matching function, which makes the exquisite finished products, meet the high standard of packaging requirements.



6. Using electronic peristaltic pump device for dosing (or mechanical piston pump control), easy to adjust.



7. With high filling accuracy, the filling does not leak, have no foam and won’t overflow.



8. High-quality stainless steel 316L is used in the parts contacted with the medicine. All the machine covers are stainless steel 304. It meets the GMP standard.



9. The bottom of the bottle is flat and can stand up.

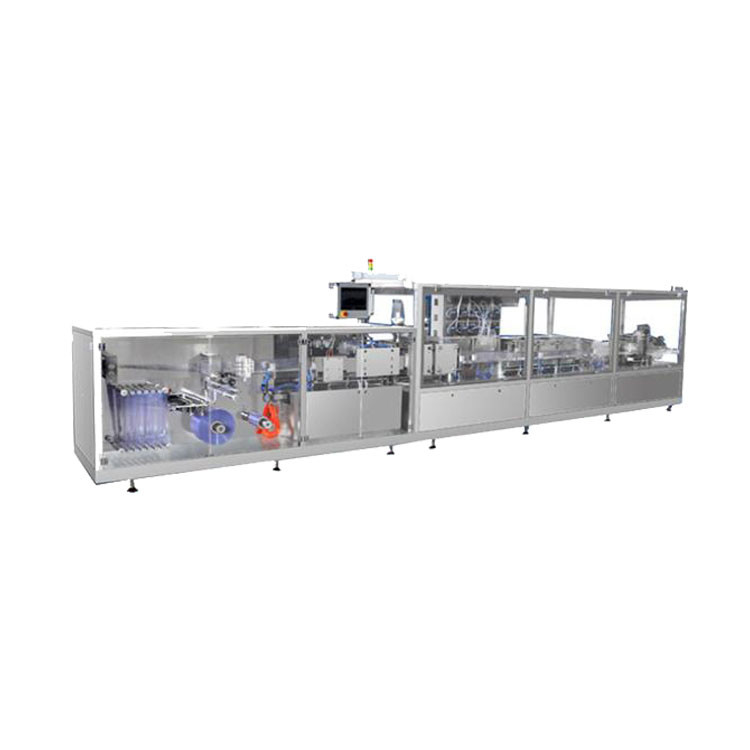

Product Show of Liquid Filling Machine

Automatic 10 Filling Head Plastic Ampoule Liquid Filling Machine 0

Application of Liquid Filling Machine



Widely used in filling milk, wine, drinking water and other low-viscosity non-gas liquids, as well as various food and beverages (such as tea drinks, soy sauce, wine, vinegar, etc.), medicines (alcohol, disinfectants, hand sanitizers), chemicals, Pesticides (containing acids, bases, organic solvents or dimethylbenzene) can fill various liquids in industry.
