Automatic Bfs 20ml Blow Fill Seal Machine For 6000pcs/Hour

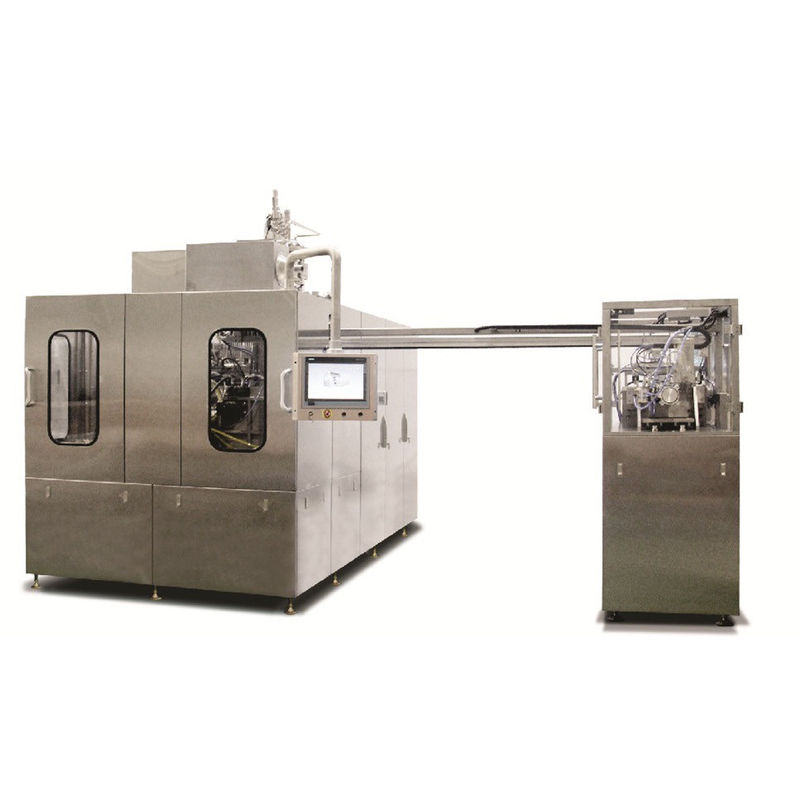

Large Image : Automatic Bfs 20ml Blow Fill Seal Machine For 6000pcs/Hour

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-BFS

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	50-60 Days after receiving the deposit
Payment Terms:	T/T,L/C, MoneyGram,Cash
Supply Ability:	30 Sets per month

Contact Now

Automatic Bfs 20ml Blow Fill Seal Machine For 6000pcs/Hour

Description

Name:	Automatic Bfs 20ml Blow Fill Seal Machine For 6000pcs/Hour	Use Scope:	Small Volume Parenterals,ophthalmic.solutions
Material:	PE,PP	Filling Volume:	0.4-20ml
Capacity:	6000pcs/hour	Power Consumption:	75kw
Power Supply:	380v 50hz Three Phase	Overall Dimension:	526026003015mm
Weight:	8000kg	Compressed Air:	8bar 300l/min
Material:	Stainless Steel	Key Word:	Seal Machine
Highlight:	bfs blow fill seal machine , 20ml blow fill seal machine , 6000pcs/hour bfs machine

Automatic Bfs 20ml Blow Fill Seal Machine For 6000pcs/Hour

Product Overview of Blow Fill Seal Machine

BFS is an acronym for Blow-Fill-Seal Technology. It was developed to allow the forming, filling and sealing of containers to take place in a single machine in a controlled environment, enabling aseptic packaging of medicinal liquids. Since the containers are manufactured, filled and sealed in one machine and protected by sterile laminar air, there is very little chance of contamination.

Additionally, all process media (e.g. solutions, air, etc.) are sterile filtered throughout the cycle, and open containers are exposed to cleanroom air for less than 1.5 seconds. When particle and microbial contamination is a major concern in production, blow-fill-seal technology becomes the process of choice.

Product Parameters of Blow Fill Seal Machine

Model	CGF-LT3
Use Scope	small volume parenterals,ophthalmic.solutions
Material	PE,PP
Filling Volume	0.4-20ml
Capacity	6000pcs/hour
Power Consumption	75kw
Power Supply	380v 50hz three phase
Compressed Air	8bar 300l/min
Cooling Water	3cbm, 12celcius, 2bar
Steam	40kg/hour, 2bar (Preparation)
	15kg/hour, 2bar (Production)
Washing Water	1cbm, 2.5bar, 15minutes
Vacuum	1cbm, 2.5bar, 15minutes
Overall Dimension	526026003015mm
Weight	8000kg

Feature of Blow Fill Seal Machine

1. It has new design and adopts block-type structure which is convenient for maintenance.

2. It has high capacity and requires small space and small clean room. The whole process is fulfilled on one machine.

3. One operator is enough for blowing, filling and sealing stations, which saves labor.

4. It saves energy. This machine has high-speed thermal insulation screw, which melt the plastic granule by friction and can save more than 50% energy than the traditional blowing machine.

5. It adopts the latest asepsis packaging idea. It can realize asepsis filling in the normal situation, no need external air-filter or asepsis situation. Whole filter and parts which has connect with the drug should have CIP and SIP(between 121c °140c °).Filling and sealing should be done immediately after injection and blowing ,which avoids any pollution.

6. It has high locking force.

7. The time-pressure measuring system has high accuracy. No spot, which is convenient for volume adjustment, parts changing and maintenance.

8. Automatic plastic perform clamp is adopted at the machine start.

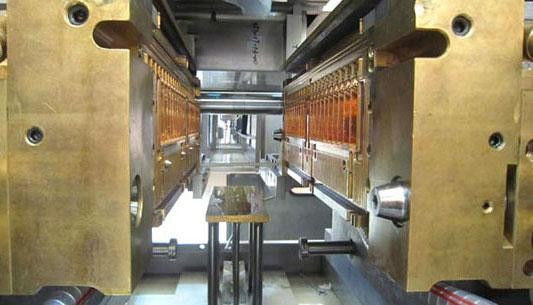

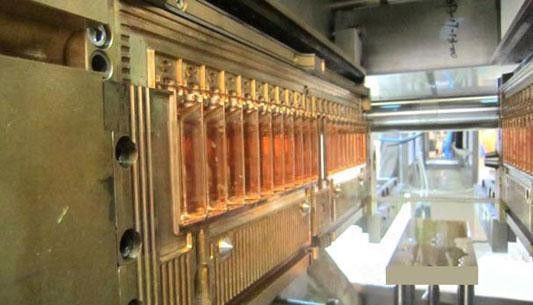

Show of Blow Fill Seal Machine

Application of Blow Fill Seal Machine

This product biological preparation hyaluronic acid human and animal vaccine eye drops for injection drug sterile preparation and other fields are applicable

Old style optical, aural, nasal care products need adding preservative in order to assure a controllable shelf life after opening.
Whereas no preservatives needed for the dispos-able&quantitative ampoules produced by BFS machine, therefore there is no allergy risk for patients.

Automatic Bfs 20ml Blow Fill Seal Machine For 6000pcs/Hour 1
