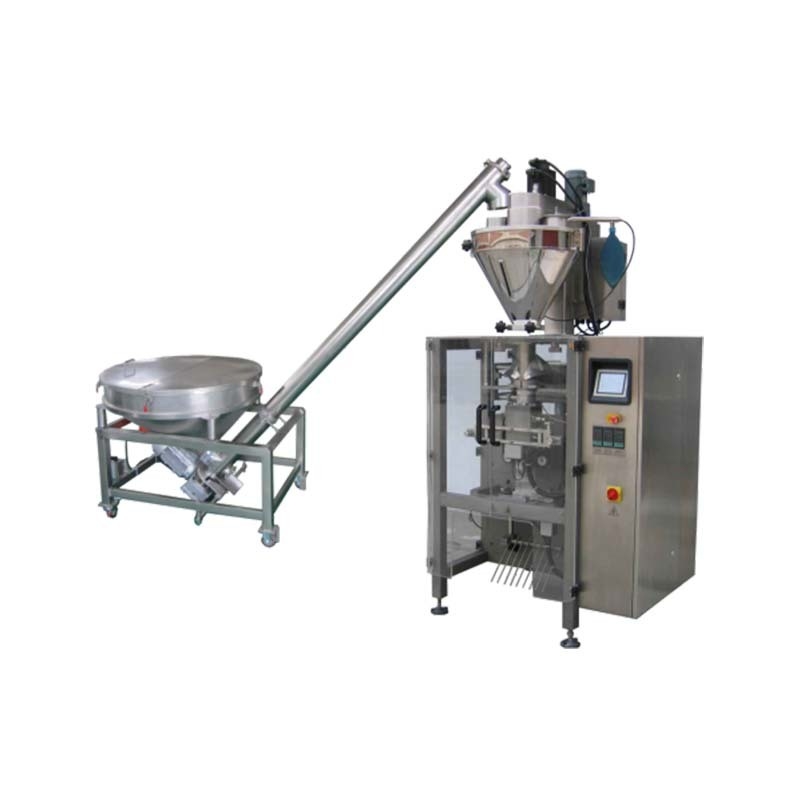

Electric Milk Powder Vertical Packaging Machine With 4-Side Seal Pouch
Product Specifications
| Attribute |
Value |
| Name |
Stick Bag Packaging Machine |
| Overall dimension |
1500*1160*2600mm |
| Power |
380v/50Hz |
| Weight |
730KG |
Keywords: Vertical Powder Packaging Machine, Powder Vertical Packaging Machine, Grain Packing Machine, 4 Side Seal Pouch Packing Machine
Product Overview
The SED-250FLB-J features a twin-mold structure, delivering top-tier performance and more steady operation. It comes equipped with a full-computer touchscreen control system and a human-machine interface (HMI); together, these components enable simple operation, easy product changeovers, and smooth workflow transitions.
To optimize maintenance procedures, the machine includes a fault display system that supports quick and trouble-free problem-solving. For material filling, the equipment uses the newest screw head design—a technical upgrade that makes it particularly suitable for powders with low flowability. This design guarantees high metering accuracy while maintaining fast processing speeds.
The machine features replaceable screw parts for simple adjustments to packaging specifications, minimizing downtime. The film pulling and traction system is controlled by a servo motor, ensuring smoother traction movements and precise regulation of bag length.
The transverse sealing function is driven by a servo motor, which eliminates operational shocks, lowers noise levels, and allows flexible adjustment of the opening stroke. Sealing pressure can be freely fine-tuned, making the equipment compatible with packaging materials of different thicknesses and complex structures.
The SED-250FLB-J automatically completes the entire packaging process, including film rolling, bag forming, material metering and filling, bag sealing, and date printing. Optional features are available to meet specific production demands, such as continuous bagging, European-standard hook holes, handle holes, corner folding, nitrogen filling, cooling systems, and long bag production.
