Product Details:
|
| Name: | High Production Capacity Pill Food Dishwasher Tablet Press Machine | Dimension(L*W*H): | 1240x980x1650 Mm |
|---|---|---|---|
| Weight:: | 3500kg | Production Capacity:: | 234000 Tablets Per Hour |
| Power:: | 11KW | Voltage:: | 240V |
| Material: | Stainless Steel | Key Word: | Tablet Press Machine |
| High Light: | 11KW Tablet Press Machine,234000 Tablets/h Tablet Press Machine |
||
Product Overview of Tablet Press Machine
That machine is a single press automatic rotation for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc.
which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.
Product Parameters of Tablet Press Machine
|
Model No.
|
SED-680-51Y
|
|
Punch station
|
51
|
|
Max Pressing Pressure(KN)
|
80
|
|
Max Filling Depth(mm)
|
18
|
|
Max Diameter of the Pressed Tablet(mm)
|
22
|
|
Max Thickness of the Pressed Tablet(mm)
|
8
|
|
Max Capacity(pcs/h)
|
234000
|
|
Motor Power(kw)
|
11
|
|
Height(mm)
|
1650
|
|
Covered Area(mm)
|
1240x980
|
|
Weight(kg)
|
3500
|
Feature of Tablet Press Machine
1. The material of the machine is made of stainless steel with totally closed, the surface of turntable deal with polished and prevent cross pollution which meet the GMP standard.
2. It is equipped with Organic-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.
3. It is adopts the import Frequency Timing with Electromagnetism Clutch.
4. The system of Hydraulic Pressure keep the working pressure under steady, when the pressure over-loading, it will be stopped the machine automatically.
5. Driving system is equipped with oil box and running under oil, easy for heat dissipation and wear-resistance.
6. It is equipped with Dust Collector as well, which avoid the dust emission, and recycle to save dust.

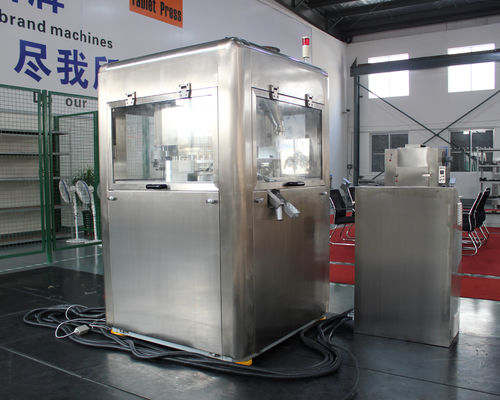

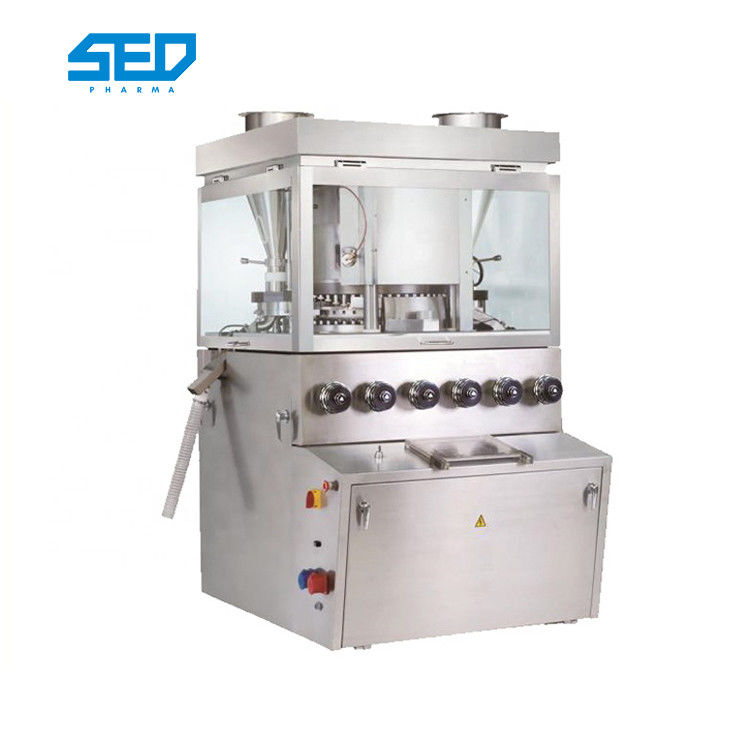

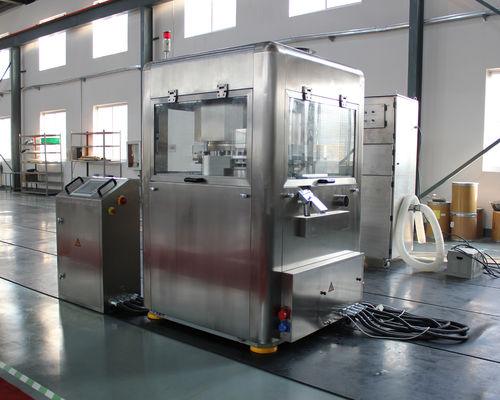

Show of Tablet Press Machine
Application of Tablet Press Machine
This machine is a new generation product of our factory. This machine is a single-roller continuous automatic tablet press, which is used to press various shapes of tablets and plain tablets. Mainly used in the pharmaceutical industry, but also in chemical, food, electronics and other industries.
