Product Details:
|
Name: | Plastic Oral Liquid Bottle Forming And Sealing Machine | Speed: | 100 Bottles/min |
---|---|---|---|
Packing Material: | PVC/PE (0.2-0.4)×120mm | Filling Volume: | 1-100ml |
Power: | 6kw | Voltage: | 220V/380V,50Hz |
Material: | Stainless Steel | Key Word: | Ampoule Filling Machine |
High Light: | machinery for pharmaceutical industry,equipment for pharmaceutical manufacturing |

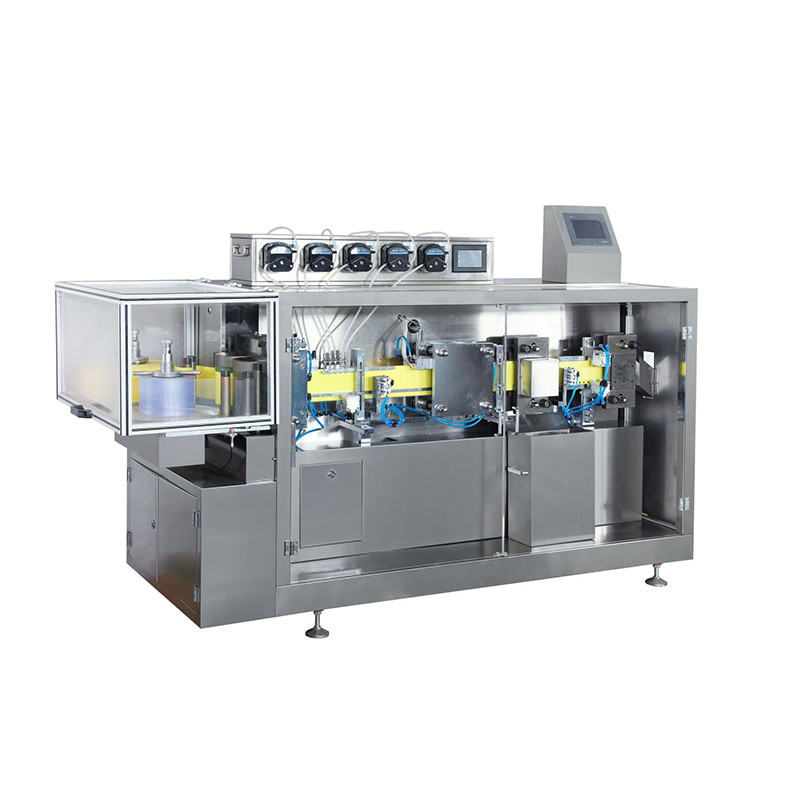

Product Overview of Ampoule Filling Machine
Plastic oral liquid bottle forming and sealing machine can be widely used for all kinds of liquid and pasty fluids including medical fluids, drinks, health products, food, pesticide, perfume, cosmetics, oil, E-liquid, jam dairy products, etc.
Product Parameters of Ampoule Filling Machine
Item.No | SED-118SP1-F |
Capacity |
100 bottles/min |
Filling Head | 5 |
Packing Material |
PVC/PE(0.2-0.4)×120mm |
Filling Volume | 1-100ml |
Total power supply | 6kw |
Voltage | 220V/380V/50Hz |
Weight | 850kg |
Overall Dimension (L x W x H) | 2300*850*1450mm |
Feature of Ampoule Filling Machine
1. Controlled by PLC, the frequency conversion in finely variable speeds.
2. All 6 processes from spreading roll, AMP bottle forming, filling, sealing the end, printing serial numbers, cutting the end ,cutting apart, controlled by programming.
3. The computer human interface has simple and clear operation.
4. The filling head does not drop, leak, rise in bubbled and spill over.
5. All are made of high-quality stainless steel, accord with the standard GMP.
6. Mostly pneumatic components and wirings adopt inward fittings.
7. Automatic and mechanical filling, precise calculation and limited deflection.
