3 Square Meters Mini Scale Box Type Vacuum Cold Drying Machine For Commercial Food , Long Life

3 Square Meters Mini Scale Box Type Vacuum Cold Drying Machine For Commercial Food , Long Life

  • High Light

    freeze drying equipment

    ,

    freeze dryer lyophilizer

  • Name
    3 Square Meters Mini Scale Box Type Vacuum Cold Drying Machine For Commercial Food , Long Life
  • Power
    380V/50HZ/100A
  • Power Consumption
    19Kw
  • Chamber Design Temperature
    90℃
  • Total Weight
    2000kg
  • Whole Volume
    3500X1200X2100mm
  • Place of Origin
    China
  • Brand Name
    SED Pharma
  • Certification
    CE
  • Model Number
    SED-3M
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Wooden Case
  • Delivery Time
    90-120 days after receiving the deposit
  • Payment Terms
    T/T,L/C, MoneyGram,Cash
  • Supply Ability
    10 Sets per month

3 Square Meters Mini Scale Box Type Vacuum Cold Drying Machine For Commercial Food , Long Life

3 Square Meters Mini Scale Box Type Vacuum Cold Drying Machine For Commercial Food , Long Life



Machine Parameters of Freeze Dry Machine

model 3 square meters
Power 380V/50HZ/100A
Power consumption 19Kw
Cooling water qty

≥3m3/h(T≤28℃)

≥2m3/h(T≤20℃)

Compressed air ≥40L/Min(P=0.4-0.5Mpa)
Defrost water consumption 60Kg/Batch(T=80℃/P≥0.2-0.3MPa)
Chamber design temperature 90℃
Shelf total usable area 3.24M2
3-5ml vials capacity 13000 bottles
Structure Integral
Total weight 2000kg
Whole volume 3500X1200X2100mm



Show of Freeze Dry Machine​

• Integrated structure design.


• Rectangular chamber provide very high energy efficient.


• AISI 304 material for standard configuration. Stainless steel 316L is optional.


• Piston compressor,double stage, Bitzer brand, could cool ice condenser to -80ºC and shelves -50ºC.


• Shelf temperature -50ºC to +70ºC with accuracy of ±1ºC.


• 4pcs high sensitive temperature probe to monitor raw material temperature data.


• Edwards or Leybold vacuum pump optional, System final vacuum <1Pa.


• Inert gas charge function.


• Full Color touch screen controller with LYO-CONTROL.


• Pneumatic system for valves(vacuum pumping/condenser defrosting/vacuum release/inert gas charge) quick action.


• Patent vapor guidance technology and ice condenser design, strong guarantee ice condenser icing efficient and capacity.


• CIP, SIP, stoppering, PC/Mobile phone connective, data recorder is optional.



Product introduction

Freeze-drying machine is suitable for laboratory or pilot scale freeze-drying experiments.This series of products are the patent products of our company.



The series of drying machines are equipped with electric heating rack, and the freeze-drying process is completed in the same place.It changes the traditional complex operation and prevents product contamination.

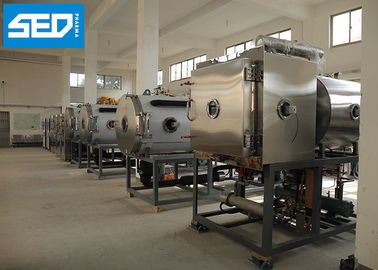

Show of Freeze Dry Machine

3 Square Meters Mini Scale Box Type Vacuum Cold Drying Machine For Commercial Food , Long Life 03 Square Meters Mini Scale Box Type Vacuum Cold Drying Machine For Commercial Food , Long Life 13 Square Meters Mini Scale Box Type Vacuum Cold Drying Machine For Commercial Food , Long Life 23 Square Meters Mini Scale Box Type Vacuum Cold Drying Machine For Commercial Food , Long Life 33 Square Meters Mini Scale Box Type Vacuum Cold Drying Machine For Commercial Food , Long Life 4





Application of Freeze Dry Machine

Food industry: dried vegetables, meat, fish, condiments, convenience foods and specialty products, etc. Preserves the original fresh look, smell, taste, shape of food. Freeze-dried products fully restore moisture, can be stored for longer periods more easily, and are less expensive to ship.


Nutrition and health care industry:
Vacuum freeze-dried products such as royal jelly, ginseng, soft-shelled turtle and rain worm make the final product more natural and authentic.


Pharmaceutical industry:
Vacuum freeze-drying can be used for the drying of Chinese and Western leeches such as serum, plasma, bacteria, enzymes, antibiotics, hormones, etc.


Biomedical Research:
Vacuum freeze-drying can store blood, bacteria, arteries, bones, skin, cornea, nerve tissue and organs for a long time, and can fully restore moisture and regeneration.
