Touch Screen Semi Automatic Capsule Filling Machine Made Of Stainless Steel Button

Touch Screen Semi Automatic Capsule Filling Machine Made Of Stainless Steel Button

  • High Light

    capsule filling device

    ,

    capsule filling equipment

  • Name
    Touch Screen Semi Automatic Capsule Filling Machine Made Of Stainless Steel Button
  • Model
    SED-NJP-1200
  • Filling Dosage
    Powder, Pellets, Tablet
  • Capsule Size
    Capsule Size 00#-5# And Safety Capsule A-E
  • Max Output (capsules/hour)
    72000
  • Power
    380V 50Hz 3KW
  • Noise Index
    <80dBA
  • Overall Dimension (mm)
    970×820×1900
  • Place of Origin
    China
  • Brand Name
    SED-Pharma
  • Certification
    CE
  • Model Number
    SED-NJP-1200
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiation
  • Packaging Details
    Wooden Case
  • Delivery Time
    35 Days after receiving the deposit
  • Payment Terms
    T/T,L/C, MoneyGram,Cash
  • Supply Ability
    30 Sets per month

Touch Screen Semi Automatic Capsule Filling Machine Made Of Stainless Steel Button

Touch Screen Semi Automatic Capsule Filling Machine Made Of Stainless Steel Button



Detailed Parameters of Capsule Filling Machine

MODEL NJP-1200
Filling Dosage Powder, Pellets, Tablet
Capsule Size Capsule size 00#-5# and safety capsule A-E
Max Output (capsules/hour) 72000
Power 380V 50Hz 3KW
Noise Index <80dBA
Overall Dimension (mm) 970×820×1900
Weight (kg) 900



Trait of Capsule Filling Machine​



1.Good-looking appearance, exquisite workmanship, eases of operation, simplicity of use.



2.Filling seat and measuring plate are designed as one unit to make measuring plate and filling rod without deviation, avoid friction between filling rod and measuring plate, improve its precision, furthermore, it enhances the machine’s life greatly.



3.Ineligible capsule can be eliminated automatically, the medicine in the capsule can be recycled and be reused, thus it can improve greatly the economic efficiency.



4.Simplicity and convenience of dismantling, installation and clean, various models of mould can be replaced (the mould of 800 model and 1000 model as well as 1200 model can be replaced mutually on the same machine) (and the mould of 200 model and 400 model as well as 600 model can be replaced mutually on the same machine) to meet different capacity requirements.



Product Description of Capsule Filling Machine​



The machine is designed and further improved on the base of original full automatic capsule filling machine from both home and aboard. With high technology and exclusive performance, it has reached international leading level.

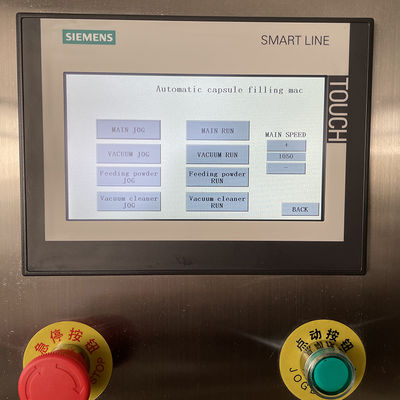

It is an ideal equipment for capsule and medicine in pharmaceutical industry which is in full compliance with GMP requirements.It adopted PLC programmable controller, stepless frequency inverter, man-machine interface to operate and touch screen display (Type A&B is a Touch Panel operation).



With fault or lack of material, the machine will automatically alarm and shut down, and eliminate automatic alarm after troubleshooting. NJP-800/1000/1200 owns functions of password input, parameter setting, the print data, resetting.



All the key pieces of the drive shaft and the camshaft for the machine are adopting the imported materials.



Working Principle of Capsule Filling Machine



The working principle of the automatic capsule filling machine is divided into two parts, which are the movement of the capsule and the filling of the medicine:


1. Movement of the capsule
During the filling process of the intermittent capsule filling machine, the movement of the capsule depends on the indexing box for intermittent and discontinuous rotation. The filling volume of the capsule is mainly determined by the volume of the metering



disc hole. The hollow capsule is in the capsule hopper, the main board moves up and down, the capsule enters the capsule guide groove by its own gravity, and then the horizontal fork and the vertical plug make the capsule cap upward and the



capsule body downward into the upper and lower modules. The capsule body and capsule cap are separated under the action of the device, and then the module enters the powder filling station.


2. Drug filling
The sensor in the powder holding ring controls the screw feeding rod above it, and the medicine is continuously added to make the height of the powder in the powder holding ring constant. position, push the drug column into the capsule body. After that, it



enters into the capsule rejection, capsule locking, finished capsule discharge, module cleaning station in turn, and then enters a new round of station cycle, and the cycle begins again and again.

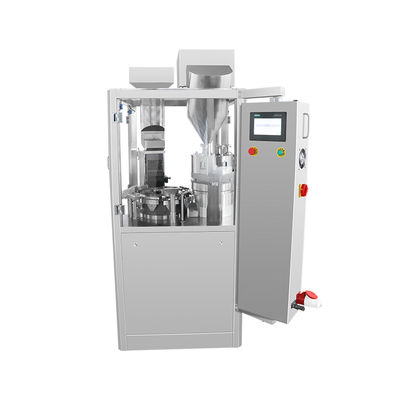

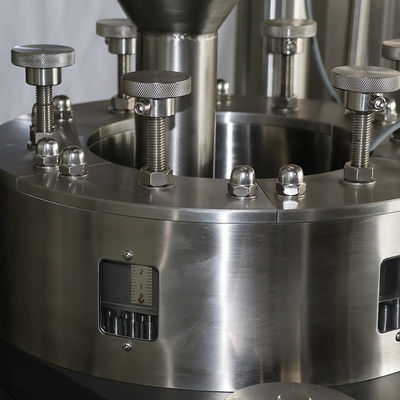

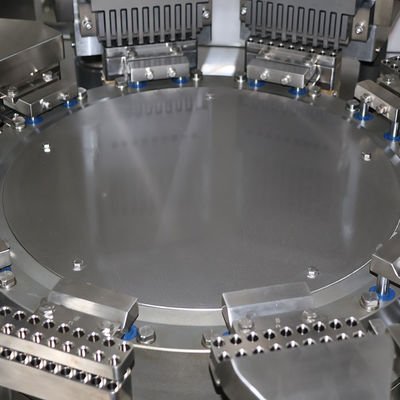

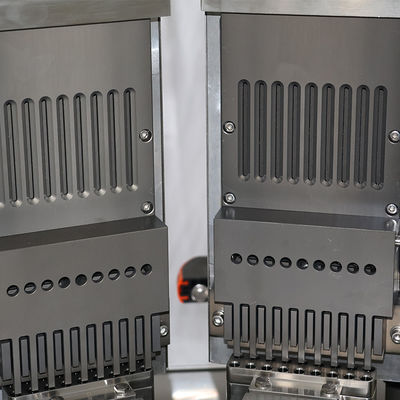

Product Show of Capsule Filling Machine



Touch Screen Semi Automatic Capsule Filling Machine Made Of Stainless Steel Button 0

Touch Screen Semi Automatic Capsule Filling Machine Made Of Stainless Steel Button 1

Touch Screen Semi Automatic Capsule Filling Machine Made Of Stainless Steel Button 2Touch Screen Semi Automatic Capsule Filling Machine Made Of Stainless Steel Button 3



Application of Capsule Filling Machine

Touch Screen Semi Automatic Capsule Filling Machine Made Of Stainless Steel Button 4
