Product Details:
|
| Name: | Stainless Steel Gel Capsule Machine Pharmaceutical Machinery With 260 Grains/Min | Model: | SED-JY260 |
|---|---|---|---|
| Dimension: | 1020×860×1970mm | Motor Power: | 5.75kw |
| Power Supply: | 380V/50Hz | Max Capacity: | 260 Grains/min |
| Highlight: | capsule filling device,capsule filling equipment |
||

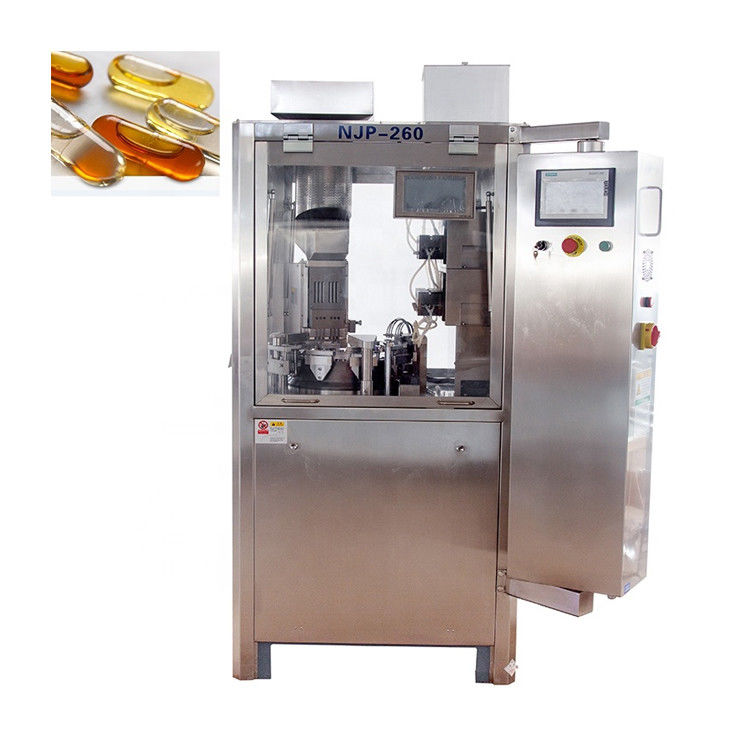

Stainless Steel Gel Capsule Machine Pharmaceutical Machinery With 260 Grains/Min
Product Description of Capsule Filling Machine
The highest: 260 tablets per minute. Standardization of products, serial production: manufacturing parts common interchangeability of more than 99%, each part has a fixed code, positioning holes to replace the mold parts positioning, repeat
positioning accuracy; quick die change, simple operation, easy to clean.
Detailed Parameters of Capsule Filling Machine
| Machine Model | NJP-260 New design NJP hard liquid capsule filling machine | |
|
Technique Parameter |
Weight | 900kg |
| Dimension | 1020×860×1970mm | |
| Motor Power | 5.75kw | |
| Power Supply | Three-phase four-wire AC 380V/50Hz | |
| Max Capacity | 260 grains/min | |
| Filling Capsule Models | 00#~5#, secure capsule A~E | |
| Good filling rate | ≥99.5% | |
| Noise | ≤75dBA | |
| Precision | Liquid more than 300mg≤±3% | |
| Compressed Air | 0.06m3/min 0.3Mpa | |
| Source of water | Water-ring vacuum pump matching with water tank to recycle the water, or using external water source. | |
| Vacuum Degree | -0.02~-0.06 MPa | |
| Water flowing rate | 250L/h | |
| Inner diameter of inlet tube | 20mm | |
| Inner diameter of outlet tube | 27mm | |
| Environment temperature | 21℃±3℃ | |
| Plant height | Human feeding≥2.6m, Vacuum feeding≥2.8m | |
| Relative humidity | 40~55% | |
| Air Displacement | 300m3/h | |
| Control System | Stepless frequency converter, PLC control | |
| Material | All the parts directly contacting with capsule and liquid adopt high quality of 304 and 316L stainless steel. | |
Trait of Capsule Filling Machine
1. For all transmission cams, improve from the original outer cam pulled by the spring, to high quality special materials, the production of groove wheel drive, out of the spring pull fatigue, the use of short life shortcomings, and wear-resistant, stable operation.
2. Taking into account the equipment for a long time running, medicine dust easily enter the mold turntable need to dismantle the cleaning factor, innovative design to seal the ring outside the dust protection device. Completely ensure the operation of the equipment sealing and maintenance of cumbersome ills.
3. Increase the jogging control system, easy to manufacture and clean the human operation.
4. Lack of capsules, the liquid will automatically stop feeding the difference:

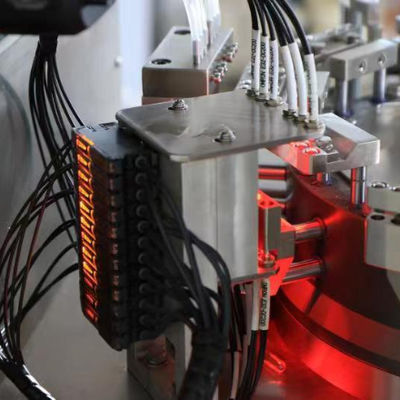

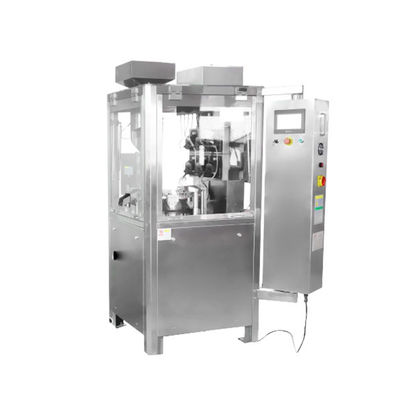

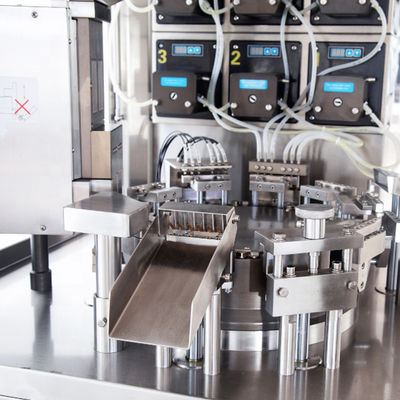

Product Show of Capsule Filling Machine
Application of Capsule Filling Machine
