Product Details:
|
| Name: | Automatic Three Dimension Dry Powder Blender Equipment With 800L | Model: | SED-1000SH |
|---|---|---|---|
| Item Name: | Powder Mixing Machine | Barrel Volume: | 1000L |
| Max Loading Capacity: | 800L/500KG | Speed Of Driving Shaft: | 0-8rpm |
| Motor Power: | 7.5kw | Dimension: | 2650×2500 ×2600mm |
| Material: | Stainless Steel | Key Word: | Powder Mixer Machine |
| High Light: | dry powder mixer machine,powder mixer blender |
||

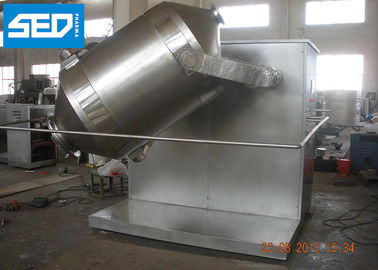

Automatic Three Dimension Dry Powder Blender Equipment With 800L
Product Description of Powder Mixer Machine
The mixing barrel of the machine moves in multi-direction. For the materials, there is no centrifugal function, without the specific gravity segregation and the layer division.
For each of build-up phenomenon, there is the remarkable weight rate. The mixing rate is up to 100%.The machine is the desired product in various mixers at present.
The barrel material charge rate is big. The Maximum rate can be up to 90%(the common mixer has only 40% charge rate).It is high in efficiency and short in the mixing time.
The barrel uses the curve connection. The barrel has passed the fine polish treatment.
The machine is used for mixing the powder state and grain state materials with the high uniformity in the pharmacy, chemical, food, light-industry, electronic, mechanical, metallurgical, nation defense industries and other science and technology institutes.
Technical Parameters of Powder Mixer Machine
| Model | SED-1000SH |
| Barrel capacity(L) | 1000 |
| Max loading capacity(L) | 800 |
| Max loading capacity(kg) | 500 |
| Speed of driving shaft(r/min) | 0-8 |
| Motor power(kw) | 7.5 |
| overall dimensions(mm) | 2650×2500×2600 |
| Total weight(kg) | 2500 |
Principle of Powder Mixer Machine
With the driving of main shaft, the loading body will parallel move, rotate and roll again and again to make the materials to do the three-direction combined motion (circle, radial and axial direction) along the wall.
So that to realize the mutual flow, diffusion, accumulation and adulteration of many kinds of materials. Finally achieve the purpose of uniform mixing.
Usage and Feature:
Product Show of Powder Mixer Machine
Application of Powder Mixer Machine
