Product Details:
|
| Name: | High Speed Continuous Auto Cartoner Machine | Application: | Blisters |
|---|---|---|---|
| Power: | 5 Kw | Warranty: | 1 Year |
| Installation: | Engineer Can Be Serve Abroad | Speed: | 260 Boxes Per Minute |
| Control Mode: | Touch Screen And PLC Control | Suitable Carton Size: | (65-120)mm×(30-60)mm×(30-60)mm |
| Material: | Stainless Steel | Key Word: | Automatic Cartoning Machine |
| Highlight: | auto cartoner machine,vertical cartoning machine |
||
Product Parameters of Auto Cartoner Machine
| Item | Technical parameters | |
| Encasing speed | 260 boxes/min | |
| Box | Quality requirement | 250-350g/M2[Base on carton size] |
| Dimension range(L×W×H) | (70-180)mm×(35-80)mm×(14-50)mm | |
| Leaflet | Quality requirement | 60-70g/M2 |
| Unfolded leaflet specification(L×W) | (80-250)mm×(90-170)mm | |
| Fold range(L×W) | [1-4]Fold | |
| Compressed air | Working pressure | ≥0.6mpa |
| Air consumption | 160-200L/min | |
| Power supply | 380V 50HZ | |
| Motor power | 5kw | |
| Machine dimension(L×W×H) | 6800mm×1600mm×1860mm | |
| Machine weight | 3400kg | |
Feature of Auto Cartoner Machine
1. Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.
2. No products not suction leaflet, no leaflet not suction carton.
3. Automatic detection and rejection device for lacking blister goods and leaflets.
4. Protecting automatically for overloading.
5. Stable performance , operation is easy.
Application of Auto Cartoner Machine
Automatic High speed continuous cartoning machine is new model which innovation design base on bringing in foreign advanced technology, also strictly according to pharmaceutical industry “GMP “standard to manufacture.
With high efficiency, high performance production capacity, leaflet folding and conveying, carton opening and forming, posterior pushing structure and related technology all reach Europe and USA standards.

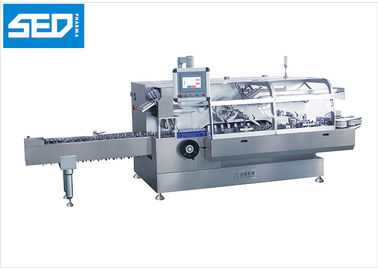

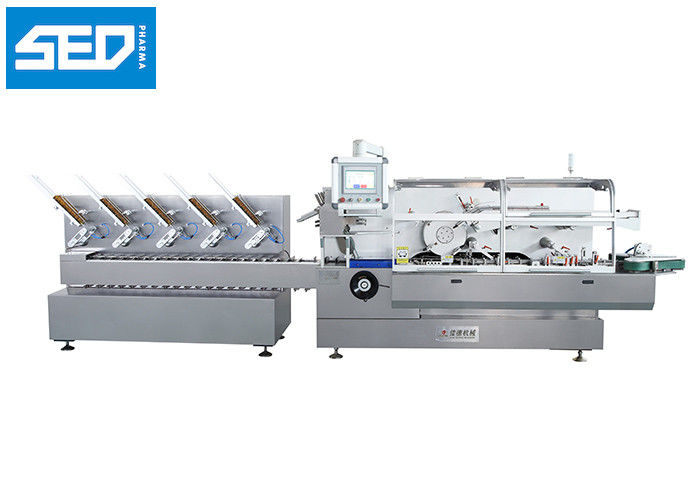

Show of Auto Cartoner Machine
