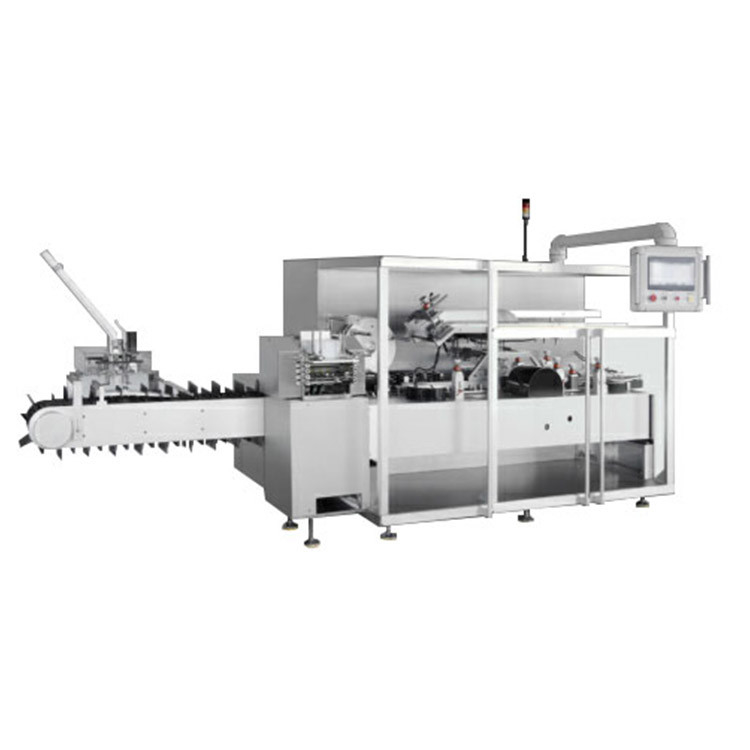

High Speed Automatic Cartoning Machine

High Speed Automatic Cartoning Machine
High Speed Automatic Cartoning Machine

Large Image :  High Speed Automatic Cartoning Machine

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-220GZH-E
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 40 Days after receiving the deposit
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 30 Sets Per Month

High Speed Automatic Cartoning Machine

Description
Name: High Speed Automatic Cartoning Machine Weight: 2800kgs
Application: Sachet,Bottle,Blisters,Bags,Etc. Carton Details: 220 (cartons/min)
Carton Size: (70-200)mm×(35-90)mm×(14-70) Mm (L×W×H) Noise: <70 DB
Air Consumption: 160-220 L/min Power: 0.75kw
Material: Stainless Steel Key Word: Automatic Cartoning Machine
Highlight:

vertical cartoning machine

,

horizontal cartoning machine

High Speed Automatic Cartoning Machine



Product introduction of Automatic Cartoning Machine



This machine is a high-performance product integrating machinery, light, electricity and gas, which is independently designed and designed by our company on the basis of introducing foreign advanced technology, and is manufactured in strict accordance with the cGMP requirements of the pharmaceutical industry.







Technical Data of Automatic Cartoning Machine

Max speed 220 (cartons/min)
Carton requirement 250-350g/m²(Depends on the size of the carton)
Carton size range

(70-200)mm×(35-90)mm×(14-70) mm

(L×W×H)

Leaflet quality requirement 60-70g/m²
Leaflet unfolded size range (80-290)×(60-195) (L×W)
Leaflet folded size range 1-4 folds
Compressed air working pressure ≥0.6 Mpa
Compressed air consumption 160-220 L/min
Dimension(L×W×H) 4500mm×1600mm×1800mm
Weight 2800
Installed power 6kw 380V/ 50Hz







Features of Automatic Cartoning Machine



(1) The machine is a continuous operation, adopts automatic box opening (suction), manual folding (1-4 folds), blanking, feeding, batch numbering, box sealing, waste detection and other processes (hot melt glue device can also be installed ), stable operation and easy operation;

(2) Adopt servo stepper, PLC and man-machine interface to automatically control the operating system, stepless frequency conversion speed regulation, high degree of automation

(3) It has an overload protection system for the whole machine, an overload protection system for the paper folding mechanism, and an overload protection system for the pusher. It will automatically stop when there is overload such as jamming, and display fault information on the touch screen, which is convenient for maintenance and handling of faults, reduces damage to equipment, and ensures Machine safety

(4) The packaging procedure adopts the principle of packaging material priority. When there is no packaging material, manuals, cartons, and packaging materials are not drawn, so as to ensure the qualified product rate and reduce the waste of packaging materials.

(5) The packaging types are diversified, suitable for packaging medicine boards, medicine bottles, pillow bags, hoses, soft double aluminum plates, granular pouches, plastic trays, cosmetics, food and some electronic products and other industries;

(6) It will automatically shut down without manual for three consecutive times, and it will automatically shut down and give an alarm if there is no paper box.

(7) Various devices such as automatic feeder and conveying mechanism can be designed according to customer requirements.

(8) When the packaging is changed within a certain range of specifications, there is no need to change the mold again, just simple adjustments.

(9) It can be combined with other supporting equipment to realize the docking linkage packaging production line.






Application of Cartoning Machine

This product is suitable for packing aluminum plastic blister cards, medicine bottles, cosmetics, poker, electronics and daily necessities.
