Product Details:
|
| Name: | 15 Punch Stations Tablet Pressing Machine | Station: | 15 Punch Stations |
|---|---|---|---|
| Capacity For Single Layer Tablet: | 27,000 Tablets Per Hour | Max. Tablet Diameter: | 50mm |
| Max. Filling Depth: | 30mm | Turret Speed: | 10-25rpm |
| Weight: | 2100kgs | Material: | Stainless Steel |
| Key Word: | Tablet Pressing Machine | Size: | 1300*1500*1850mm |
| High Light: | machinery for pharmaceutical industry,equipment for pharmaceutical manufacturing |
||

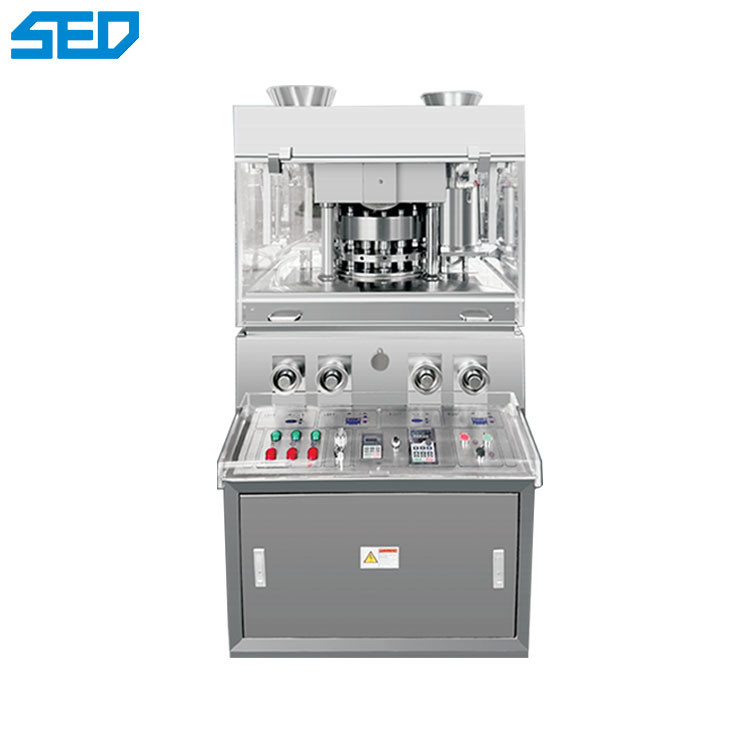

15 Punch Stations Tablet Pressing Machine
Performance of Tablet Pressing Machine
This equipment is a high-tech mechanical and electrical product developed by our company on the basis of years of research and development of automated product inspection.
It can suppress all kinds of conventional wafers and other special-shaped tablets (including double-sided printing). It is the best choice for pharmaceutical, chemical, food, plastics, electronics and other production enterprises.
Product Parameters of Tablet Pressing Machine
| Stations (unit) | 15 |
| Maximum compression (KN) | 130 |
| Max. Diameter of tablet to be produced (mm) | 50 |
| Max. Filling depth (mm) | 30 |
| Max. Thickness of tablet (mm) | 12-16 |
| Rotary speed of the turret (rpm) | 10-25rpm |
| Capacity of the tablets (max ten thousand tablets/hour) |
27,000 Tablets |
| Overall Dimension | 1300*1500*1850 |
Main Features of Tablet Pressing Machine
1. It is equipped with Organic-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.
2. It is adopts the import Frequency Timing with Electromagnetism Clutch.
3. Driving system is equipped with oil box and running under oil, easy for heat dissipation and wear-resistance.
4. It is equipped with Dust Collector as well, which avoid the dust emission, and recycle to save dust
