Two Dimensional Dry Powder Mixer Machine With Stainless Steel Body

Two Dimensional Dry Powder Mixer Machine With Stainless Steel Body
Two Dimensional Dry Powder Mixer Machine With Stainless Steel Body Two Dimensional Dry Powder Mixer Machine With Stainless Steel Body

Large Image :  Two Dimensional Dry Powder Mixer Machine With Stainless Steel Body

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-450EH
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 35 Days after receiving the advanced payment
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 30 Sets per Month

Two Dimensional Dry Powder Mixer Machine With Stainless Steel Body

Description
Name: Two Dimensional Dry Powder Mixer Machine With Stainless Steel Body Item Name: Powder Mixing Machine
Working Volume: 450 KG/Batch Motor Power: 4.5kw
Dimension: 1500×3200 ×2550mm Weight: 1800kgs
High Light:

dry powder mixer machine

,

powder blender equipment

Two Dimensional Dry Powder Mixer Machine With Stainless Steel Body



The main technical characteristics of Mixer Machine

Number Item Unit Model/specification
1

Loading capacity

L 1500
2 Max Loading Weight Kg/batch 450
3 Total motor power kw 4.5
4 Overall size mm

1500×3200×2550

5 Weight kg 1800



Entire Body Stainless Steel Two Dimensional Dry Powder Mixing Machine


1. For mixing dry powders or small granules in Food,Chemical and Pharmaceutical industry ;

2. Particularly good at mixing materials with quite different bulk density

3. Mixing vessel volume: 100-450KG/Batch;

4. GMP design

5. Vacuum feeder can be equipped to achieve automatic feeding and prevent dust.

Working principle of mixing machine :


EYH series two dimensional motion dry powder mixing machine is a novel material mixer extensively used in phamaceutical, chemical, metallurgical, food, light and agricultical industries This machine can carry out highly even mixing of powders or granules, so that the mixe materials can reach their best effectiveness.



This mixer consists of mixing barrel, swing frame and support frame. The Double cone mixing barrel is mounted on support frame by four rollers which makes the mixing barrel rotate axially.



Meanwhile, the crank arm pushed and pulls the mixing barrel back and forth. So the mixing barrel will rock back and forth. Axial rotation and rock back and forth happens in a solid two dimensional space. Materials will be evenly mixed during rolling and rocking in a very short time.



Technical advantages of mixing machine :

1. Mirror polished of inner and outer shell to meet GMP standard.

2. No blind angle in the V-shells, no accumulation of materials, high speed-bar, efficient and shor mixing time.

3. Mixing uniformity can reach 99%

4. Rotating valve is equipped for discharging

5. Fully integrated motors and controls

6. Can work with vacuum feeding system to create dust-free working condition.

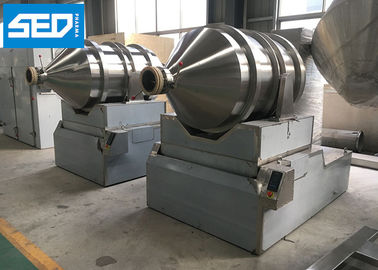

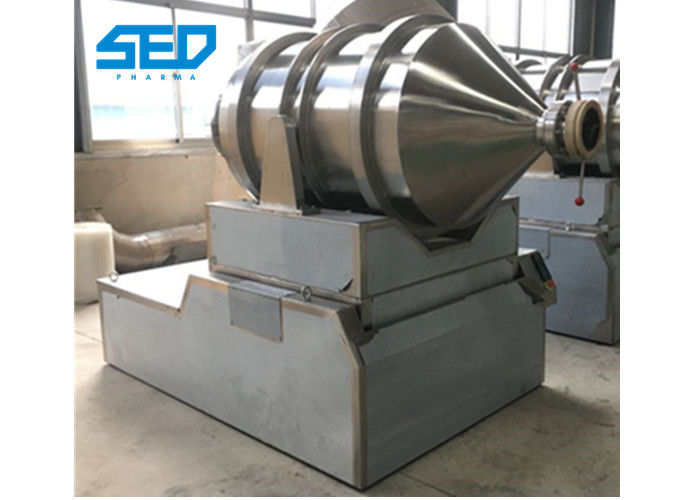

Product Show of mixing machine
two dimensional motion dry powder mixing machine


two dimensional motion dry powder mixing machine



Application of Mixing Machine

Two Dimensional Dry Powder Mixer Machine With Stainless Steel Body 2

Two Dimensional Dry Powder Mixer Machine With Stainless Steel Body 3Two Dimensional Dry Powder Mixer Machine With Stainless Steel Body 4Two Dimensional Dry Powder Mixer Machine With Stainless Steel Body 5Two Dimensional Dry Powder Mixer Machine With Stainless Steel Body 6Two Dimensional Dry Powder Mixer Machine With Stainless Steel Body 7
