Product Details:
|
Name: | Stainless Steel 304 Economic Freeze Drying Unit Lyophilization Equipment With 50KGS Per Batch Capacity | Power Consumption: | 30kw |
---|---|---|---|
Material: | Stainless Steel 304 | Opening Angle: | >110 Degree |
Capacity: | 50KGS Per Batch | Total Usable Area Of Shelves: | 5.4M2 |
Maximum Temperature Of Lamellar: | +80℃ | The Number Of Board Layers: | 9+1 |
Material: | Stainless Steel | Key Word: | Freeze Drying Machine |
Highlight: | vacuum freeze dryer,freeze dryer lyophilizer |
Product introduction of Freeze Drying Machine
Applied for meat, vegetables, fruits, aquatic products, soy milk, beverages, soups, health care and other types of freeze-dried food processing equipment. Use products meet natural, nutrition, convenience requirements.
Feature of Freeze Drying Machine
1. Stainless steel is polished with excellent brand to ensure surface roughness to ensure sterility requirements
2. 3D design, consistent with CGMP requirements of complete sterilization.
3. Cabinet, board level, and hose are tested after multiple procedures to ensure without leakage
4. Germany imported automatic welding machine is the best guarantee for the quality of the products you
Main Parameter of Freeze Drying Machine
SED-5DG Vacuum Freeze Dryer | ||||||||||
Product structure | Technical parameters | Remarks | ||||||||
Design standard:cGMP | ||||||||||
※ Public distribution | ||||||||||
Power(three-phase and five-wire system) | 380V/50HZ | |||||||||
Power consumption | 30kw/100A | |||||||||
Cooling water qty | ≥10m3/h(T≤25℃,P=0.2-0.3Mpa) | |||||||||
Whole volume Appearance size |
Dry chamber and Condenser: D=φ1300mm L=2000mm L=3000mm W=2000mm H=2000mm |
(According to design standard) | ||||||||
Structure | Split | |||||||||
Total weight | 3000kg | (According to design standard) | ||||||||
※ Drying body | ||||||||||
Performance parameters | ||||||||||
Design and manufacturing standards | Vacuum vessel design standards | |||||||||
Chamber design pressure | -0.1Mpa | |||||||||
Chamber design temperature | 90℃ | |||||||||
Chamber Vacuum leak rate | 25×10-3 Pa.m3/sec | |||||||||
main components | ||||||||||
Chamber material | SUS304/δ5mm | |||||||||
Geometry Box | Horizontal barrel type | |||||||||
Lock method | Rotate and locking type by handle | |||||||||
Direction of opening door | open right (the user can choose) | |||||||||
Opening angle | >110 degree | |||||||||
Door materials | SUS304 | |||||||||
Box external decoration | SUS304 | |||||||||
The roughness of chamber and door | Ra≤0.6μm | |||||||||
Insulation material | Rubber insulation board/δ70mm | |||||||||
Door observation window | Φ300mm observation window at central portal | One piece | ||||||||
Observation window box | Φ200mm the side of the observation window with a lamp | One piece | ||||||||
Door sealing | O type sealing |
1 pair |
||||||||
Technical Features | ||||||||||
1 | Stainless steel is polished with excellent brand to ensure surface roughness to ensure sterility requirements | |||||||||
2 | 3D design, consistent with CGMP requirements of complete sterilization. | |||||||||
3 | Cabinet, board level, and hose are tested after multiple procedures to ensure without leakage | |||||||||
4 | Germany imported automatic welding machine is the best guarantee for the quality of the products you | |||||||||
※ Shelf | ||||||||||
Performance parameters | ||||||||||
Total usable area of shelves | 5.4M2 | |||||||||
Maximum water fishing | ≥100Kg | |||||||||
Minimum temperature of lamellar | ≤-50℃ | |||||||||
Maximum temperature of lamellar | +80℃ | |||||||||
Main components | ||||||||||
Lamellar material | SUS304/δ15mm | |||||||||
Surface roughness | Ra≤0.8μm | |||||||||
The number of board layers | 9+1 (Compensation Board) | |||||||||
Shelf spacing | 70mm | |||||||||
Shelf dimensions | 600 mm×1000mm | seamless combination with rectangular tube | ||||||||
Bottle / disk protection | Shelf with anti bottles / tray fall protection rack | |||||||||
Product temperature probe | Import thermocouple (Origin: United | 4 pieces | ||||||||
Technical Features | ||||||||||
1 | Shelf has high strength and can withstand long-term use; | |||||||||
2 | Shelf through a dedicated machining, can guarantee high demand flatness; | |||||||||
3 | Plate layers with constant temperature function, can realize the automatic operation of the freeze drying process. | |||||||||
※ Condenser | ||||||||||
Performance parameters | ||||||||||
Design Standard | Vacuum vessel design standards | |||||||||
Cabinet design pressure | -0.1Mpa | |||||||||
Tank design temperature | 90℃ | |||||||||
Min temperature of condenser | ≤-70℃±3℃ | |||||||||
※ Control system | ||||||||||
Performance parameters | ||||||||||
Software system meet | FDA 21CFR PART II | |||||||||
Freeze-drying method
|
Manual and automatic switch | |||||||||
Process setting method | management | |||||||||
Main components | ||||||||||
Control software | SED-5DG | one set | ||||||||
Control mode | Touch screen +PLC (automatic + full manual emergency operation) | |||||||||
PLC | SIEMENS 216-2BD23 | 1 piece | ||||||||
Freeze-drying curves | Automatically record and print freeze-drying curve | |||||||||
Heating module | SIEMENS | one set | ||||||||
Touch screen | SIEMENS 7inch | 1 set | ||||||||
Display | Lenovo 17 inch LCD Monitor | 1 set | ||||||||
Current protection device | SIEMENS | one set | ||||||||
AC contactor | SIEMENS | one set | ||||||||
Small Relay | OMRON | one set | ||||||||
Temperature Sensor | Import thermocouple (Origin: United | 8pieces | ||||||||
Regulated power supply | Taiwan MW companies | Each one | ||||||||
Electrical cabinets | linked at the rack on / placed separately | 1 piece | ||||||||
Terminal Blocks | made in china | Machine capacity | ||||||||
Wire and Cable | Shanghai Panda Wire Co., Ltd. (China Top Brand) | Machine capacity | ||||||||

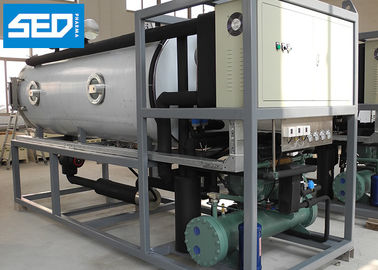

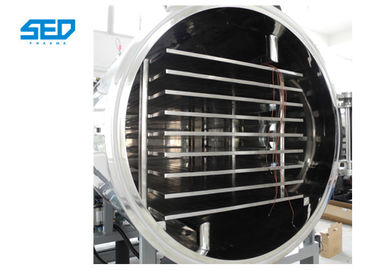

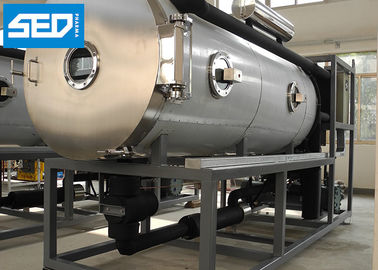

Product Show of Freeze Drying Machine
Application of Freeze Drying Machine
