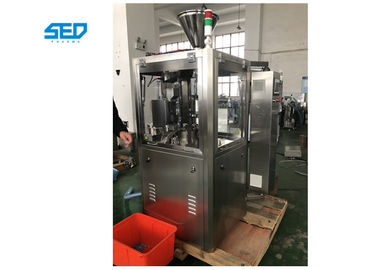

SED-200J Stainless Steel Small Capsule Filling Machine With Speed 200 Capsules Per Minute

SED-200J Stainless Steel Small Capsule Filling Machine With Speed 200 Capsules Per Minute

  • High Light

    capsule filling equipment

    ,

    automatic capsule filler

  • Name
    SED-200J Stainless Steel Small Capsule Filling Machine With Speed 200 Capsules Per Minute
  • Speed
    200 Capsules Per Minute
  • Quantity Of Mould Bores
    3 PCS
  • Material
    Stainless Steel
  • Power Supply
    380V 50HZ Three Phase
  • Weight
    900kgs
  • Noise
    <75dB(A)
  • Power
    3.2kw
  • Place of Origin
    China
  • Brand Name
    SED Pharma
  • Certification
    CE
  • Model Number
    SED-200J
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Wooden Case
  • Delivery Time
    40 Working days after receiving advanced payment or original L/C
  • Payment Terms
    T/T,L/C, MoneyGram,Cash
  • Supply Ability
    30 Sets Per Month

SED-200J Stainless Steel Small Capsule Filling Machine With Speed 200 Capsules Per Minute

SED-200J Stainless Steel Small Capsule Filling Machine With Speed 200 Capsules Per Minute



Machine Parameters of Capsule filling machine

Model: SED-200J
Capacity 200capsules/minute
Manchine suitable for: Capsule Size#00 to 5
Power supply: 380V 50Hz (it can be changed depend on your requirement)
Power consume: 3.2kw
Noise standard: ≤75dB(A)
Weight: 900kgs
Overail dimension: 600*800*1750mm



Product Overview  of Capsule filling machine



SED-120J Fully Automatic Capsule Filling Machine is used to fill powder, grain, tablet. It adopts multi-bore dosing, intermittent motion and timing frequency conversion.



It is suitable for automatically completing capsule feeding, separating, filling, (waste capsule rejecting),closing,finished product ejecting for powder or tiny pillmedicine in capsule. It is designed sophisticatedly by our factory according to the practice on domestic, fully accord with the GMP standard.



Main Feature of Capsule filling machine



1. It has been improved the inner design turret, and imports beeline bearings for each machine from Japan directly, so that it can be sure a longer usage-life and precision of machine.


2. The working station cam runs under the good lubricating condition, and maintains the inner lubrication of cam slot to a full extent, increasing the pressure pulverization oil pump, thus extends the operation life of the spare parts.


3. It is controlled by the computer, has a stepless timing with the frequency-conversion, the numeral showing makes an easy operation and clear appearance.



Working Principle of Capsule filling machine



The working principle of the automatic capsule filling machine is divided into two parts, which are the movement of the capsule and the filling of the medicine:


1. Movement of the capsule
During the filling process of the intermittent capsule filling machine, the movement of the capsule depends on the indexing box for intermittent and discontinuous rotation. The filling volume of the capsule is mainly determined by the volume of the metering

disc hole.



The hollow capsule is in the capsule hopper, the main board moves up and down, the capsule enters the capsule guide groove by its own gravity, and then the horizontal fork and the vertical plug are used to make the capsule cap upward and the capsule body downward into the upper and lower modules. The capsule body and capsule cap are separated under the action of the device, and then the module enters the powder filling station.


2. Drug filling
The sensor in the powder holding ring controls the screw feeding rod above it, and the medicine is continuously added to make the height of the powder in the powder holding ring constant. position, push the drug column into the capsule body.



After that, it enters into the capsule rejection, capsule locking, finished capsule discharge, module cleaning station in turn, and then enters a new round of station cycle, and the cycle begins again and again.



Product Show of Capsule filling machine​

SED-200J Stainless Steel Small Capsule Filling Machine With Speed 200 Capsules Per Minute 0

SED-200J Stainless Steel Small Capsule Filling Machine With Speed 200 Capsules Per Minute 1





Application of Capsule filling machine



The automatic capsule filling machine is mainly used for filling powder or pellet capsule medicines in medicine, hospital preparation room, health care products and other industries.

SED-200J Stainless Steel Small Capsule Filling Machine With Speed 200 Capsules Per Minute 2

SED-200J Stainless Steel Small Capsule Filling Machine With Speed 200 Capsules Per Minute 3SED-200J Stainless Steel Small Capsule Filling Machine With Speed 200 Capsules Per Minute 4SED-200J Stainless Steel Small Capsule Filling Machine With Speed 200 Capsules Per Minute 5SED-200J Stainless Steel Small Capsule Filling Machine With Speed 200 Capsules Per Minute 6SED-200J Stainless Steel Small Capsule Filling Machine With Speed 200 Capsules Per Minute 7
