High Efficiency Pill Coating Machine Film Coating Machine
Product Description of Coating Machine
The SED-150GB-B Tablet Coating Machine is kind of equipment integrating elegance, high efficiency, energy-saving, safety, easy to clean, which is applied for coating traditional Chinese and Western tablets and pills (including micro-pills, small pills, water-bindered pills, drip pills and granulated pills) with sugar, organic film, water soluble film, slow and controlled release film in the fields of pharmacy, food and biology etc.
Product Parameters of Coating Machine
| Item/model |
SED-150GB-B |
Loading Capacity
(kg/batch) |
150kg |
Drum Revolution
(r/min) |
2-20rpm |
|
Main
Machine Power
|
2.2KW |
| Diameter of coating drum |
1200mm |
| Power of air exhaust cabinet motor |
5.5KW |
| Air exhaust flow |
7419m3/h |
| Power of hot air cabinet motor |
1.5KW |
| Air supply volume |
3517m3/h (with three-stage filter) |
| Weight of main machine |
900kgs |
| Clean air pressure |
≥0.4MPa |
| Air consumption |
0.8 m3/min |
Performance and Characteristics of Coating Machine

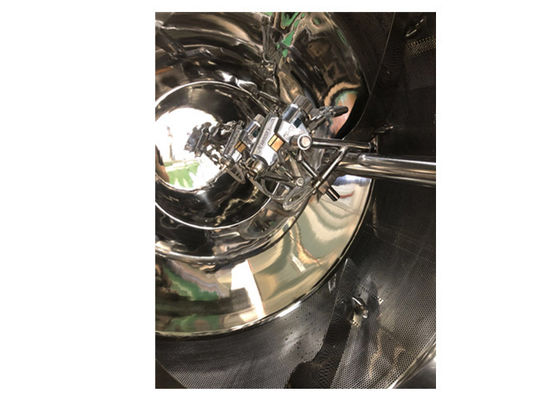

1) The drum of the main machine has a closed poreless structure and is equipped with a flow-guiding sheet. Tablets can make easy and smooth rotation without fragment and chipped edge in the drum due to mirror polishing of its wall and flow-guiding sheet, which greatly improves the yield.
2) During air intake, three times filtration involving primary filtration, medium filtration and high filtration, can reach 100,000 level purification. During air exhaust, dust abatement can reach 99% by adopting a bag-type dust extractor. Equipped with a vibration damper, the machine is in normal run with noise lower than 75dB, which conforms to environmental protection requirements.
3) A specially designed air source exchange system features exchange of hot air an cold air depending on the technological requirements, so to say, the fan blade can be regarded as air inlet or air outlet. An eye pitch explosion-proof lamp is equipped in the drum so as to clearly view all material in run for the convenience of accurate control of technological change.

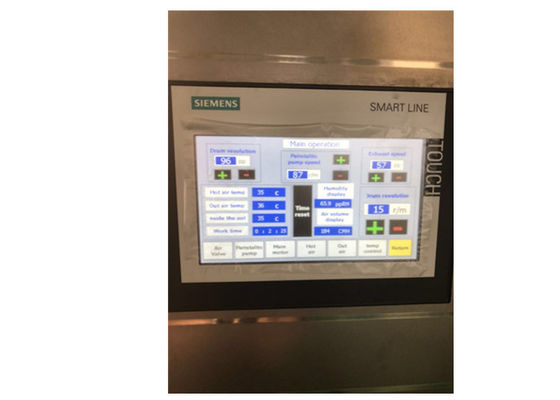

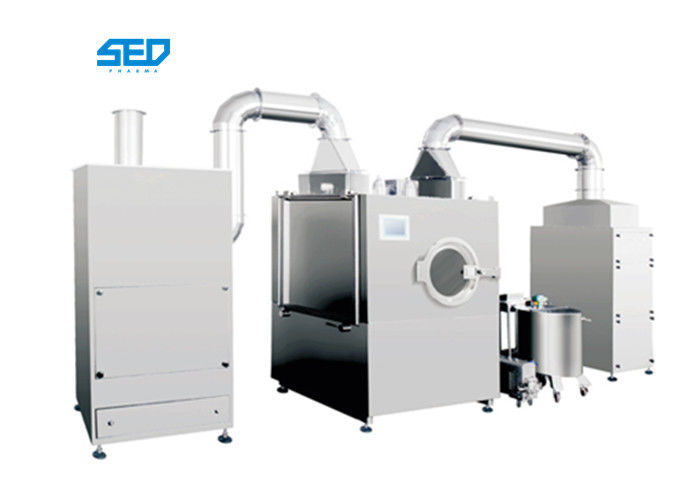

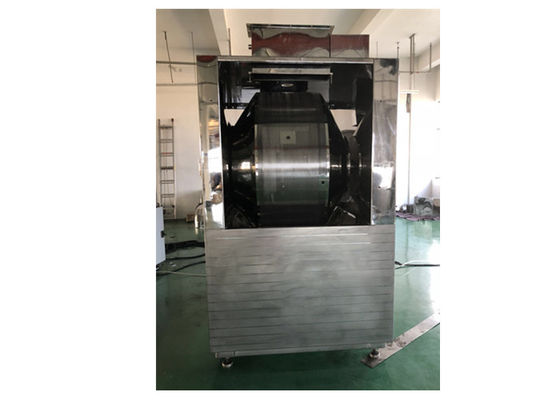

Products Show of Coating Machine
Application of Coating Machine
