Product Details:
|
| Name: | Mini Plastic Ampoule Filling And Sealing Machine With Automatic | Filling Volume: | 1-2ml |
|---|---|---|---|
| Power: | 0.75kw | Production Capacity: | 12000-14000 Bottles/hour |
| Overall Dimension: | 1850*1100*1300mm | Oxygen Consumption: | 2-3m/h |
| Material: | Stainless Steel | Key Word: | Ampoule Filling And Sealing Machine |
| Highlight: | 2ml Ampoule Filling Sealing Machine,Mini Ampoule Filling And Sealing Machine,1ml Ampoule Filling Sealing Machine |
||
Mini Plastic Ampoule Filling And Sealing Machine With Automatic
Product Description of Ampoule Filling And Sealing Machine
This machine is a two-position step-by-step transmission system. Two bottles are used as a group at a time, and they are sent to each point separately to complete the separation and delivery of bottles.
The machine consists pre-filling with nitrogen, material filling, filling with nitrogen, preheating, sealing and other processes.
Main Parameter of Ampoule Filling And Sealing Machine
|
Model |
SED-8AGL-2-C |
| Dimension | 1850*1100*1300mm |
| Motor Power | 0.75kw |
| Power supply | 220V/380V 50/60HZ 3phase |
| Production capacity | 12000-14000 bottles/hour |
| Filling volume | 1-2ml |
| Material | Stainless steel 304 |
Main Features of Ampoule Filling And Sealing Machine
1.The ampoule bottle's feeding can be stopped while the machine is not stopped.
2.The filling can be stopped mechanically when lack of ampoule bottle.
3.There is the adjusting and displaying function for the rotating speed.
4.There are many filling heads in the filling stations.
5.Besides liquid, compressed air or nitrogen can be simultaneously filled from the front and the back.
6.Ampoule bottles' moving in/out is smooth and steady during the production.

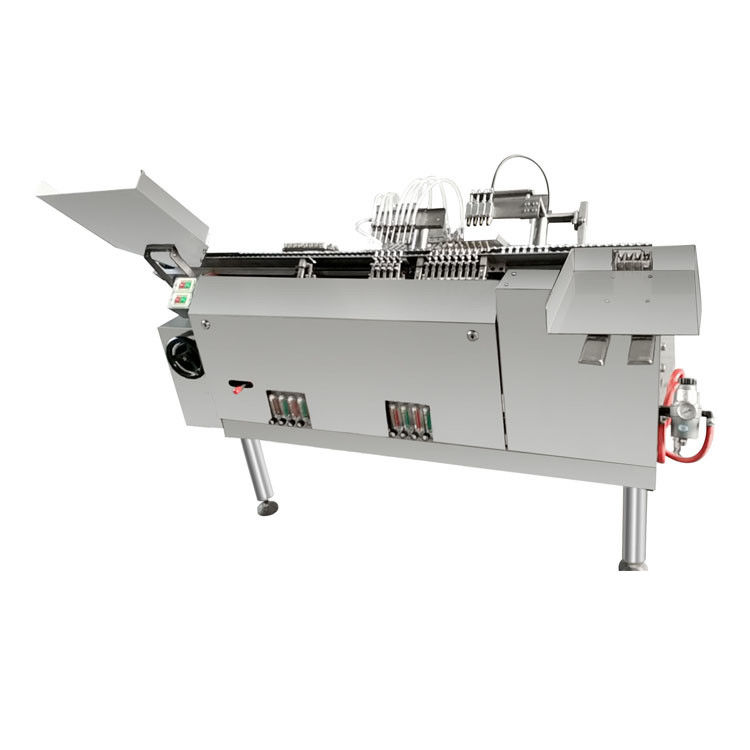

Product Show of Ampoule Filling And Sealing Machine
Application of Ampoule Filling And Sealing Machine
It is suitable for small sample trial production in the pharmaceutical industry, can make filling and sealing of ampoules under aseptic conditions.
