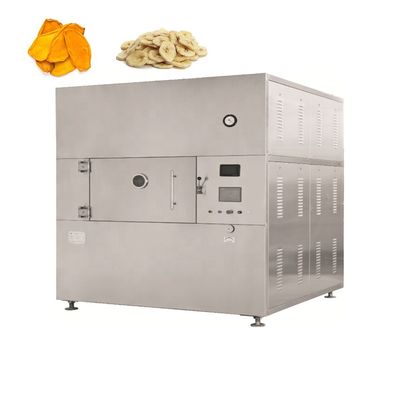

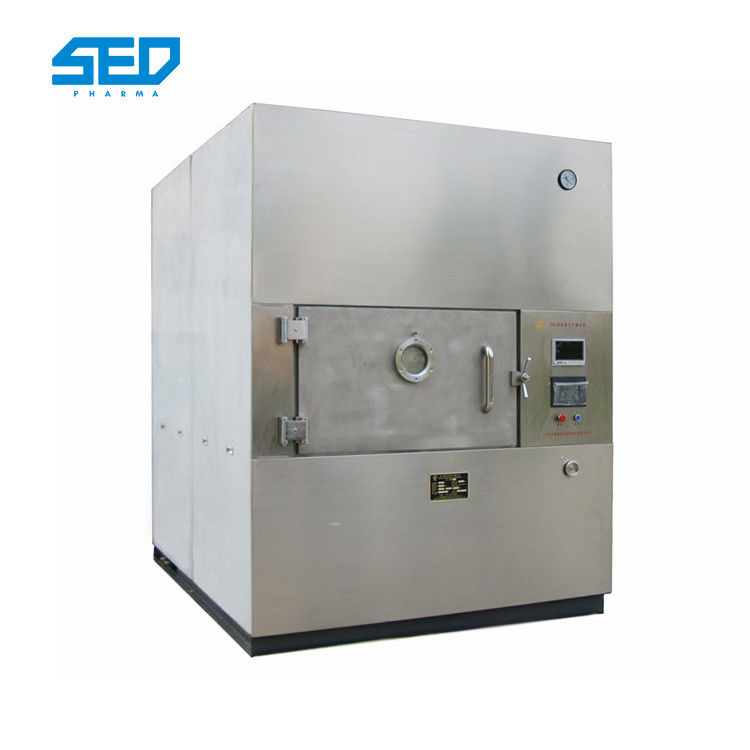

Fruit Vacuum Microwave Dry Machine

Application

Low-temperature fast drying of medicinal extracts, Chinese herbal medicines, Chinese and Western medicines, and health care products; it is also widely used in low-temperature fast drying of heat-sensitive materials such as food, bioengineering, chemicals, and materials.

Principle

Under the action of the rapidly changing high-frequency electromagnetic field, the material rotates through the material tray, and its polarity orientation will change with the change of the external electric field, resulting in the movement of molecules and the effect of mutual friction. At this time, the energy of the microwave magnetic field is converted into heat energy in the muons, which increases the temperature of the material, and the continuous magnetic field energy is converted into heat energy, so that the material can be quickly dried.

Main features

1. Integrated power module: high degree of integration and intelligence, stable operation and higher efficiency.

2. Magnetron: Direct water-cooled industrial grade 1050w, based on 24-hour continuous work design, long life and stable work.

3. Microwave power: The microwave power of a single tube can be automatically adjusted online, the power density is more uniform, and the energy saving is obvious.

4. Temperature measurement: Infrared fixed-point positioning temperature measurement ensures the accuracy of temperature control and is more conducive to the improvement of the quality of dry materials.

5. Feeding and discharging: For each feeding and discharging operation, the material tray always stops at a suitable position at the furnace door, which is convenient for operation and reduces labor intensity.

6. Monitoring system: dual configuration of video and viewing holes, timely grasp the drying degree of materials, and timely understand the status of materials.

7 Water flow and temperature detection: completely solve the equipment damage caused by insufficient water flow and excessive temperature caused by the blockage of the water outlet.

8. Automatic balance: The self-locking device keeps the liquid material in a balanced state all the time, which solves the problem of overturning.

9. Waveguide: Rectangular waveguide, the best match with the magnetron, the standing wave is smaller, the installation is convenient, and the energy conversion efficiency is higher.

10. Microwave cavity: computer simulation design, the magnetron power and layout are harmonious and unified with the cavity volume, and the better matching ensures the uniform radiation of microwave power.

11. Transmission system: rotary rotation ensures the uniformity and operability of drying.

12 Vacuum: water ring vacuum pump, high efficiency, energy saving, low noise.

13. Control system: PLC, HMI, VVVF, SCR and well-known brand low-voltage electrical appliances form a closed-loop automatic control system. The clear operation interface and simple operation reflect the leading characteristics of Kang brand microwave technology.

14. Whole machine structure: Based on humanized and GMP design, it fully meets the needs of large-scale industrial production. It is sturdy, durable, practical, and has advanced surface treatment technology.

Main Technical Data
