Product Details:
|
| Name: | Continuous Fully Automatic Cartoning Machine High Speed For Bottles Vials | Condition: | New |
|---|---|---|---|
| Packaging Type: | Cartons | Application: | Medical |
| Voltage: | 380v/50hz | Speed: | 260 Boxes Per Minute |
| Control Mode: | Touch Screen And PLC Control | Suitable Carton Size: | (65-120)mm×(30-60)mm×(30-60)mm |
| Material: | Stainless Steel | Key Word: | Automatic Cartoning Machine |
| High Light: | vertical cartoning machine,horizontal cartoning machine |
||

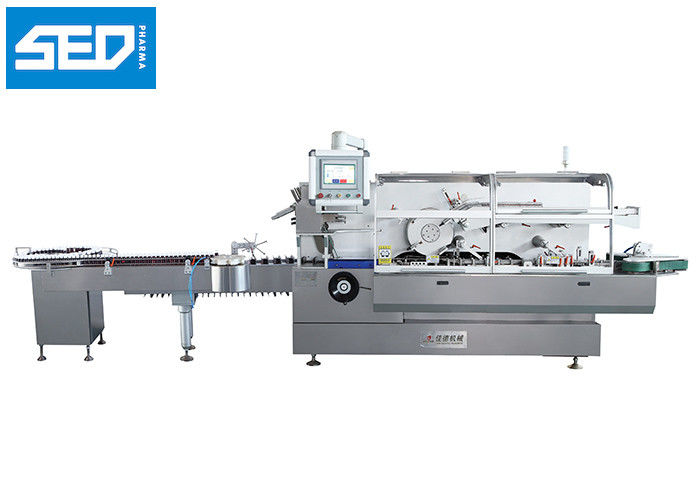

Continuous Fully Automatic Cartoning Machine High Speed For Bottles Vials
Product Description of Auto Cartoner Machine
| Item | Technical parameters | |
| Encasing speed | 260 boxes/min | |
| Box | Quality requirement | 250-350g/M2[Base on carton size] |
| Dimension range(L×W×H) | (70-180)mm×(35-80)mm×(14-50)mm | |
| Leaflet | Quality requirement | 60-70g/M2 |
| Unfolded leaflet specification(L×W) | (80-250)mm×(90-170)mm | |
| Fold range(L×W) | [1-4]Fold | |
| Compressed air | Working pressure | ≥0.6mpa |
| Air consumption | 160-200L/min | |
| Power supply | 380V 50HZ | |
| Motor power | 5kw | |
| Machine dimension(L×W×H) | 6800mm×1600mm×1860mm | |
| Machine weight | 3400kg | |
Feature of Auto Cartoner Machine

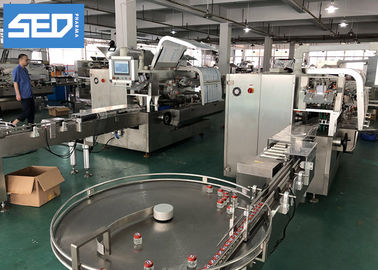

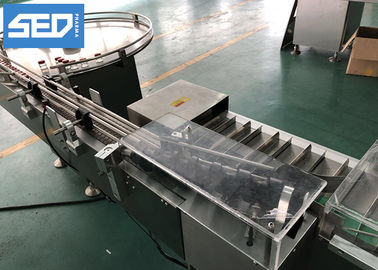

Show of Auto Cartoner Machine
Application of Auto Cartoner Machine
Automatic High speed continuous cartoning machine is new model which innovation design base on bringing in foreign advanced technology, also strictly according to pharmaceutical industry “GMP “standard to manufacture.
With high efficiency, high performance production capacity, leaflet folding and conveying, carton opening and forming, posterior pushing structure and related technology all reach Europe and USA standards.
