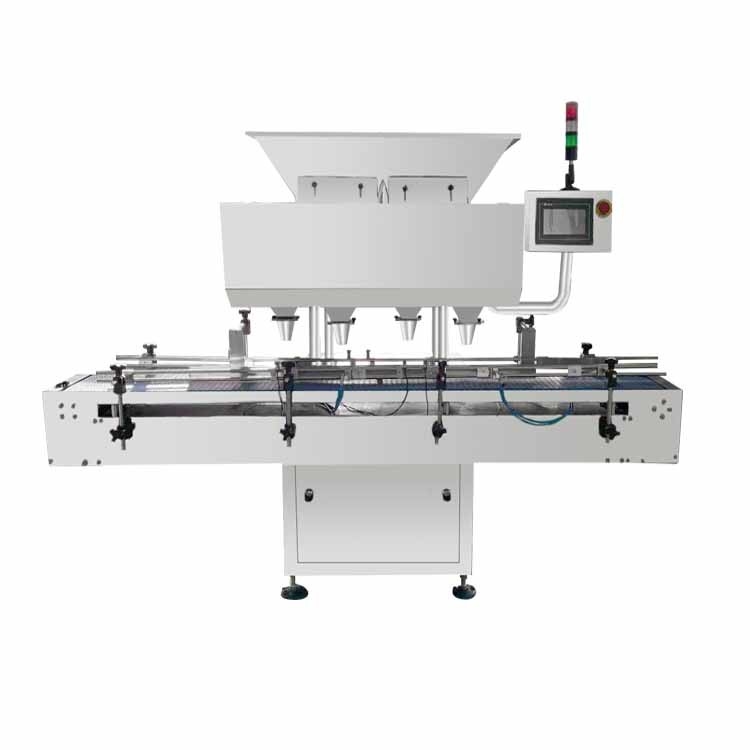

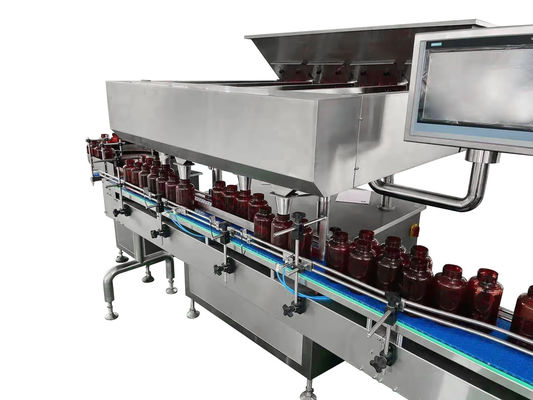

SED-32S 32 Passageway Soft Electronic Capsule Counter Machine 16000pcs / Min Max Speed

SED-32S 32 Passageway Soft Electronic Capsule Counter Machine 16000pcs / Min Max Speed

  • High Light

    electronic pill counter

    ,

    pill counter machine

  • Name
    SED-32S 32 Passageway Soft Electronic Capsule Counter Machine 16000pcs / Min Max Speed
  • Applicable Bottle Shape
    Round,square Plastic Bottle
  • Filling Material
    Capsules; Softgels; Pills
  • Production Capacity
    70~90 Bottles Per Minute(It Depends On Bottle Size; Filling Quantity And Tablet Size)
  • Max Speed
    14998pcs/min
  • The Setting Range Of Bottling Volume
    2—9999
  • Overall Dimension
    2160*1530*1700mm
  • Weight
    710kg
  • Place of Origin
    China
  • Brand Name
    SED Pharma
  • Certification
    CE
  • Model Number
    SED-32-SLJ
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Wooden Case
  • Delivery Time
    35 days after receiving the deposit
  • Payment Terms
    T/T,L/C, MoneyGram,Cash
  • Supply Ability
    30 Sets Per Month

SED-32S 32 Passageway Soft Electronic Capsule Counter Machine 16000pcs / Min Max Speed

SED-32S 32 Passageway Soft Electronic Capsule Counter Machine 16000pcs / Min Max Speed

detailed parameters



Model JF-32(Double funnels)
Applicable bottle shape round,square plastic bottle
Filling material capsules; softgels; pills
Production capacity 70~90 bottles per minute(It depends on bottle size; filling quantity and tablet size)
Max speed 14998pcs/min
Accuracy rate >99.5%(higher than the industrial standard )
Container size Dia.:20~100mm Height:40~240mm
The setting range of bottling volume 2—9999
  70L
Power supply AC220V 50Hz/AC110V 60HZ 0.6kw
Air pressure 0.45~0.7Mpa
Overall dimension 2160*1530*1700mm
Weight 710kg



product description

The block bottle device on the passing bottle-track of the conveying bottle system make the bottles which came from the previous equipment stay in the bottling position,waiting to be filled in.The medicine goes into the medicine container in order by the vibration of the feeding corrugated plate.



There’s a counting photoelectric sensor installed on the medicine container,after counting of the medicine in the medicine container by the counting photoelectric sensor, the medicine goes into the bottle in the bottling position.



trait



1.Strong compatibility:
The electronic counting machine can count bottles and various kinds of solid preparation or solid granules including tablets, heteroideus tablets, capsules, soft capsules (both transparent and non-transparent), pills etc.

2.Vibration cutting:
12 channel vibrators under homogeneous materials, unique patent agencies for steady outputting without damage.

3.Dust-proof:
The capsule counting machine adopts the anti dust photoelectric sensing technology exclusively developed by Tianjiu, which can also work stably under high dust circumstances.
The dust collection box can reduce dust pollution. (Optional)

4.Correct counting:
With automatic photoelectric sensor, the error of counting is far beyond national standard. The photoelectric sensor can check automatically if there's no bottle and stops automatically.
The filling spout is specially structured to prevent the material from blocking. Even small bottles can be filled quickly. (Optional)

5.High intelligence:
Various alarm and control functions like no bottle no counting, self checking and auto eliminating of abnormal bottles and tablets;

6.Easy operation:
The electronic counting machine is intellectualized designed. All kinds of operation data can be set freely. It can store 10 groups of parameters for use.

7.Convenient maintenance:
After simple training, the capsule counting machine can be operated easily. It is convenient to disassemble, clean and change components without any extra tools.
