Product Details:
|
| Name: | 32 Passageway Soft Electronic Capsule Counter Machine With Aotumatic | Applicable Bottle Shape: | Round,square Plastic Bottle |
|---|---|---|---|
| Filling Material: | Capsules; Softgels; Pills | Production Capacity: | 10-120 Bottles Per Minute(It Depends On Bottle Size; Filling Quantity And Tablet Size) |
| Bottle Size: | Diameter: ≤50mm Height:40-180mm | The Setting Range Of Bottling Volume: | 2—9999 |
| Overall Dimension: | 2160*1530*1700mm | Weight: | 710kg |
| Material: | Stainless Steel | Key Word: | Capsule Counting Machine Tablet Bottling Machine |
| High Light: | electronic pill counter,pill counter machine |
||
32 Passageway Soft Electronic Capsule Counter Machine With Aotumatic
Product Description of Tablet Counter Machine

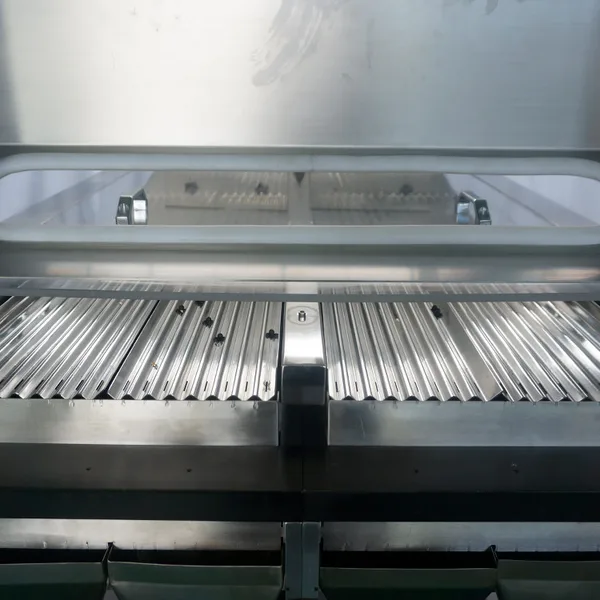

The block bottle device on the passing bottle-track of the conveying bottle system make the bottles which came from the previous equipment stay in the bottling position,waiting to be filled in.The medicine goes into the medicine container in order by the vibration of the feeding corrugated plate.
There’s a counting photoelectric sensor installed on the medicine container,after counting of the medicine in the medicine container by the counting photoelectric sensor, the medicine goes into the bottle in the bottling position.
Technical Parameters of Tablet Counter Machine
| Model | SED-32S |
|
Application |
other solid object under machine range |
| Production capacity |
10-120bottles(30-100 pcs/bottle)/min |
|
Bottle Size |
Diameter: ≤50mm Height:40-180mm |
|
Counting Size |
Pills with diameter of 22mm or less are compatible with 000-5# capsules soft capsules with diameters of 3.5mm-22mm plain tablets special-shaped tablets sugar-coated tablets |
| The setting range of bottling volume | 2—9999 |
|
Hopper Volume |
70L |
|
Compressed air |
0.6Mpa 5L/min |
|
Power |
220V/50HZ 1.3KW |
| Overall dimension | 2160*1530*1700mm |
| Weight | 710kg |
Trait of Tablet Counter Machine
1.Strong compatibility:
The electronic counting machine can count bottles and various kinds of solid preparation or solid granules including tablets, heteroideus tablets, capsules, soft capsules (both transparent and non-transparent), pills etc.
2.Vibration cutting:
12 channel vibrators under homogeneous materials, unique patent agencies for steady outputting without damage.
3.Dust-proof:
The capsule counting machine adopts the anti dust photoelectric sensing technology exclusively developed by Tianjiu, which can also work stably under high dust circumstances.
The dust collection box can reduce dust pollution. (Optional)
4.Correct counting:
With automatic photoelectric sensor, the error of counting is far beyond national standard. The photoelectric sensor can check automatically if there's no bottle and stops automatically.
The filling spout is specially structured to prevent the material from blocking. Even small bottles can be filled quickly. (Optional)
5.High intelligence:
Various alarm and control functions like no bottle no counting, self checking and auto eliminating of abnormal bottles and tablets;
6.Easy operation:
The electronic counting machine is intellectualized designed. All kinds of operation data can be set freely. It can store 10 groups of parameters for use.
7.Convenient maintenance:
After simple training, the capsule counting machine can be operated easily. It is convenient to disassemble, clean and change components without any extra tools.

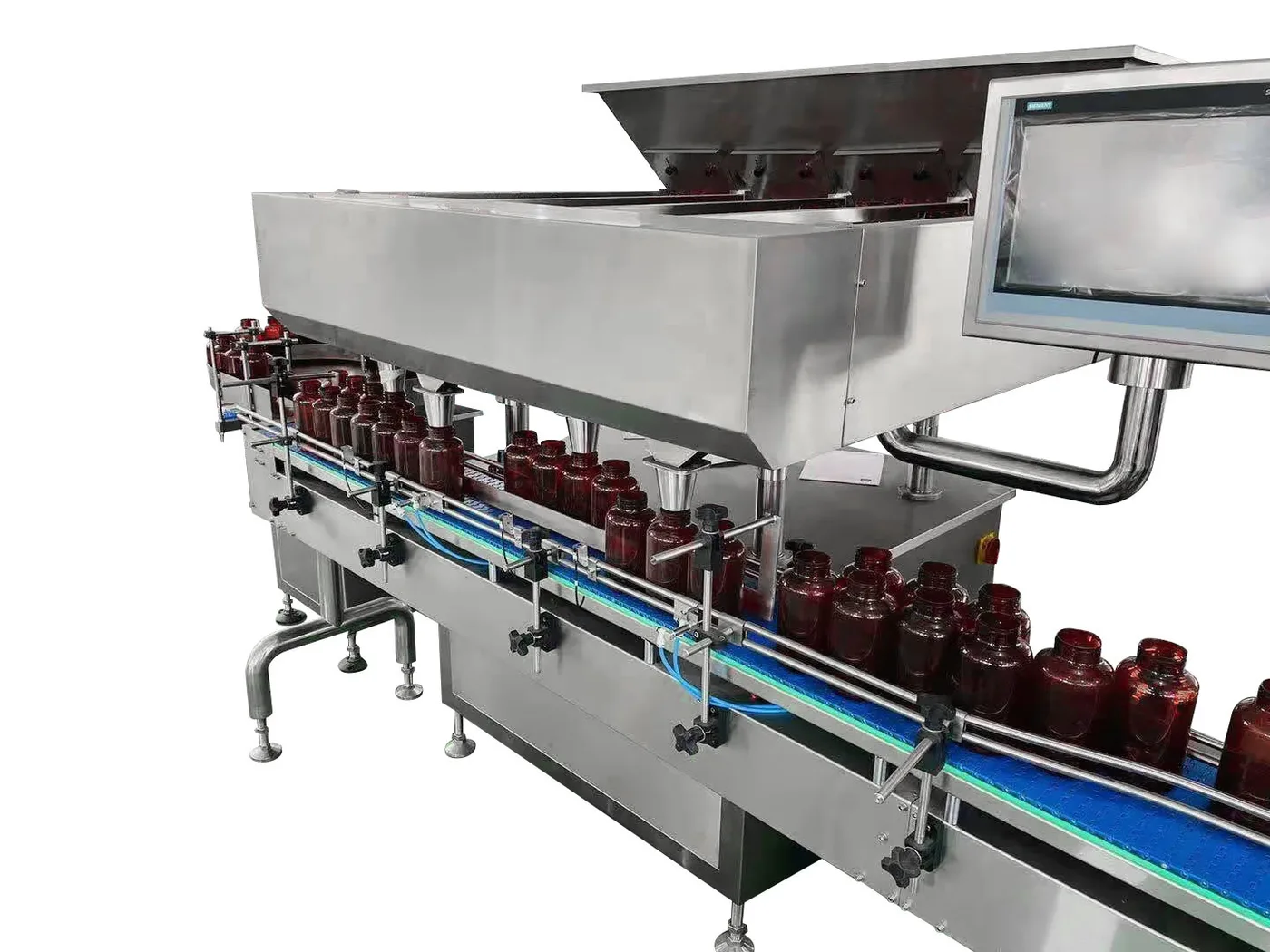

Product Show of Tablet Counter Machine
Application of Tablet Counter Machine
This machine uses the most advanced anti-high dust electronic counting technology. Tablets (including shaped tablets), hard capsules, soft capsules (transparent, opaque) pellets, and other solid particles ranging in size from 3 to 12 mm can be counted
and dispensed. Can be bottled, boxed, bagged. Fully compliant with GMP requirements, especially suitable for research institutions, hospitals, new small pharmaceutical factories, health products factories
