Automatic Bottle Capping Machine For Protein Powder Bottle

Automatic Bottle Capping Machine For Protein Powder Bottle
Automatic Bottle Capping Machine For Protein Powder Bottle

Large Image :  Automatic Bottle Capping Machine For Protein Powder Bottle

Product Details:
Place of Origin: Zhejiang, China
Brand Name: SED-pharma
Certification: CE
Model Number: SED-CG
Payment & Shipping Terms:
Minimum Order Quantity: >=1 Pieces
Price: $10,000.00 / Piece
Packaging Details: Export standard packing
Delivery Time: Est. Time(days)-15-To be negotiated
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 30 Piece/Pieces per Month

Automatic Bottle Capping Machine For Protein Powder Bottle

Description
Name: Automatic Bottle Capping Machine For Protein Powder Bottle Keywords: Capping Machine,automatic Capping Machine,capping Tightening Machine
Dimension(L*W*H): 2280x1080x1940mm Voltage: 220V 50HZ
Production Capacity: 10-100bottles/min Automatic Grade: Automatic



The working process of SED-CG series high-speed rolling cap screwing machine is divided into: automatic bottle feeding, automatic cap management, cap feeding, capping, capping (or capping), and automatic bottle discharging. It is a fully automatic packaging equipment designed by our company in strict accordance with the national GMP standards and process requirements.
The design and manufacturing principle of this machine is to provide the best, most accurate and most efficient capping work under the highest operating efficiency. The main transmission part of the machine is placed in the box to avoid material pollution caused by wear of the transmission mechanism and other reasons. All parts in contact with materials are polished with high precision. This machine is equipped with safety protection devices such as shutdown without cover and startup with cover. Most of the parts of the whole machine are made of aluminum alloy, and the shell is made of high-quality stainless steel plate, which makes the whole machine light and easy to handle. The height and size of the bottle can be adjusted by the user according to the height and size of the bottle cap within the scope of application. In particular, the motor control system for bottle clamping, capping and conveying is controlled by a frequency converter. Users can freely set the production volume within the design range of the machine, which provides more convenience for production arrangement and process formulation. To sum up, SED-CG series high-speed rolling capping machine is a high efficiency equipment with wide application scope, convenient operation, stable operation, convenient cleaning, convenient maintenance and durability.


Machine Parameters of Bottle Capping Machine

Product Name Fully Automatic Capping machine
Product model SED-CG
Production capacity 10-100 bottles / min
Applicable bottle type 15-500ml round, square and shaped bottle
Rated voltage 220V 50HZ
Rated power 1.8KW
Host weight 510KG
Outline size 2280×1080×1940mm

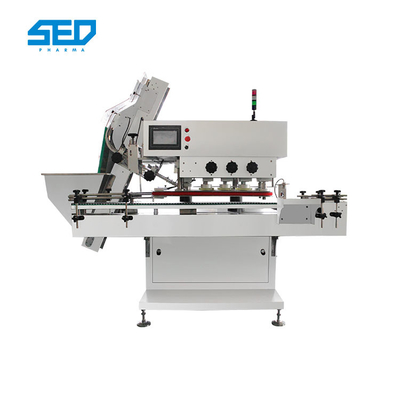

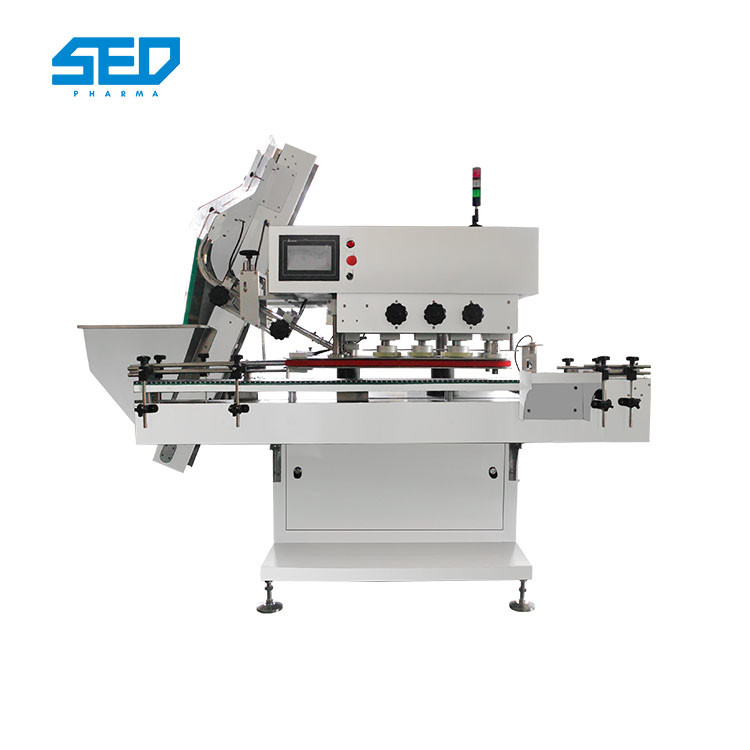

Products Show of Automatic Capping Machine

Automatic Bottle Capping Machine For Protein Powder Bottle 0Automatic Bottle Capping Machine For Protein Powder Bottle 1Automatic Bottle Capping Machine For Protein Powder Bottle 2Automatic Bottle Capping Machine For Protein Powder Bottle 3
The capping machine is suit for all kind of bottles,such as protein powder bottle.
Automatic Bottle Capping Machine For Protein Powder Bottle 4
