Product Details:
|
| Name: | Automatic Spice Powder Filling Machine With 4000-5000 Bottles / H | Material: | Stainless Steel |
|---|---|---|---|
| Production Capacity: | 4000-5000 Bottles / H | Powder Filling Volume: | 0.5g~3g |
| Power Supply: | 220/50hz | Number Of Filling Heads: | 2pcs |
| Air Pressure: | 0.5~0.8Mpa | Power: | 3.5KW |
| Weight:: | 900KG | Size:: | L 2000 × W1100 × H 2400mm |
| Key Word: | Spice Powder Filling Machine | ||
| High Light: | Automatic Spice Powder Filling Machine,5000 Bottles/H Spice Powder Filling Machine |
||
Product Description of Powder Filling Machine
Powder filling and stopper machine is a special equipment for powder quantitative filling/stopper in pharmaceutical, lightening,food and other industries. It can automatically feed and filling.
The whole machine adopts 304_stainless steel with strong corrosion resistance. PLC touch screen human-machine interface is selected. It is convenient and intuitive to operate.
Servo motor is used to drive and special screw is used for filling. It has high precision, fast speed, high output, high positioning accuracy of the structure of the equally disc feeding bottle, wide adjusting range of powder loading, small error, fast and convenient, and it is applicable.
In the metering and packing of various powders, transmission system components are processed with high-quality steel, the surface is blackened and hardened to improve service life. The machine is equipped with 304_stainless steel frame and PC transparent plate protective cover, materials contact parts is SUS316L
Product parameters of Powder Filling Machine
|
Material
|
Stainless Steel
|
| Capacity | 4000-5000 bottles / h |
| Powder filling volume | 0.5g~3g |
| Power supply | 220/50hz |
| Number of filling heads | 2pcs |
|
Voltage:
|
220V/380V
|
| Filling accuracy | ≤3% |
|
Weight:
|
900KG |
|
Size:
|
L 2000 × W1100 × H 2400mm |
Feature of Powder Filling Machine
1. Use screw measurement for powder type materials, with screw
feeder to achieve feeding, metering.
2. High precision, high quality, high high speed and long life.
3. Easy to operate and easy to clean.
4. Be made of stainless steel, good shape and nice appearance.

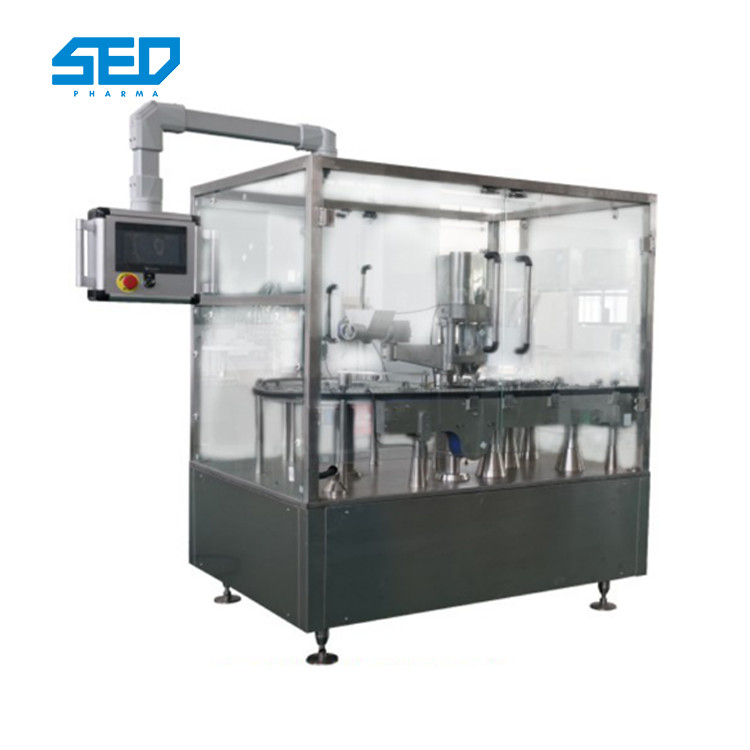

Product Show of Powder Filling Machine
Application of Powder Filling Machine
