Split Colloid Mill Homogenization Powder Granulator Machine For Chemical Industry

Split Colloid Mill Homogenization Powder Granulator Machine For Chemical Industry

  • High Light

    Homogenization Powder Granulator Machine

    ,

    Colloid Mill Powder Granulator Machine

    ,

    Split Type Powder Granulator Machine

  • Name
    Split Colloid Mill Homogenization Powder Granulator Machine For Chemical Industry
  • Emulsifying Fineness
    2-50um
  • Volume
    50L
  • Grinding Disc Diameter
    Ø140mm
  • Inlet Diameter
    Ø50mm
  • Outlet Diameter
    Ø12mm
  • Overall Dimension(mm)
    800*500*1110mm (L*W*H)
  • Machine Weight (kg)
    300kg
  • Place of Origin
    China
  • Brand Name
    SED Pharma
  • Certification
    CE
  • Model Number
    SED-140JM
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Wooden Case
  • Delivery Time
    50-60 Days after receiving the deposit
  • Payment Terms
    T/T,L/C, MoneyGram,Cash
  • Supply Ability
    30 Sets per month

Split Colloid Mill Homogenization Powder Granulator Machine For Chemical Industry

Split Colloid Mill Homogenization Powder Granulator Machine For Chemical Industry

Machine Parameters of Powder Granulator Machine

Model
SED-140JM
Emulsifying Fineness
2-50um
Volume
50L
Grinding disc diameter
Ø140mm
Inlet Diameter
Ø50mm
Outlet Diameter
Ø32mm
O.D. of cooling circulating joint
Ø12mm
Rotation Rate
2900 rpm
Motor Power
11kw (380V/220V 50Hz)
Overall Dimension(mm)
800*500*1110mm (L*W*H)
Machine Weight (kg)
300kg



Product Description of Powder Granulator Machine
Colloidal mill is a new-type equipment of wet type super micro grain processing, suitable foe the homogenization, emulsification, separation, smash and milling of various emulsions.


It widely used in foodstuff (fruit jam, juice, albumen milk, soy milk, milk tea, dairy, beverage,etc.), pharmacy, dairy chemical, chemical industry, emulsion asphalt, coal floating agent, ceramic glaze, nanometer material, etc.


The basic working principle of colloid mill is shearing, grinding as well as high-speed stirring applied force, grinding is finished depending on the relative movement of tooth-form slope, one of them rotates at high speed, while the other stays still to make materials that passing between tooth-form slopes receive great shear force and friction, and to grind, emulsify, smash, homogenize and mix them under complex forces such as high-frequency shake, high-speed vortex and others at the same time, so as to achieve the effect of fine and super micro.



Advantages of Powder Granulator Machine​


Colloid mill works with shearing, grinding high-speed stirring .Grinding process occurs in relative movement between the two teeth with one revolving in high speed and another still, which makes the material between the teeth receive strong shearing and abrasion in addition to high frequency vibration and high speed swirl.



The above forces effectively evenly disperse, emulsify, smash material. this is a new equipment that wet processes superfine grain. Which is used to homogen, emulsify, mix and smash various semi-liquids, liquids and late emulsion.

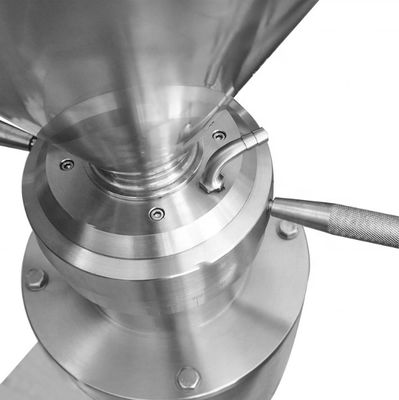

Products Show of Powder Granulator Machine

Split Colloid Mill Homogenization Powder Granulator Machine For Chemical Industry 0
