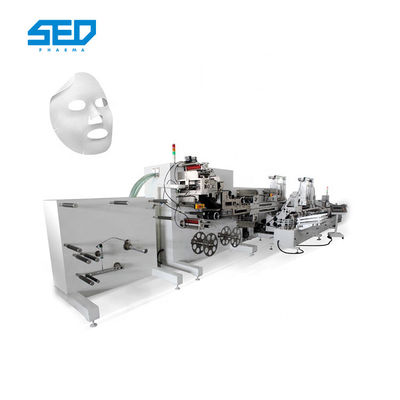

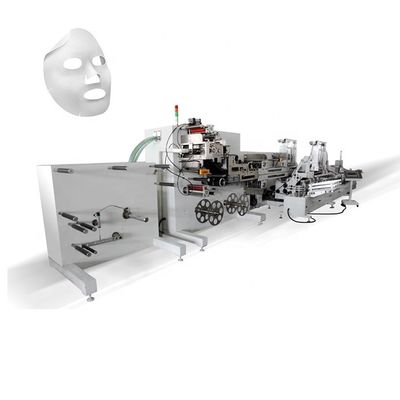

SED-400MZ 50-60 bags/Minute Facial Mask Packing 380V Automatic Packing Machine 2layers

SED-400MZ 50-60 bags/Minute Facial Mask Packing 380V Automatic Packing Machine 2layers

  • High Light

    380V Automatic Packing Machine

    ,

    GMP Automatic Packing Machine

    ,

    9.0Kw Auto Packaging Machine

  • Name
    SED-400MZ 50-60 Bags/Minute Facial Mask Packing 380V Automatic Packing Machine 2layers
  • Bag Size
    L: 80-200mm , W: 90-180mm (L*W)
  • Mask Unfolded Size
    L (230mm~260mm) W (230mm~260mm)
  • Production Speed
    50-60 Bags/Minute
  • Liquid Capacity
    0~60ml(Accuracy: ±10%)
  • Power Supply
    380V 50/60Hz Three Phase 9.0Kw
  • Machine Weight
    5000Kg
  • Machine Size
    L5800mm×W3100mm×H2200mm(based On Two Layers)
  • Place of Origin
    China
  • Brand Name
    SED Pharma
  • Certification
    CE
  • Model Number
    SED-400MZ

SED-400MZ 50-60 bags/Minute Facial Mask Packing 380V Automatic Packing Machine 2layers

SED-400MZ 50-60 bags/Minute Facial Mask Packing 380V Automatic Packing Machine 2layers

Product Description



Bag size
L: 80-200mm , W: 90-180mm (L*W)
Mask material
2layers: 20~60g/㎡ spun-lace non-woven +polypropylene nonwoven fabric/pearl film
1layers: 40-60g/m2 spunlace nonwoven or 100% cotton
10-58 ml *pump capacity is optional
Custom made is available
H (75mm~225mm) W (75mm ~200mm)
Packing Material
material roll,such as CPP,PE,BOPP compound film, aluminum foil, paper film
Mask material
10-60pouches/min(The speed depends on the product status and filling weight)
Roll Diameter
Inner roller Φ 75mm
1.Spunlace nonwoven max Φ1200mm( suggestion Φ800mm~1000mm)
0-300℃(adjustable)
2.Pearl film max Φ1200mm(suggestion Φ400mm)
380V 50HZ 3.5KW, Three Phase
3.Polypropylene nonwoven fabric max Φ1200mm(suggestion Φ800mm~1000mm)
0.25 m3/min
4. Max Roll Width 285mm
0.6Mpa
Mask unfolded Size
L (230mm~260mm) W (230mm~260mm)
Production Speed
50-60 bags/Minute
Liquid capacity
0~60ml(Accuracy: ±10%)
Air Consumption
700L/min
Power Supply
380V 50/60Hz Three phase 9.0Kw
Machine Weight
5000Kg
Machine size
L5800mm×W3100mm×H2200mm(based on two layers)


Facial Mask Packing Machine with Hopper(support both regular and irregular shape bags),Automatic under the bag, filling, sealing, coding and output.Contact with the material made of 316 stainless steel, it meet GMP standards.Fully automatic production efficiency, reduce labor costs



Feature

1.Automatic under the bag, filling, sealing, coding and output.
2.Contact with the material made of 316 stainless steel, it meet GMP standards.
3.Automatic detection function. No bag, no filling. No bag, no seal.
4.Digital temperature controller.
5.PLC touch screen control operation. You can easily set parameters on the touch screen.
6.Output and error information is clear and intuitive.
7.Configuration using world famous.
