Product Details:
|
| Name: | Automatic Packing Machine Automatic Linear Screw Bottle Capping Machine | Dimension(L*W*H): | 2160*1050*1900mm |
|---|---|---|---|
| Voltage: | AC220V 50Hz Single Phase | Production Capacity: | 120 Bottles/min |
| Automatic Grade: | Automatic | Keywords: | Capping Machine,automatic Capping Machine,capping Tightening Machine |
| High Light: | 1.8KW Automatic Bottle Capping Machine,120 Bottles/Min Automatic Bottle Capping Machine,500ml Automatic Bottle Capping Machine |
||

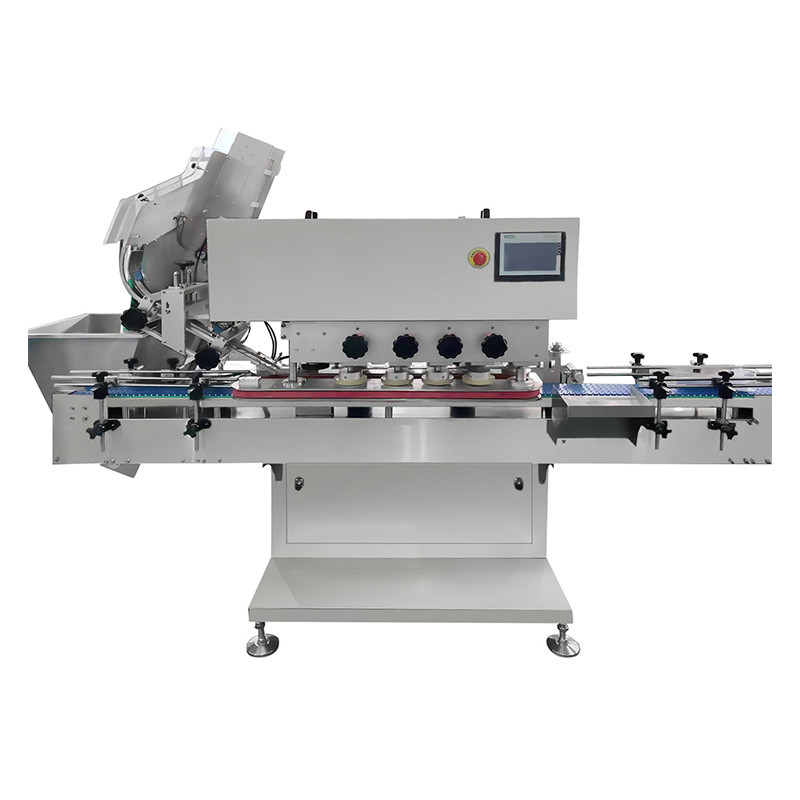

Automatic Packing Machine Automatic Linear Screw Bottle Capping Machine
Machine Introduction
SED-4CG Automatic Linear Screw Capping Machine is suitable for plastic and metal screw cap, which can handle a wide range of bottles without any change-parts for different bottle sizes. Our capping machine consists of two main components: the cap screwing unit and the cap feeding system with hopper. This capping machine is very ideal for application in Pharmaceutical, Food, Beverage, Cosmetic and other industries.
Working Principle
The operator pours caps into the hopper, and the cap elevator sorts and lifts the caps and conveys them to cap loading position through a feeding chute. The conveyor belt brings bottles forward continuously, and a bottle separation device controls the distance between bottles. When the bottle passes through the end of the cap feeding chute, a cap is automatically applied. Then a cap pressing head presses the cap into a horizontal angle, ready for future screwing. The machine has four pairs of constantly spinning wheels. These spinning wheels rotate to tighten the cap. The first pair of wheels rotate in the opposite direction to adjust the cap, ensuring higher accuracy of capping. After the cap is screwed, the aluminum foil detection device automatically detects the aluminum foil in the bottle cap, and if there is no aluminum foil, the bottle will be automatically rejected.
Machine Parameters of Bottle Capping Machine
| Model Name | SED-4CG |
| Application | Standard Screw Cap |
| Applicable Bottle Size |
Diameter: 20-120mm Height: 40-170mm |
| Applicable Cap Size |
Diameter ≤ 90mm Height ≤ 25mm |
| Capacity | 10-120 bottles/min |
| Voltage | AC220V 50Hz Single Phase |
| Power | 1.8KW |
| Air Consumption | 0.6Mpa 3L/min |
| Weight | 650kg |
| Overall Dimension (L*W*H) | 2160*1050*1900mm |
| Remark: Specification can be changed as per customer’s requirements. | |
Products Show of Automatic Packing Machine
