Product Details:
|
| Name: | Stainless Steel 3.6Kw Pharmaceutical Machinery Equipment | Material: | Stainless Steel |
|---|---|---|---|
| Pouch Width: | 80-250mm | Pouch Length: | 80-350mm |
| Packing Speed: | 50-60times/min | Power: | 3.6Kw |
| Gross Weight: | 700kg | Gas Consumption: | 0.3m3/min |
| Key Word: | Stick Packaging Machine | ||
| High Light: | 3.6Kw Pharmaceutical Machinery Equipment,60times/min Pharmaceutical Machinery Equipment,0.3m3/min Pharmaceutical Machinery Equipment |
||
Stainless Steel 3.6Kw Pharmaceutical Machinery Equipment
Product Overview of Stick Packaging Machine
Suitable for packing loose, non sticky granule material in the pharmacy(medicine), food, daily chemical and other industries, automatic packing into sachet with Measurement requirement, such as Chinese medicine infusion, coffee etc.
Crystalline materials as monosodium glutamate, white sugar, salt, etc. Small hot materials as Chinese patent drug, drug and much more.
Product Parameters of Stick Packaging Machine
|
Product Name
|
Multi Lanes Stick Packaging Machine
|
|
Material
|
stainless steel
|
|
Pouch width
|
80-250mm
|
|
Pouch Length
|
80-350mm
|
|
Packing speed
|
50-60times/min
|
|
Power
|
3.6 Kw
|
|
Gross Weight
|
700kg
|
|
gas consumption
|
0.3m3/min
|
Feature of Stick Packaging Machine
1. The machine with film automatic correction and damping mechanism, to ensure the straightness and tension stability of film, and make the pouch more smooth and beautiful.
2. Adaptability of the package film, the sealing temperature of machine is with automatic control, and has high control accuracy (± 1C °). Suitable for most complex film packing film in home and abroad, such as PET/AL/PE,PET/PE,NY/AL/PE,NY/PE and so on.
3. Extra functions Set up, for example, sachet cutting can choose dotted line knife or flat cutting knife, abnormal shape knife etc, and can choose different kinds of alarm requirement.
4. Advanced performance, high power, low noise, compact structure, operate steadily , easy to maintain, and has a long life span. Film sending mechanism can rotate with 90 ° in level, and add with film contacting mechanism, which make film change and maintain easier.
5. Adopt five shaft servo motor in step driver, man-machine interface touch adjustment, controlled by PLC, it is precise in automatic in step positioning.

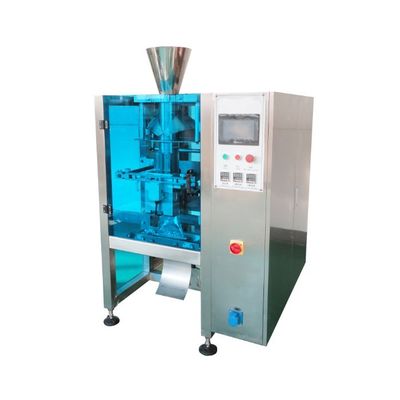

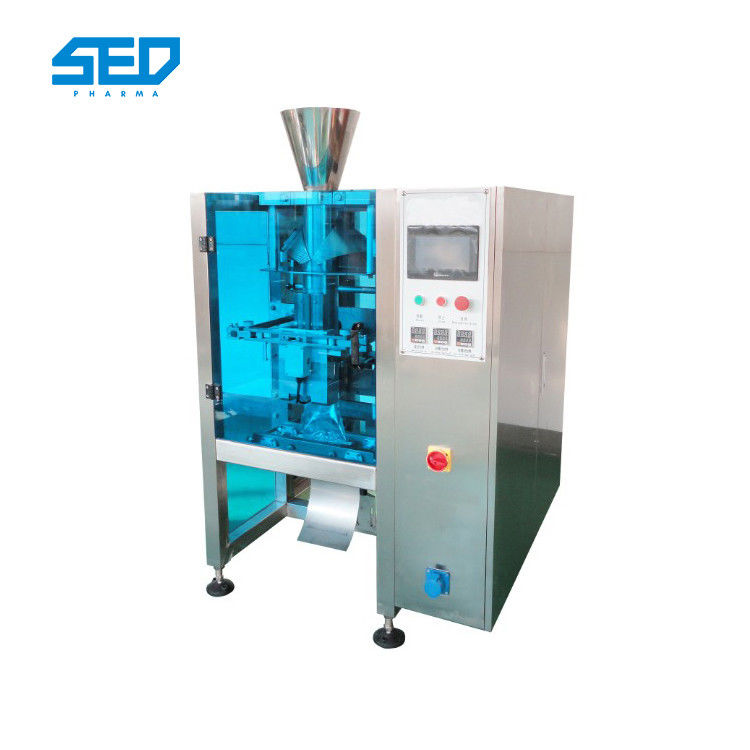

Show of Stick Packaging Machine
Application of Packing Machine
This machine is suitable for various kinds of materials like sugar, coffee granule, coffee powder, milk powder, and liquid, etc.
