SED-1200JD Automatic Powder Capsule Filling Machine High Precision Pharmaceutical Industry Use

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-1200JD
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 40 Working days after receiving advanced payment or original L/C
Payment Terms: T/T,L/C,Western Union, MoneyGram,Cash
Supply Ability: 30 Sets Per Month
Contact Now

Detail Information

Advantage: Bosch Copy Usage: Pharmaceutical Use
Warranty: 1 Year Condition: New
Weight: 1000kgs Noise: ≤75dB(A)
Dimension: 980x980x2100mm Speed: 1200 Capsules Per Minute
High Light:

capsule filling device

,

capsule filling equipment

Product Description

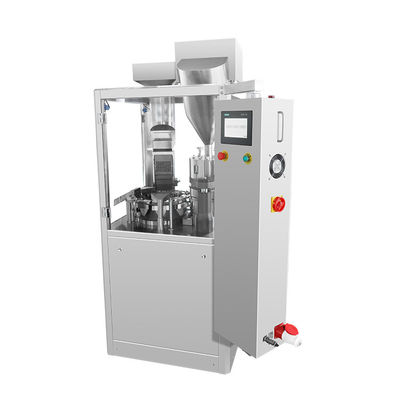

New Generation High Precision Automatic Capsule Filling Machine For Powder Filling





Product Overview:

This machine is a intermittent full automatic capsule filling machine with multiple tamping stations, precise design and stable performance. It can completes the following process: Feeding capsule, separating capsule, filling, rejecting defective capsule, closing capsule, discharging finished capsule automatically. It adopt closed rotary table. There are 9 holes in single row on the module. Function of machine reach international advanced standard, which also meet the requirement of “GMP” and CE standard. It’s absolutely the most ideal machine for producing capsule products.









SED-1200JD Automatic Powder Capsule Filling Machine High Precision Pharmaceutical Industry Use 0

SED-1200JD Automatic Powder Capsule Filling Machine High Precision Pharmaceutical Industry Use 1



Technical Parameters:

Model: SED-1200JD
Capacity 1200capsules/minute
Manchine suitable for: Capsule Size#00 to 5
Power supply: 380V 50Hz (it can be changed depend on your requirement)
Power consume: 7kw
Noise standard: ≤75dB(A)
Weight: 1000kgs
Overail dimension: 980x980x2100mm

Main Features:

1. SED-1200JD is our new product which is researched and developed in 2013, it solved a dosing error of all kinds of drugs and easy to move for cleaning the moulds.
2. It is with higher filling precision than the old one and can be only 2%-3% differences.
3. It is much easier to dismantle the moulds for this machine which saves a lot of human labor.
Specification

SED-1200JD Automatic Powder Capsule Filling Machine High Precision Pharmaceutical Industry Use 2SED-1200JD Automatic Powder Capsule Filling Machine High Precision Pharmaceutical Industry Use 3SED-1200JD Automatic Powder Capsule Filling Machine High Precision Pharmaceutical Industry Use 4



SED-1200JD Automatic Powder Capsule Filling Machine High Precision Pharmaceutical Industry Use 5SED-1200JD Automatic Powder Capsule Filling Machine High Precision Pharmaceutical Industry Use 6SED-1200JD Automatic Powder Capsule Filling Machine High Precision Pharmaceutical Industry Use 7
