Product Details:
|
| Name: | Small Automatic Pharmaceutical Capsule Filling Machine 380V 50Hz 3 Phase Motor | Model: | SED-NJP-1200 |
|---|---|---|---|
| Production Capacity(pcs/h): | 12500-20000 | Motor(kw): | 380V 50Hz 3 Phase, 4 Line 2.2Kw |
| Net Weight(kg): | 330 | Overall Size(mm): | 1200*700*1500 |
| Net Weight: | 1200Kg | Material: | Stainless Steel |
| Key Word: | Powder Capsule Filling Machine Automatic Capsule Filling Machine | ||
| High Light: | capsule filling device,capsule filling equipment |
||

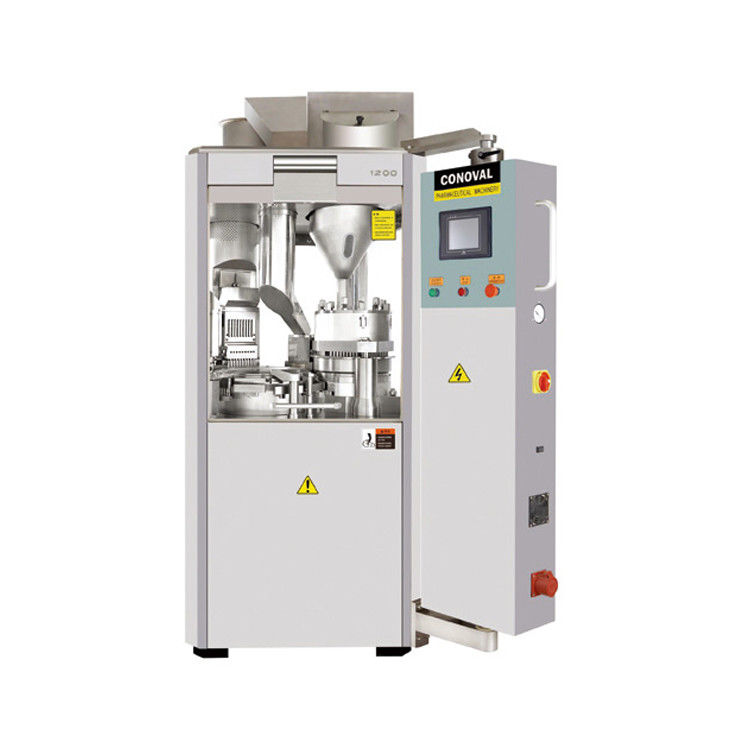

Small Automatic Pharmaceutical Capsule Filling Machine 380V 50Hz 3 Phase Motor
Product Description of Capsule filling machine
Fully automatic hard capsule filling machine is widely used in pharmacy, medicine, chemical industry (powder, pill, granule, pill), and can also be used for filling vitamins, food, veterinary drugs, etc.
1. Touch screen, PLC program control panel, LCD display.
2. The capsule vacuum positioning mechanism makes the qualified rate of capsules reach more than 99%.
3. Removable powder hopper for cleaning and easy adjustment of auger, easy to change filling weight.
4. The speed selection is convenient, and the length of the closed capsule can be adjusted.
5. Quick and accurate replacement parts setting, easy to disassemble the turntable and ring frame assembly.
6. Fully enclosed dosing station and turntable, which can integrate the entire capsule filling equipment.
7. The large-scale cam mechanism keeps the mold turntable and the whole equipment running in balance, which fully guarantees the machine to run with the highest precision and precision.
Product Parameters of Capsule filling machine
| Machine Model | NJP-400 | NJP-800 | NJP-1200 | NJP-1500 |
| Max. Output | 15000 Capsule/H | 48000 Capsule/H | 72000 Capsules/H | 90000 Capsules/H |
| Power Supply | 380V 50Hz 6.82kW | 380V 50Hz 6.82kW | 380V 50Hz 6.82kW | 380V 50Hz 6.82kW |
| Noise | <78dBA | <78dBA | <78dBA | <78dBA |
| Dimension | 1500×1040×1970mm | 1500×1040×1970mm | 1500×1040×1970mm | 1500×1040×1970mm |
| Net weight | 1200Kg | 1200Kg | 1200Kg | 1300kg |
Trait of Capsule filling machine
1. The split-type design of the capsule loading mechanism and the patented fully-enclosed structure prevent the capsules from improperly falling into the capsule transmission room and ensure the capsules to perform smoothly.
2. The patented powder filling mechanism includes several patented techniques like the irregular multi-surface powder keeper, the lateral angled feeder, etc., which makes the powder evenly distribute within the powder storage room, correctly and smoothly flow into the capsules, and achieves an extremely precise capsule filling process.
3. The patented modular punch as well as the bi-nodal feed hopper is of simple dismounting and with accurate positioning.

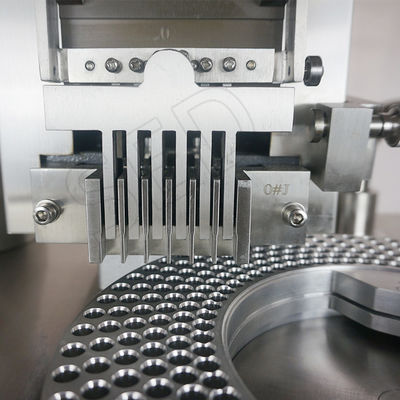

Product Show of Capsule filling machine
Application of Capsule filling machine
The automatic capsule filling machine is mainly used for filling powder or pellet capsule medicines in medicine, hospital preparation room, health care products and other industries.
