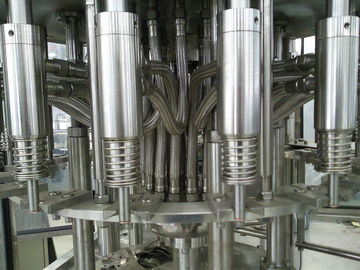

Auto E Liquid Filling Capping Washing Machine Stainless Steel Eye Drop Filler Capper 500ml

China Auto E Liquid Filling Capping Washing Machine Stainless Steel Eye Drop Filler Capper 500ml supplier
Auto E Liquid Filling Capping Washing Machine Stainless Steel Eye Drop Filler Capper 500ml supplier Auto E Liquid Filling Capping Washing Machine Stainless Steel Eye Drop Filler Capper 500ml supplier Auto E Liquid Filling Capping Washing Machine Stainless Steel Eye Drop Filler Capper 500ml supplier Auto E Liquid Filling Capping Washing Machine Stainless Steel Eye Drop Filler Capper 500ml supplier Auto E Liquid Filling Capping Washing Machine Stainless Steel Eye Drop Filler Capper 500ml supplier

Large Image :  Auto E Liquid Filling Capping Washing Machine Stainless Steel Eye Drop Filler Capper 500ml

Product Details:

Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-WFC

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 30 Sets per month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40 working days after receiving the deposit
Contact Now
Detailed Product Description
Capacity: 36000BPH(500ML) Washing Head: 80pcs
Filling Head: 80pcs Capping Head: 18pcs
Main Power: 15kw Filling Valve Flow: 120~150ml/s



Product Description

Bottle feeding, filling and plug putting are on dual rails; linear bottle feeding; liquid level filled can be tracked and controlled by stainless steel valve to ensure there is no adherent liquid and dropping liquid; detect with optical fiber; plug putting by cylinder; stop putting inner plug with no bottles there; percent of pass of putting plug is high.








Capacity 36000BPH (500ml)
Bottle Height 120~310mm
Bottle Diameter ф50~ф96mm
Mouth Diameter 26mm~40mm
Bottle Type PET bottle
Cap HDPE Cap
Washing Head 80pcs
Washing Time >2second
Filling Heads 80
Filling Temperature 85-90℃
Filling Pressure 0.2~0.4Mpa
Filling Valve Flow 120~150ml/s
Filling Pipe SUS304, High temperature affordable
Capping Head 18
Capping Strength 0.6~2.8Nm(adjustable)
Main Power 15 KW
Air Consumption 1m 3/min(0.6MPa)
Sterilized Water Consumption 1.2m3/h(0.2-0.25Mpa)

Feature

  1. Compact conformation, good shape, cozy operation, excellent automaticity and poor labor intensity.
  2. Only exchanging “star wheel”, ”feeding screw” and “arc guide plate” while exchanging model of bottle to be need.
  3. The all parts directly contacted with media are all adopted with food stage stainless steel without dead angle, so they can be cleaned easily.
  4. Adopting advanced valve to control the inlet flow rate of liquids. It can keep the slight turbulence of liquids level in the solution barrel and ensure the accuracy in filling.
  5. Closing feeding valve automatically while no bottle on machine avoiding the loss of aqueous feet. Filling automatically with a high speed and the control of liquids level is accurate.
  6. High filling speed and mass flow rate, high precision of filling valve and control of liquids level is accurate and without loss.
  7. The “capping head” is adopted magnetic-constant-torque device to ensure the high capping quality and without damages.
  8. Adopting efficient cap settling system which carried perfect cap feeding and protection device.
  9. It is adopted spiral descent fashion for the support plate for bottom of bottle at the outlet thumb wheel. And to adjust the input height is not necessary for exchanging model of bottle.
  10. Carried the perfect protection system to overload; it can be used to protect facilities and operators efficiently.
  11. Because of applying touch screen for operation, it is possible to realize man-machine conversation whereas the status of device running is clear at a glance.

The primary electric components such as touch screenPLCtransducer etc. are all adopted with world famous products.


Our Service



Auto E Liquid Filling Capping Washing Machine Stainless Steel Eye Drop Filler Capper 500ml Auto E Liquid Filling Capping Washing Machine Stainless Steel Eye Drop Filler Capper 500ml Auto E Liquid Filling Capping Washing Machine Stainless Steel Eye Drop Filler Capper 500ml

Working worker                   High quality                         Skillful manufacture

Quality determines everything.             Soft fire makes sweet malt.                     High degree of customer trust.

Packing & Delivery

Auto E Liquid Filling Capping Washing Machine Stainless Steel Eye Drop Filler Capper 500mlAuto E Liquid Filling Capping Washing Machine Stainless Steel Eye Drop Filler Capper 500mlAuto E Liquid Filling Capping Washing Machine Stainless Steel Eye Drop Filler Capper 500ml


FAQ

Q1:Are You A Factory or A Trading Company

A: We Provided Perfect OEM and After-sale Service.

Q2:Where is Your Factory? How Can I Visit Your Factory?

A:Our Factory is Located on HangZhou Zhejiang Province. We Are Warmly Welcom You Visit Our Factory if You Have a Travel Plan

Q3:Can You Send Me the Video To Show The Machine Works?

A:Certainly, We Have Made Video of Every Machine

Q4:How Can I Know Your Machine Is Designed For My Product

A:You Can Send Us Samples of Your Product and We Test It On Machine


Q5:How Can I Pay My Order?

A:Usually We Accept L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash Paying Methods

Q6:Do you Have a Ce Certificate?

A:For Every Model of Machine, It Has a CE Certificated

Q7:What about install?

A. Our engineers will be sent according to your project.However,the customer will pay the economic air tickets round trip and arrange the accommodation for them.
