Product Details:
|
| Name: | Big Round Bottle Automatic Sticker Labeling Machine With Ribbon Coding Printer | Power Supply: | 220V 50HZ Single Phase(Customized) |
|---|---|---|---|
| Speed: | 50-230 Bottles Per Minute | Label Accuracy: | ±1 Mm |
| Driven Motor: | Stepping Motor | Material: | Stainless Steel |
| Dimension: | 1800(L)×700(W)×1270(H) Mm | Key Word: | Automatic Sticker Labeling Machine |
| High Light: | automatic labeling equipment,sticker labeler machine |
||

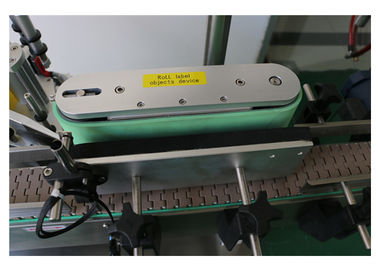

Big Round Bottle Automatic Sticker Labeling Machine With Ribbon Coding Printer
Function Characteristics of Labeling Machine
1) Control system: Use SIEMENS brand PLC control system, with high stable operation and extremely low failure rate.
2) Operation system: The man machine control 7 inch touch screen, directly visual interface easy operation, rich with help function and fault display function.
3) Check system: Use German LEUZE check label sensor, automatic check label station, stable and convenient don’t have much higher requirement for worker.
4) Send label system: German Avery labeling engine control system, stable with high speed.
Product Parameters of Labeling Machine
| Model | SED-YDT |
| Capacity (pcs/min) | 20-230 |
| Driving Mode | German Avery Labeling engine |
| Labeling accuracy | ±1mm |
| Labeling Speed(m/min) | ≤35 |
| Label Specification | adhesive sticker, transparent or opaque |
| Suit bottle size | Can customized |
| Suit label size | Height 20-160mm Length 25-300mm |
| The inner diameter or label roll | 76mm(min) |
| The outer diameter of label roll | 350mm(max) |
| Power | 550w |
| Voltage | can customized, 110V/220V/380V |
| Machine size | 1800x80x1500mm |
The Scope of Application
The model SED-YDT Labeling machine suit for differnet size round shape products, such as bottle, jars ,cans in food, medicine, daily chemical and other light industries.
Products Show of Labeling Machine
Application of Labeling Machine
