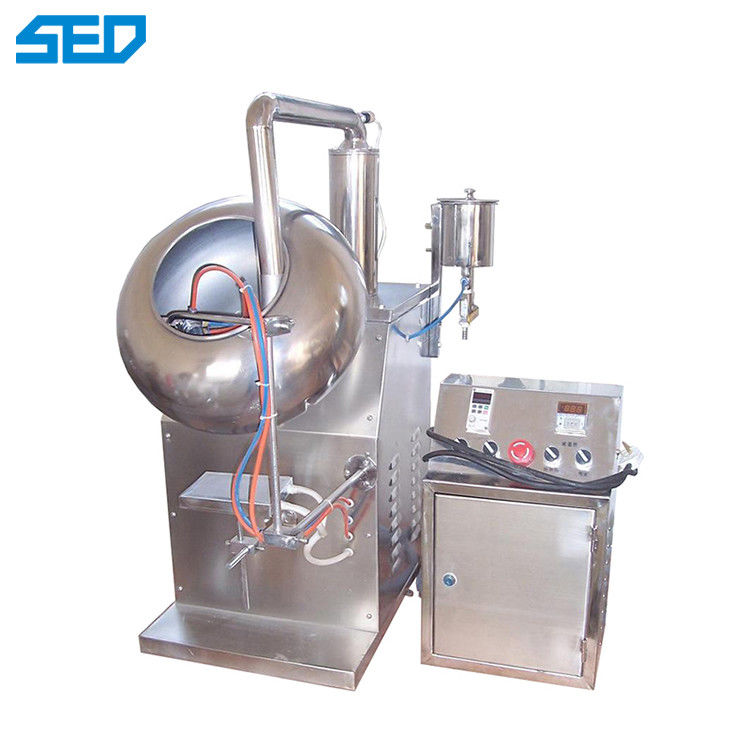

Mini Tablet Peanut Sugar Drum Chocolate Coating Machine For Pill Automatic

Mini Tablet Peanut Sugar Drum Chocolate Coating Machine For Pill Automatic

  • High Light

    sugar coating machine

    ,

    pharmaceutical coating machine

  • Name
    Mini Tablet Peanut Sugar Drum Chocolate Coating Machine For Pill Automatic
  • Dia. Of Sugarcoating Dish Mm
    300/400/600/800/1000
  • Motor Kw
    0.55/0.55/0.75/1.1/1.1
  • Net Weight Kg
    46/52/120/180/230
  • Place of Origin
    China
  • Brand Name
    SED Pharma
  • Certification
    CE
  • Model Number
    SED-250P
  • Payment Terms
    T/T,L/C, MoneyGram,Cash

Mini Tablet Peanut Sugar Drum Chocolate Coating Machine For Pill Automatic

Mini Tablet Peanut Sugar Drum Chocolate Coating Machine For Pill Automatic

main parameter



ITEM TYPE
BY300(A) BY400(A) BY600 BY800 BY1000
Dia. of Sugarcoating Dish mm 300 400 600 800 1000
Roataion Speed of Sugarcoating Dish r/min 46/5-50 46/5-50 42 30 30
Production Capacity kg/time 2 5 15 36 45
Motor kw 0.55 0.55 0.75 1.1 1.1
Overall Size mm 520*360*650 540*360*700 780*580*1140 980*800*1480 1070*1000*1580
Net weight kg 46 52 120 180 230



Product description



This machine is mainly used in the coating ,glazing ,granulation of the pharmacy trade ,it can also be used to ball object mould shape make in food and chemical industry trade.



In order to improve level and property of coating equipment to satisfy the needs of user.Our company design,manufacture install coater as GMP request based on original one.Inner pot with diversion board and automatic spray liquid system .It can adjust temperature and speed.The machine has advantage of not pollution.easy to clean and to maintain,low cost.



This coating pan is made of stainless steel , the complete machine transmission is steady ,performance is reliable .it is convenient to wash and maintain ,thermal efficiency is high ,it can produce the technological requirement and regulate coating in one pot of angles at the same time, and is easy to use .it is the ideal equipment in the trade as medicine ,food ,chemical industries ,etc.



This machine can increase the step less speed regulation according to users enquiry ,wrap up such systems as the outer cover and gushing out liquid ,hot wind ,dust removal ,etc.



main features



1. Adjustable tilt angle

2. Can be used with frequency converter and dust removal system

3. The product runs sm
