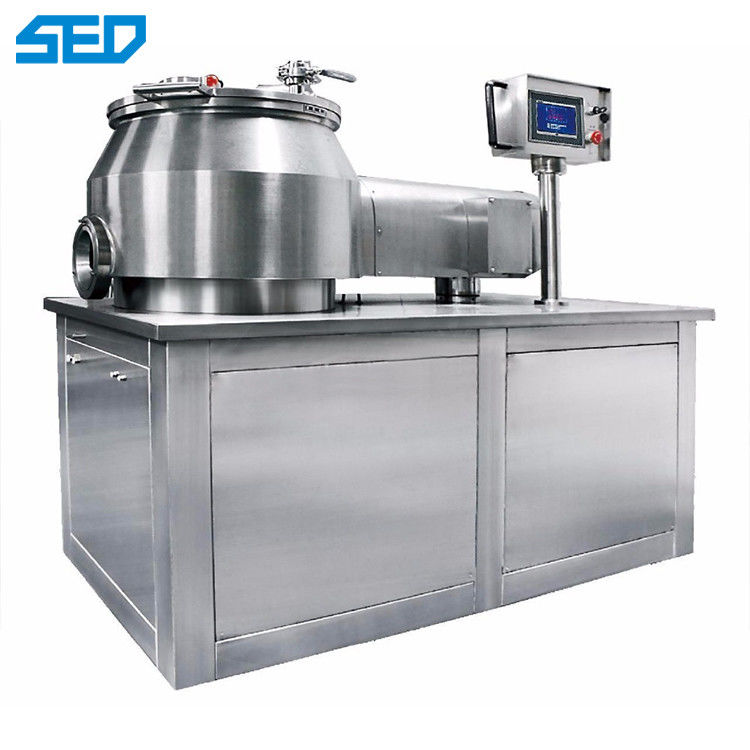

High Speed Wet Mix Granulator Machine For Tablet Capsule Low Sugar Herb Medicine

High Speed Wet Mix Granulator Machine For Tablet Capsule Low Sugar Herb Medicine

  • High Light

    granulator machine for pharmaceuticals

    ,

    pharmaceutical granulation equipments

  • Name
    High Speed Wet Mix Granulator Machine For Tablet Capsule Low Sugar Herb Medicine
  • Rotation Speed Of Cutter (rpm)
    50-3000
  • Place of Origin
    China
  • Brand Name
    SED Pharma
  • Certification
    CE
  • Model Number
    SED-250P
  • Payment Terms
    T/T,L/C, MoneyGram,Cash

High Speed Wet Mix Granulator Machine For Tablet Capsule Low Sugar Herb Medicine

High Speed Wet Mix Granulator Machine For Tablet Capsule Low Sugar Herb Medicine
Wet Mix Granulator Machine Main Parameter

ModelHLSG-50HLSG-100HLSG-250HLSG-300HLSG-400HLSG-600
Load Capacity (L)12-3525-7080-120130-180150-280200-400
Time of Granulating /BatchMixing: 2 mins Granulating : 7-14 mins/batch
Rotation Speed of Stirring Paddle (rpm)25-50030-25030-25030-22030-20030-200
Power of Stirring Paddle Motor (KW)5.57.51518.52230
Rotation speed of cutter (rpm)50-3000
Power of cutter Motor (KW)1.5347.57.511
Overall size (L*W*H) (mm)1530*620*16201720*980*17501820*1020*19002150*1100*19802200*1400*21002650*1550*2550
Height of discharge outlet(mm)78092092098010501100
Weight of machine (KG)4008001200150020003600



Wet Mix Granulator Machine Product Description

Applied in trades such as pharmaceutical trade, chemical trade as well as food trade etc, more exactly shown as follow: Mixing of powder and powder, Granulation of powder and bond.

Wet Mix Granulator Machine Working Principle:
1) The process consists of two programs including mixing and granulating.
2) Powder metrical can be charged into the material pan from the conical hopper and continue to rotate in the container under the action of mixing blade once the hopper is closed.

In the meanwhile, all materials grow up the shape of liquid bridge under continuous effects of conical tank wall. Under the action of extrusion, friction as well as crumb by blade and conical tank wall, all material is gradually turn for loosen. At last , while opening the hoper outlet, waterish particles are pushed off under the centrifugal effects of blade.
3) These soft particles are formed not dependent on forced extrusion effects, more exactly; mainly these small and uniform particles are formed after continuous cutting under the simile-liquid state. in all, this machine can realize the mutual transformation between different materials.

main features
1) With consistent programmed technology ( man-machine interface if option selected ) , the machine can get assured of stability in quality, as well as easy manual operation for convenience of technological parameter and flow progress.
2) Adopt frequency speed adjustment to control the stirring blade and cutter, easy to control the size of particle.
3) With the rotating shaft hermetically filled with air, it can prevent all dust from compact.
4)With a structure of conical hopper tank, all material can be in uniform rotation.The tank is laid with an interlayer on the bottom, in which water cooling circulation system featuring higher thermostatic performance than air cooling system is furnished, which leads to improve the quality of particles.

5)With automatic lifting of the pan cover, the tank outlet matching with drying device, self-equipped arm-ladder, it is easy to operate.
6)Mouth of material outlet has changed Into arc-shaped, avoiding up dead spaces.
