Product Details:
|
Name: | Linear Double Head Powder Filling Machine | Material: | Stainless Steel |
---|---|---|---|
Production Capacity: | 20-40 Bottles/min | Applicable Specifications: | Customized |
Power Supply: | 380V/220V 60HZ Or Customized | Air Pressure: | 0.6~0.8Mpa |
Weight:: | 500KG | Size:: | 2400*1200*2300mm |
Key Word: | Powder Filling Machine | ||
Highlight: | Linear automatic powder filling machine,Double Head automatic powder filling machine,Stainless Steel automatic powder filling machine |

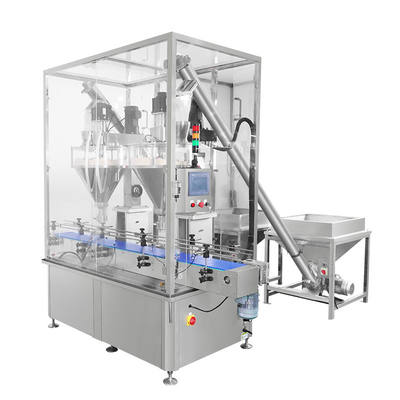

Product Description of Powder Filling Machine
This powder filling machine is designed according to national GMP standards and can be combined with equipment such as bottle sorting machines, capping and capping machines, labeling machines, etc. to form an assembly line.
Suitable for packaging powdered materials in industries such as food, medicine, and daily necessities. Such as milk powder, glucose, protein powder, cocoa powder, coffee powder, Rice noodles, solid drinks and other powder and ultra-fine materials.
The entire machine frame is made of stainless steel, and well-known brands are selected for motors, cylinders, electrical accessories, pneumatic components, etc., which can also be specified by customers. Can be applied to food, medicine, and corrosive chemical raw materials.
Centralized dust removal, no dust pollution in the workshop, easy cleaning of residual materials, and can be rinsed with water.
1. All stainless steel structure, modular transparent material box, easy to disassemble and wash without tools.
2. High precision servo motor control filling, precise measurement.
3. Various product parameter adjustment formulas can be stored for future use.
4. Replacing spiral attachments can adapt to various materials ranging from ultrafine powder to small particles.
5. Touch screen PLC control, no filling without bottles.
Product parameters of Powder Filling Machine
Item.No | SED-2FGJ |
Capacity | 20-40 bottles/min(or Customized) |
Applicable Specifications | Customized |
Filling Head | Two Heads |
Accuracy | ±1% |
Power Supply | Customized |
Size | L2400×W1200×H2300mm |
Weight | 500kg |
working principle of Powder Filling Machine
The main working principle of the equipment is to use the servo motor to control the number of driving turns of the screw for powder feeding, so as to accurately control the dispensing of the raw material medicine powder into the antibiotic glass bottle according to the specified capacity.
It uses the bottle unscrambler turntable to send bottles, screw sub-packaging, vibrating plate automatic plug-arranging and other processes; its main structure is composed of bottle in and out mechanism, screw sub-packaging head, cam gap mechanism, transmission mechanism in the box and control system.
Feature of Powder Filling Machine
This machine has a high degree of automation, less land occupation and higher production efficiency; the machine has a reasonable design and compact structure, which is easy to operate and maintain.
The transparent plexiglass is closed to prevent the pollution of the external environment.
The design adopts mechatronics, and the lower powder screw is driven by the motor, so as to accurately control the required range of the screw rotation for the measurement.
The high-precision cam divider controls the tooth-shaped dial for accurate positioning, sub-assembly, reasonable design of the whole machine, reliable and stable operation, simple operation, high degree of automation, and convenient disassembly, which is convenient for cleaning of key parts, and fully meets the requirements of GMP specifications.
