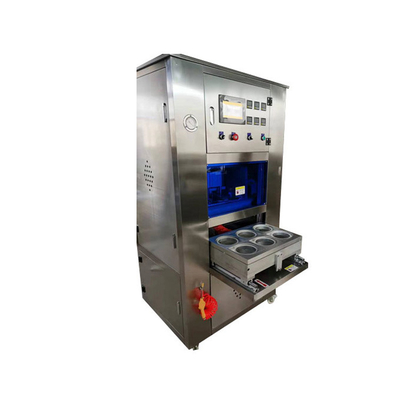

1200 Cups/H Automatic Vacuum Sealing Machine with 115mm Diameter for Stainless Steel Containers

Large Image : 1200 Cups/H Automatic Vacuum Sealing Machine with 115mm Diameter for Stainless Steel Containers

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-8ZKF-B

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Wooden Case
Delivery Time:	35 Days after receiving the deposit
Payment Terms:	T/T,L/C,MoneyGram,Cash
Supply Ability:	30 Sets per month

Contact Now

1200 Cups/H Automatic Vacuum Sealing Machine with 115mm Diameter for Stainless Steel Containers

Description

Name:	Automatic Vacuum Sealing Machine	Capacity:	1200cups/h(8 Cups At A Time)
Cup Size:	Diameter 115mm, Height 80mm	Power:	220V/50Hz 5KW
Working Air Pressure:	0.6-0.8Mpa	Dimension(lwh):	9008501600mm
Weight:	350kg	Key Word:	Vacuum Packaging Machine，vacuum Seal Machine
Highlight:	Stainless Vacuum Automatic Packing Sealing Machine , 1200 Cups/h Automatic Packing Machine , Diameter 115mm Automatic Packing Machine

1200 Cups/H Automatic Packing Vacuum Sealing Machine Stainless Steel Diameter 115mm

Product Overview

The Automatic Vacuum Sealing Machine is a high-performance, fully automatic vacuum sealing machine designed for plastic cups and containers. It integrates vacuuming, sealing, and film cutting into one efficient process. Built with premium brand components, it ensures long-term reliability and is ideal for the food, pharmaceutical, and chemical industries that require superior seal integrity.

Product Parameters

Model	SED-8ZKF-B
Capacity	1200 cups/h (8 cups at a time)
Cup size	Diameter 115mm, height 80mm
Power	220V/50Hz 5KW
Working air pressure	0.6-0.8Mpa
Body material	Stainless steel
Weight	350kg
Dimensions (LWH)	9008501600mm

Operational Process

Manual cup loading

→ Automatic vacuuming

→ Automatic sealing & film cutting

→ Automatic film winding (with pattern alignment)

→ Manual cup unloading

Core Configuration (Brand Assurance)

Control System: Omron PLC (Japan) + WEINVIEW Touch Screen (Taiwan)
Key Components: AirTAC pneumatic components, Schneider AC contactor
Vacuum System: Zhongde Vacuum Pump (Shanghai)
Actuators: LPG-MOTOR film winding motor, JELPC solenoid valve, etc.

Warranty & Service

Warranty Period: 2 years for the main machine, lifetime maintenance support (Excludes misuse and consumables)
Technical Service: Free remote support; lifelong spare parts and repair services available after warranty.
