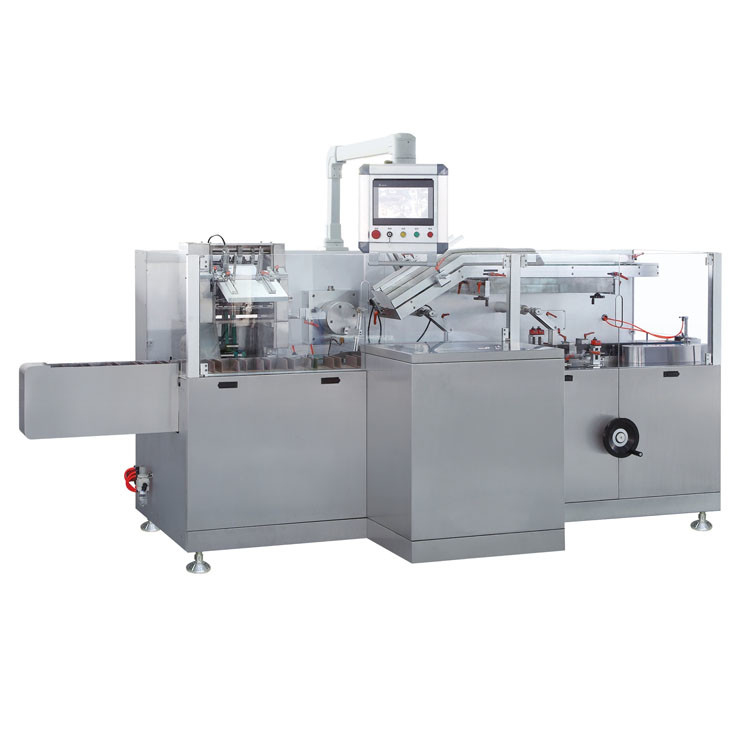

Fully Automatic Continuous Cartoning Machine 30-100 Carton / Min

Fully Automatic Continuous Cartoning Machine 30-100 Carton / Min
Fully Automatic Continuous Cartoning Machine 30-100 Carton / Min

Large Image :  Fully Automatic Continuous Cartoning Machine 30-100 Carton / Min

Product Details:
Place of Origin: China
Brand Name: SED Pharma
Certification: CE
Model Number: SED-180GZH-A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 40 Days after receiving the deposit
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 30 Sets Per Month

Fully Automatic Continuous Cartoning Machine 30-100 Carton / Min

Description
Name: Fully Automatic Continuous Cartoning Machine 30-100 Carton/min Weight: 1750kg
Speed: 30-100 Carton/min Work Pressure: ≥0.6mpa
Air Consumption: About 120-180L/min Supply: 380V 50HZ
Main Motor Power: 4.5kw Dimension (L×W×H): 3650㎜×1560㎜×2040㎜
Quality Requirement: 60-70g/㎡ Key Word: Automatic Cartoning Machine,Automatic Box Cartoning Machine
High Light:

Fully Automatic Continuous Cartoning Machine

,

100 Carton / Min Continuous Cartoning Machine

,

30 Carton / Min Continuous Cartoning Machine

Fully Automatic Continuous Cartoning Machine 30-100 Carton/min



Product Description of Automatic Cartoning Machine

SED-180GZH-A automatic continuous cartoning machine is a self-innovated model developed by our company on the basis of a number of advanced technologies at home and abroad, and is manufactured in strict accordance with the "GMP" requirements of the pharmaceutical industry.



Features of high stability, simple structure, and easy-to-understand operation; manual automatic folding and transmission, carton suction forming, multi-station servo follow-up feeding mechanism, and related technologies have reached industry advanced standards; concise appearance design and multi-station servo.



The structure of the follow-up pushing material makes the operation and maintenance more convenient; the outer ring of the dual-station planetary wheel opens the box outwards and has a pre-forming device to ensure that the carton is fully opened and formed.


This machine is a fully automatic continuous cartoning machine, a high-performance product integrating machine, light, electricity, and gas. It is suitable for automatic processing of aluminum-plastic blister plates, bottles, hoses, soft double aluminum, bag-like items, etc. It can be packed in boxes, and can be matched with them to form a packaging production line.



Carton opening mechanism: This mechanism adopts double-station planetary wheel outer ring to open the box outwards. The advantage of the inward movement with similar models is that when the carton size is wider, it will not collide with each other. This mechanism also has pre-formed Device to ensure that the carton is fully expanded and formed.



Technical Data of Automatic Cartoning Machine

Speed

30-100 carton/min

Quality requirement

250-350g/㎡

Work pressure

≥0.6mpa

Air consumption

About 120-180L/min

Supply

380V 50HZ

Main motor power

4.5kw

Dimension (L×W×H)

3650㎜×1560㎜×2040㎜

Net weight

About 1750kg



Application of Automatic Cartoning Machine



This machine is suitable for automatic feeding product of multi-variety multi-specifications into carton (either for blister or bottle).
Adjust automatic feeding structure conveniently,setup quantity of blisters on touch screen randomly.


On line product feeding and detecting,leaflet fold(1-4folds) and feeding,leaflet detecting,canton opening and forming,products and leaflet pushing into carton,printing batch number,sealing carton with tuck-in or hot melt glue device.


Automatically reject lacking of leaflet or prodcut and finished product out.



Features of Automatic Cartoning Machine



(1) No products do not suck leaflet. Not leaflet does not suck carton.


(2) When there is no product or the product supply is not in place, the machine will idle without pushing the product. When the product is restored to supply, it will run automatically, and the product will stop automatically when the product is not in place;


(3) Automatic shutdown without carton, automatic shutdown without leaflet for multiple consecutive times;


(4) Low compressed air and vacuum negative pressure shutdown alarm.


(5) The multi-station servo pushing mechanism can save the front operation space of the machine, and make the operation and maintenance of the machine more convenient;


(6) A very simple product specification change can be made through the dial scale handwheel;


(7) The main drive and the paper folding machine drive are equipped with high-sensitivity overload protection devices to ensure the safety of machines and personnel;


(8) Servo blanking system: The blanking device adopts the swing tracking method to blank; compared with the similar fixed blanking device on the market, it has faster speed and more accurate blanking; it can load one piece of material at a time or multiple pieces of material to the material at a time In the trough of the conveyor chain plate.


(9) The main motor, PLC, inverter, servo motor, operation panel, sensor, relay, contactor, and pneumatic components are all internationally renowned brands;


(10) Digital display production speed, automatic fault prompt and solution method, overload alarm and product count.



Show of Cartoning Machine

Fully Automatic Continuous Cartoning Machine 30-100 Carton / Min 0




Application of Cartoning Machine

This product is suitable for packing aluminum plastic blister cards, medicine bottles, cosmetics, poker, electronics and daily necessities.

Fully Automatic Continuous Cartoning Machine 30-100 Carton / Min 1


Fully Automatic Continuous Cartoning Machine 30-100 Carton / Min 2Fully Automatic Continuous Cartoning Machine 30-100 Carton / Min 3Fully Automatic Continuous Cartoning Machine 30-100 Carton / Min 4Fully Automatic Continuous Cartoning Machine 30-100 Carton / Min 5Fully Automatic Continuous Cartoning Machine 30-100 Carton / Min 6
