Product Details:
|
| Name: | Suppository Production Line Liquid Filling Machine With Automatic | Commodity: | Suppository Line |
|---|---|---|---|
| Model: | SED-14QSJ-A | Capacity: | 18,000—23,000 Pcs/h |
| Volume: | 0.5-5g | Deviation: | <±2% |
| Film: | PVC\PE (thickness0.15mm) | Tank Volume: | 70L |
| Overall Dimensions: | L4,142mm×W3,600mm×H2,150mm | Working Power: | 3 Phase 380V |
| High Light: | Automatic Suppository Production Line,Liquid Filling Suppository Production Line,Suppository Production Liquid Filling Machine |
||

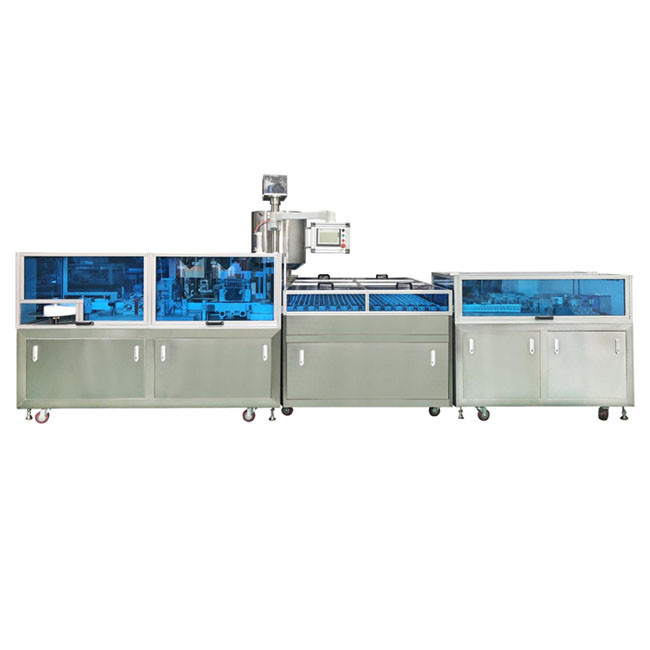

Suppository Production Line Liquid Filling Machine With Automatic
Machine Parameters of Suppository Filling Machine
|
Commodity |
Automatic suppository production line |
|
Output |
18,000—23,000 pcs/h |
|
Dosage allowed |
＜±2% |
|
Stirring tank capacity |
70L |
|
Working voltage |
3 phase 380V |
|
total power |
9.5KW |
|
Machine Weight |
9000kg |
|
Overall dimensions |
L:4142mmxW:3600mXH:2150mm |
Product Description of Suppository Filling Machine
SED-14QSJ Automatic Suppository Production Line is suitable for the products of special shape such as bullet head, torpedo shape and duck bill. (Also can customize according to your specifications)
Advantages of Suppository Filling Machine
The equipment adopts PLC programmable control and man-machine interface operation, easy operation, convenient adjustment, accurate temperature control and smooth operation.
The temperature sensor and microcomputer control system are used to realize high precision thermostatic control.
The liquid storage tank is made of 316L stainless steel, with proper volume, heat preservation and heating function, and accurate temperature control; the tank is equipped with a mixing device to ensure the homogeneity of the liquid in the VAT at any time.
The reservoir can be connected with the filling mechanism through the pipe, and the liquid can be kept in circulation to ensure the fluidity of the liquid and satisfy the demand of filling.
The insertion type linear perfusion mechanism can be used to locate accurate, not dropping, and not hanging wall; The single-grain measurement is 0.5-5ml and the filling error is ±2%.
Continuous cooling design, the post-infusion suppository shell can be fully cooled and the liquid solid transformation is realized.
Continuous strip, continuous sealing, sealing process batch number self-printing; The seal should be well sealed, with neat appearance and good value of not less than 99.99%.
Products Show of Suppository Filling Machine
